Home > Products > Long Screw/Rivet/Bolt/Stud Sorting > Automatic RK-1300 Customized Rotary Disk Automated Screws Optical Inspection Machine Visual Sorting Equipment
Automatic RK-1300 Customized Rotary Disk Automated Screws Optical Inspection Machine Visual Sorting Equipment
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Automatic Professional RK-1300 Customized Rotary Disk Optical Sorting Equipment Long Screw Visual Inspection Machine
-
Automatic RK-1300 Rotary Disk Screw Eddy Current AOI Optical Sorting Machine For General Fasteners Car Fastener Defect Measuring
-
RK-1300 Customized Rotary Disk Automotive Screws Optical Inspection Machine Visual Sorting Equipment
-
Customized Rotary Disk Automated Screws Optical Inspection Machine RK-1300 Visual Sorting Equipment
-
Automatic Optical Inspection Machine For Car Fastener Dimension Checking AOI Equipment
-
Automated RK-1300 Customized Rotary Disk Screws Optical Inspection and sorting Machine
Product Description
Automatic RK-1300 Customized Screws Visual Sorting Equipment
Types: RK-1300 Rotary Disk Optical Sorting Machine

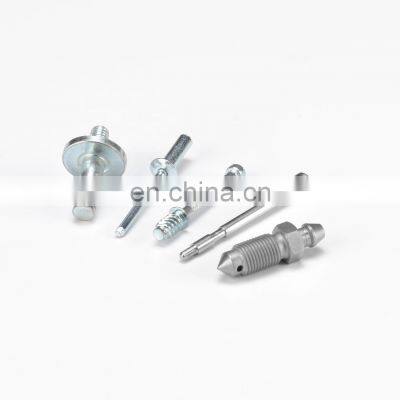

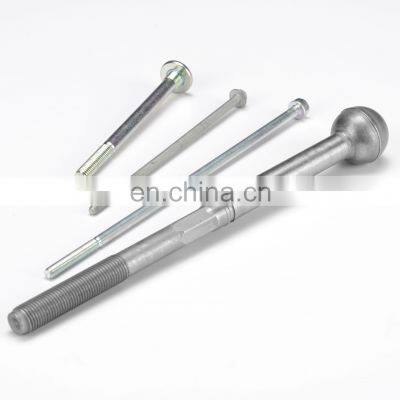

Suited for: Bolts, Screws, Spindles, Threaded Pins etc.Inspection Screen

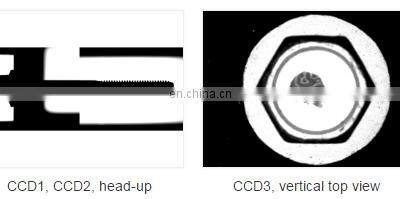

The machine comes equipped with three industrial cameras.
Camera 1 and Camera 2 are Level head-up cameras used for inspecting the multi-segment height and outer diameter of the product.
Camera 3 is a vertical top view camera used for inspecting the oppositediagonal, angle, head outer diameter, head deformation and other features of the products.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:
1. Can be customized based on its standard type or large type.
2. Machine detect screw, rivet and other products that can not stand stably but can be
2. Machine detect screw, rivet and other products that can not stand stably but can be
suspended.
3. Designed for general screw size. It can inspect screws with lengths ranging from 5 to 50 mm.
4. Equip the machine with eddy current probe could inspect with or without heat-treatment, mixed material and distinguish size and heat treatment good or not,etc.
4. Equip the machine with eddy current probe could inspect with or without heat-treatment, mixed material and distinguish size and heat treatment good or not,etc.
Inspection Items:
Diameter, Hole diameter | Roundness |
Length | With coating |
Width | With mark |
Height, Thickness | With cut/tapering |
Surface defect | Parallel edge length |
Deformed, Broken | Broken pin, Recess depth |
Different shape | With thread |
Crack | Fine or coarse thread |
Burrs, Chips | Tooth numbers |
Across Corners | Pitch |
Across Flat | Slanted thread |
Chamfer angle | Minor diameter |
Included angle | Major diameter |
Arc radius | Hardness |
Concentricity | Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Shipping
1. Upon receipt of payment, delivery date will be in 25-30 working days,
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
Service Advantage:
1. Warranty: 12 months FREE overseas service.
2. Enjoy lifelong maintenance.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
Provide related samples and test items, evaluation and project plan will sent back to you after technicians practical test. Then discuss the equipment specification and procurement plan.
We promise that the most suitable machine with cost the least money.
We promise that the most suitable machine with cost the least money.
