Glass Plate Automated Optical Inspection Machine for Defect Detection and Size Checking of Small Parts
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2005
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized RK-1500 Glass Plate Automated Optical Inspection Machine for Phone Part and Precision Hardware ExaminationNegotiableMOQ: 1 -
AOI RK-1500 Glass Plate CCD Camera Automated Optical Inspection and Sorting Equipment for Micro PartsNegotiableMOQ: 1
-
Image Sorting Machine Optical Visual Screening Equipment for Fastener Micro-parts Defect DetectionNegotiableMOQ: 1
-
RK-1500 Glass Plate CCD 3C Parts Sorting Machine Optical Visual Selection Equipment for Micro Phone PartsNegotiableMOQ: 1
-
Optical Vision Inspection Machine AOI Glass Plate Sorting Equipment for Mobile Phone Parts Nuts Quality CheckingNegotiableMOQ: 1
Glass Plate CCD Fastener Image Display Sorting Machine
Types: RK-1500 Glass Plate Optical Sorting Machine

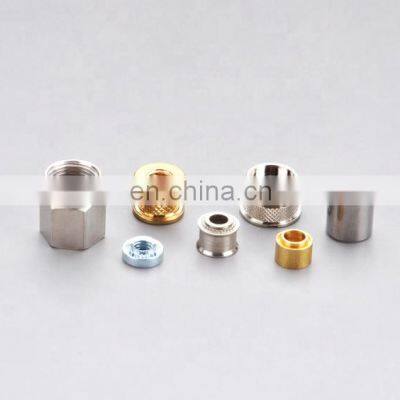

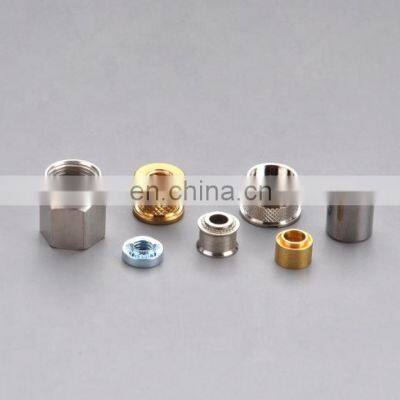

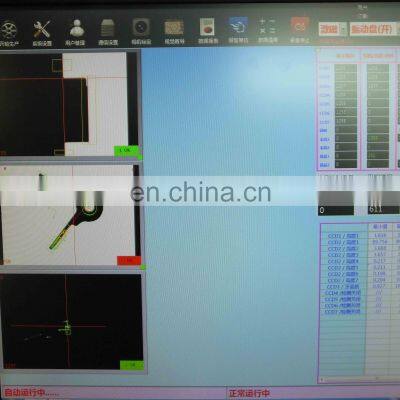

Suited for: Nuts, Rivets, Washers, Bushing, Elastic Rings, Sleeves, Inserts, Valve Retainer, Chain plate, Shearing partsInspection Screen

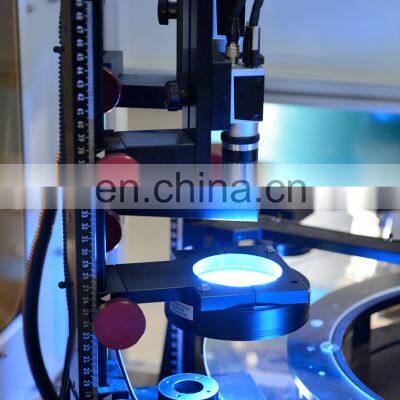

Machine equipment is outfitted with four industrial cameras.
Camera 1 is a Level camera used for inspecting the multi-segment height and outer diameter of the product.
Camera 2 is a vertical bottom view camera, to inspect the aperture and the burr of the product.
Camera 3 is a vertical top view camera used for inspecting the opposite diagonal and angle of the product. It is also used to detect chamfering.
Camera 4 is a 45° tilt camera used to determine if the product has internal threads.
Camera 1 is a Level camera used for inspecting the multi-segment height and outer diameter of the product.
Camera 2 is a vertical bottom view camera, to inspect the aperture and the burr of the product.
Camera 3 is a vertical top view camera used for inspecting the opposite diagonal and angle of the product. It is also used to detect chamfering.
Camera 4 is a 45° tilt camera used to determine if the product has internal threads.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:
1. Highly-transparent glass plate.
2. Fit for grease-free parts which can be securely placed on the glass plate.
3. Wide detection range of fasteners, mobile phone parts, rubber products, electronic components, special-shaped hardware, screw etc.
4. Detection camera: can add 2-6 sets of cameras according to the inspect items.
5. Detection speed: 300~1000 PCS /Min Depend on individual case.
6. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter, Hole diameter | Roundness |
Length | With coating |
Width | With mark |
Height, Thickness | With cut/tapering |
Surface defect | Parallel edge length |
Deformed, Broken | Broken pin, Recess depth |
Different shape | With thread |
Crack | Fine or coarse thread |
Burrs, Chips | Tooth numbers |
Across Corners | Pitch |
Across Flat | Slanted thread |
Chamfer angle | Minor diameter |
Included angle | Major diameter |
Arc radius | Hardness |
Concentricity | Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Shipping
1. Upon receipt of payment, delivery date will be in 25-30 working days,
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
Service Advantage:
1. Warranty: 12 months FREE overseas service.
2. Enjoy lifelong maintenance.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
Provide related samples and test items, a project plan will be sent back to you after technicians' practical test.
Then discuss the equipment specification and procurement plan.
We promise that the most suitable machine with cost the least money.
