Automatic Visual Inspection Equipment Glass Plate Optical Image Screening Machine for Micro-parts Mobile Phone Parts
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2005
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RK-1500 Optical Inspection Screen Sorting Machine AOI Defect Visual Image Screening Equipment for Mobile Phone Rubber ScrewNegotiableMOQ: 1 -
CCD Vision Size Checking Equipment RK-1500 Optical Vision Sorting Machine for Mobile Phone PartsNegotiableMOQ: 1
-
RK-1500 AOI Optical Sorting Machine Defect Inspection Vision Screening Equipment for Mobile Phone Parts NutsNegotiableMOQ: 1
-
Professional Glass Plate Optical Sorting Equipment RK-1500 AOI Defect Inspection Equipment for Micro-partsNegotiableMOQ: 1
-
RK-1500 Automated Optical Inspection CCD Machine Optical Image AOI Sorting Equipment for Mobile Phone PartsNegotiableMOQ: 1
Image Automated Optical Visual Screening Equipment
Types: RK-1500 Glass Plate Optical Sorting Machine
Suited for: Screws, Fastener Nuts, Micro Screws, Plastic and Rubber Parts, Electronic Component and so on.Inspection Screen

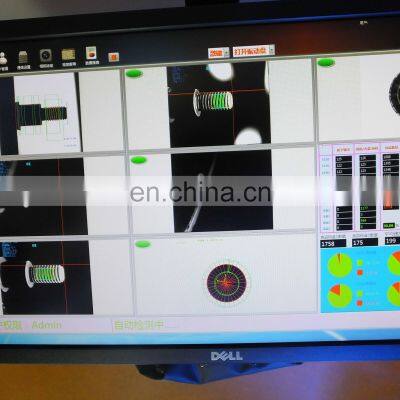

The inspection screen comes equipped with three industrial cameras.
Camera 1 is a level head-up camera used to inspect the multi-segment height and outer diameter of the products.

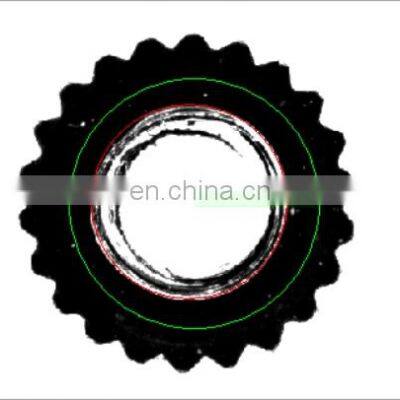

Camera 2 is a vertical bottom view camera, to inspect the cross slot or flat slot on the head of the product.

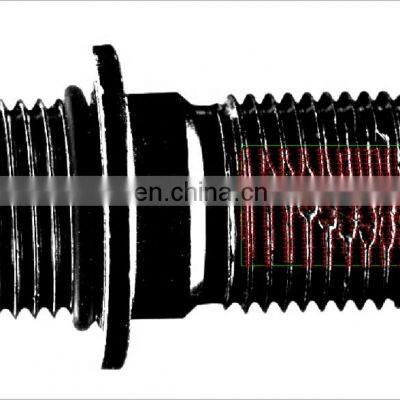

Additional 1 to 4 sets of cameras for inspecting thread damage or other defects of the product with a complete 360 degree view.
Camera 1 is a level head-up camera used to inspect the multi-segment height and outer diameter of the products.
Camera 2 is a vertical bottom view camera, to inspect the cross slot or flat slot on the head of the product.
Additional 1 to 4 sets of cameras for inspecting thread damage or other defects of the product with a complete 360 degree view.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:

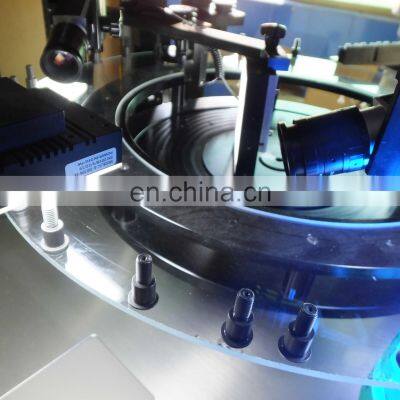

1. Highly-transparent glass plate.
2. Fit for grease-free parts which can be securely placed on the glass plate.
3. Wide detection range of fasteners, mobile phone parts, rubber products, electronic components, special-shaped hardware, screw etc.
4. Detection camera: can add 2-6 sets of cameras according to the inspect items.
5. Detection speed: 300~1000 PCS /Min Depend on individual case.
6. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
3. Wide detection range of fasteners, mobile phone parts, rubber products, electronic components, special-shaped hardware, screw etc.
4. Detection camera: can add 2-6 sets of cameras according to the inspect items.
5. Detection speed: 300~1000 PCS /Min Depend on individual case.
6. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter, Hole diameter | Roundness |
Length | With coating |
Width | With mark |
Height, Thickness | With cut/tapering |
Surface defect | Parallel edge length |
Deformed, Broken | Broken pin, Recess depth |
Different shape | With thread |
Crack | Fine or coarse thread |
Burrs, Chips | Tooth numbers |
Across Corners | Pitch |
Across Flat | Slanted thread |
Chamfer angle | Minor diameter |
Included angle | Major diameter |
Arc radius | Hardness |
Concentricity | Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Shipping
1. Upon receipt of payment, delivery date will be in 25-30 working days,
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
Service Advantage:
1. Warranty: 12 months FREE overseas service.
2. Enjoy lifelong maintenance.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
Provide related samples and test items, evaluation and project plan will sent back to you after technicians practical test. Then discuss the equipment specification and procurement plan.
We promise that the most suitable machine with cost the least money.
We promise that the most suitable machine with cost the least money.
