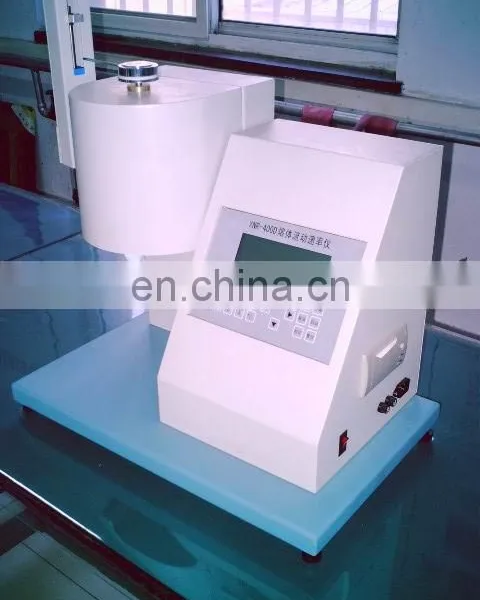

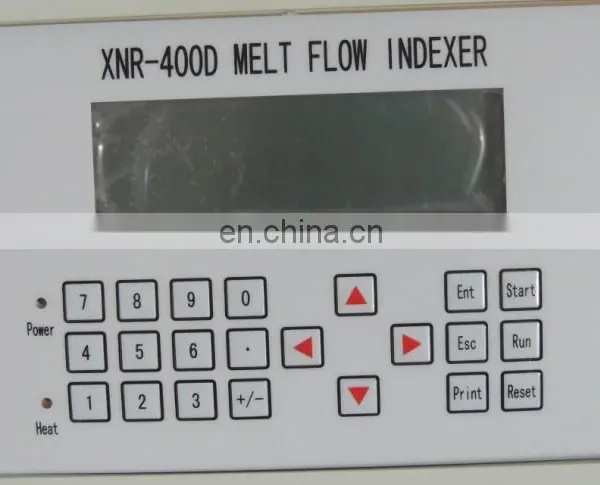

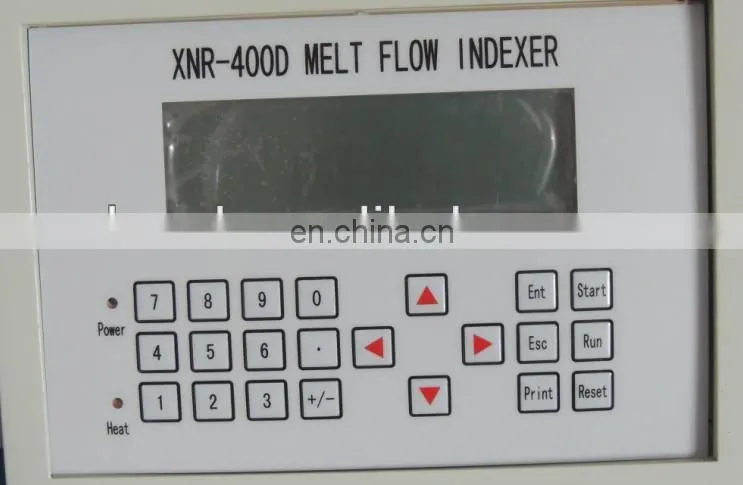

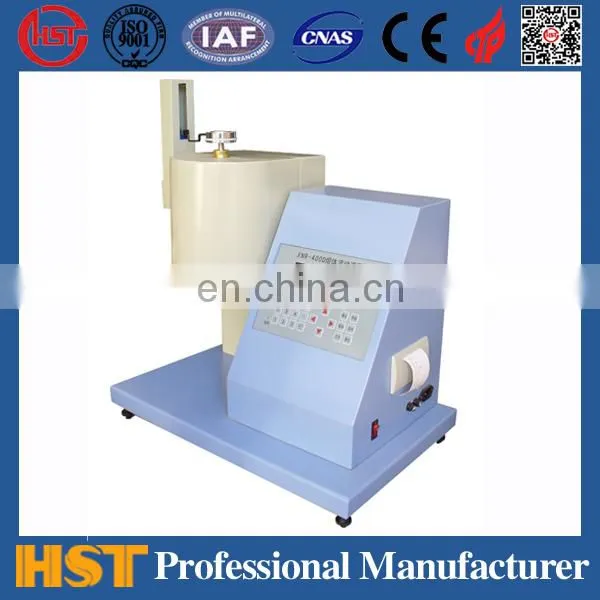

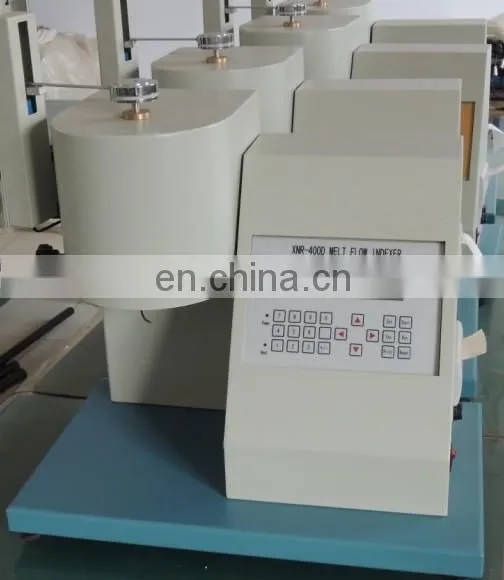

XNR-400D Plastic Melt Flow Index MFI Measuring Instrument

XNR-400D Plastic Melt Flow Index MFI Measuring Instrument

Application:

XNR-400D Melt Flow Index Tester is accordance to ISO1133; GB3682 2000, ASTM D1238. It's suitable to measure melt flow character of PP, PE, POM, ABS plastics and plastic productions, widely used in factories, products quality testing station, scientific and research institutes, and concerned industries.

Main Specification:

Extrusion discharging part:

Diameter of discharging outlet: Φ2.095±0.005mm

Length of discharging outlet: 8.000±0.025mm

Diameter of charging barrel: Φ9.550±0.025mm

Length of charging barrel: 152±0.1mm

Diameter of piston rod head: Φ9.475±0.015mm

Length of piston rod head: 6.350±0.100mm

Standard load of test (eight class)

Grade 1: 0.325kg=(piston rod + scale pan+ lagging + No.1 weight=3.187N

Grade 2: 1.200 kg=(0.325+ No.2 weight 0.875)=11.77 N

Grade 3: 2.160 kg=(0.325+ No.3 weight 1.835)=21.18 N

Grade 4: 3.800 kg=(0.325+No.4 weight 3.475)=37.26 N

Grade 5: 5.000 kg=(0.325+ No.5 weight 4.675)=49.03 N

Grade 6: 10.000 kg=(0.325+No.5 weight 4.675+No.6 weight 5.000)=98.07 N

Grade 7: 12.500 kg=(0.325+No.5 weight 4.675+No.6 weight 5.000+ No.7 weight 2.500)=122.58 N

Grade 8: 21.600 kg=(0.325+No.2 weight 0.875+No.3 weight 1.835+No.4 weight 3.475+No.5 weight 4.675+No.6 weight 5.000+No.7 weight 2.500+No.8 weight 2.915)=211.82 N

A. Relative error of test load≤0.1%

B.Range of temperature: Room temperature50---450°C.

C. Accuracy of constant temperature:±0.1°C

D. Power supply:220V±10%,50Hz

E. Working environment: The temperature is 10°C—40°C, relative humidity is 30%—80%, no corrosive medium around,no strong air convection,no shake,no disturb from magnetic field

F. Resolution:0.1°C

F. Overall dimension (L x W x H)(mm):510×370×600

G. Host weight: 25kgs weights: 21.6kgs

Configuration:

Host----------------1 pc

Weight-------------8 pc

Water level------ 1 pc

Mouth mold------1 pc

Mouth mold clean rod----1 pc

Chargingbarrel--1 pc

Loading rod-----1 pc

Hopper (stainless steel)-----1 pc

Sampling plate----1 pc

Instruction, packing list, quality certificate---1 set

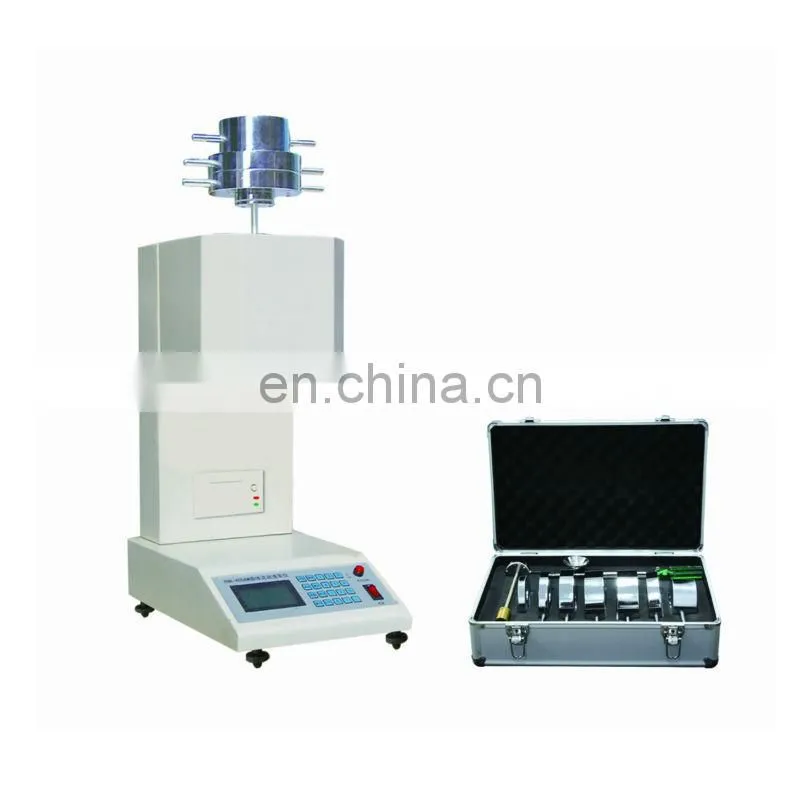

Other models available for choice:

              XNR-400B                                                               XNR-400C
