HST Radial Drilling Machine, China Drill Machine, Electric Drill Price

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

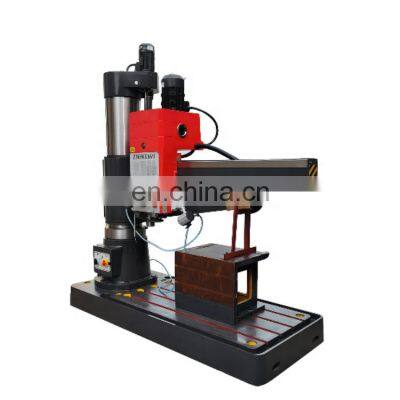

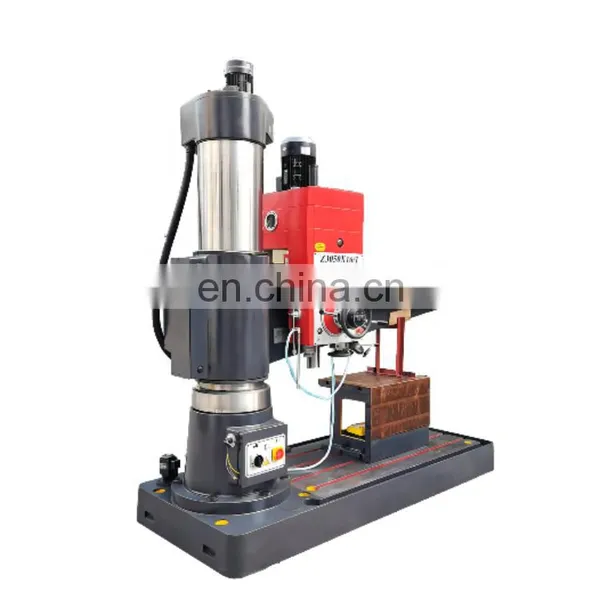

HST Radial Drilling Machine, China drill machine, electric drill price

Product Description

Production Description

Characters

Sophisticated design, beautiful appearance, easy maintenance.

Spindle box, rocker arm, inside and outside the column using manual mechanical clamping mechanism.

Speed and feed range, machine operation focus, smart and reliable, have enough rigidity and greater power.

Can be used for drilling, reaming, countersink plane, reaming, tapping, there are craft equipment, can also be

used to boring , widely used in mechanical processing departments.

Mechanical transmission structure is simple, easy maintenance

Main Technical Parameters:

Main Technical data	Z3040X13
Max Drilling capacity	35/40 mm
Distance spindle nose to working surface of base	260-1050 mm
Distance spindle axis to column generating line	300-1100 mm
Spindle travel	220/280 mm
Spindle. taper	4
Spindle speeds range	34-1280 R/min
Range of Spindle feeds	0.10-0.25 Mm/r
Spindle feeds	6 class
Rocker angle	360 °
Power of Main motor	3 kw
Lift motor power	1.1
Weight	1500 kg
Overall Size	1600x705x2200 mm
