XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine

XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine thumbnail-1
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine thumbnail-2
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine thumbnail-3
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine thumbnail-4
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine thumbnail-5
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine thumbnail-6
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine photo-1
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine photo-2
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine photo-3
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine photo-4
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine photo-5
XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine photo-6
US$ 1800 - 1900 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Weight:
20kg
Accuracy:
/
Contact Supplier Request Quote Chat Now
Hst Group Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Accuracy /
brand name Hensgrand
place of origin Shandong, China
customized support OEM, ODM, OBM
power /
Protection Class /
Voltage 220 V
warranty 1 Year
Product name Melt flow index tester MFR testing machine
Certificate CE
Application measure melt flow character of PP, PE, POM, ABS plastics and plastic
Diameter of discharging outlet: 2.095±0.005mm
Keyword Melt flow index tester
MOQ 1 Set
Brand HST
Port ANY
Packing Standard Plywood Case

Melt flow index tester MFR testing machine

XNR-400A XNR-400B Melt Flow Index Tester MFR Testing MachineXNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine

Product Application

XNR400D Melt Flow Index Tester is accordance to ISO1133;GB3682 2000,ASTM D1238. It's suitable to measure melt flow character of PP, PE, POM, ABS plastics and plastic productions, widely used in factories, products quality testing station, scientific and research institutes, and concerned industries.

Specification Data

 Main Specification:

1). Extrusion Discharging Part:

Diameter of discharging outlet: Φ2.095±0.005mm

Length of discharging outlet: 8.000±0.025mm

Diameter of charging barrel: Φ9.550±0.025mm

Length of charging barrel: 152±0.1mm

Diameter of piston rod head: Φ9.475±0.015mm

Length of piston rod head: 6.350±0.100mm

2). Standard Load Of Test (eight class):

Grade 1: 0.325kg=(piston rod + scale pan+ lagging + No.1 weight=3.187N

Grade 2: 1.200 kg=(0.325+ No.2 weight 0.875)=11.77 N

Grade 3: 2.160 kg=(0.325+ No.3 weight 1.835)=21.18 N

Grade 4: 3.800 kg=(0.325+No.4 weight 3.475)=37.26 N

Grade 5: 5.000 kg=(0.325+ No.5 weight 4.675)=49.03 N

Grade 6: 10.000 kg=(0.325+No.5 weight 4.675+No.6 weight 5.000)=98.07 N

Grade 7: 12.500 kg=(0.325+No.5 weight 4.675+No.6 weight 5.000+No.7 weight 2.500)=122.58 N

Grade 8: 21.600 kg=(0.325+No.2 weight 0.875+No.3 weight 1.835+No.4 weight 3.475+No.5

               weight 4.675+No.6 weight 5.000+No.7 weight 2.500+No.8 weight 2.915)=211.82 N

3). Relative Error Of Test Load ≤ 0.1%.

4). Range Of Temperature: Room Temperature: 50---450°C.

5). Accuracy Of Constant Temperature: ±0.1°C.

6). Power Supply: 220V±10%,50Hz.

7). Working Environment: The temperature is 10°C—40°C, relative humidity is 30%—80%, no

       corrosive medium around,no strong air convection,no shake,no disturb from magnetic field.

8). Resolution: 0.1°C.

9). Overall Dimension (L x W x H): 510×370×600mm.

10). Host Weight: 25.00 kgs, Weights: 21.60 kgs.



Host

1 PIECE

Weight

8 PIECES

Water Level

1 PIECE

Mouth Mold

1 PIECE

Mouth Mold Clean Rod

1 PIECE

Charging Barrel

1 PIECE

Loading Rod

1 PIECE

Hopper (stainless steel)

1 PIECE

Sampling Plate

1 PIECE

Instruction, Packing List, Quality Certificate

1 SET
Machine photos

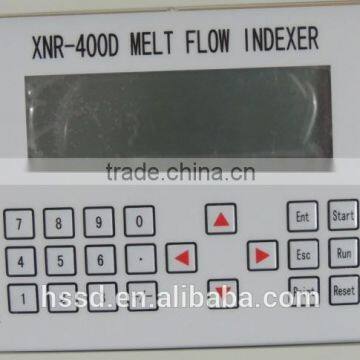

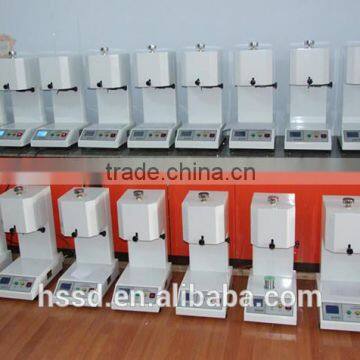

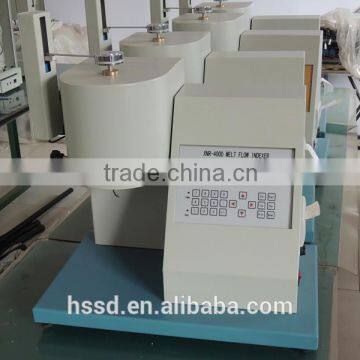

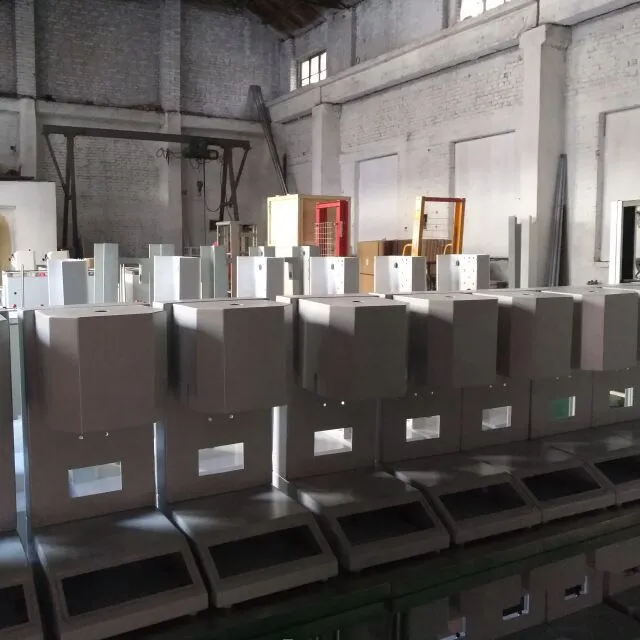

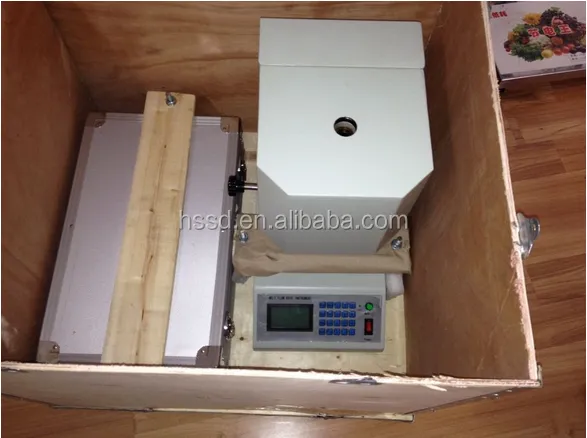

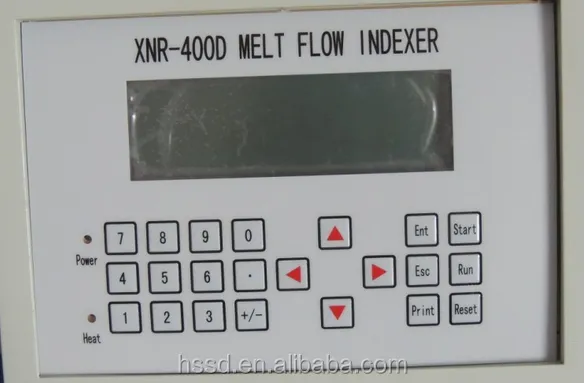

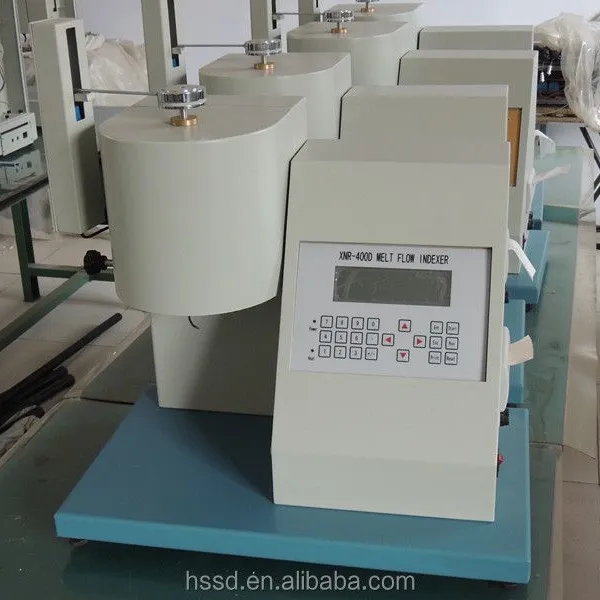

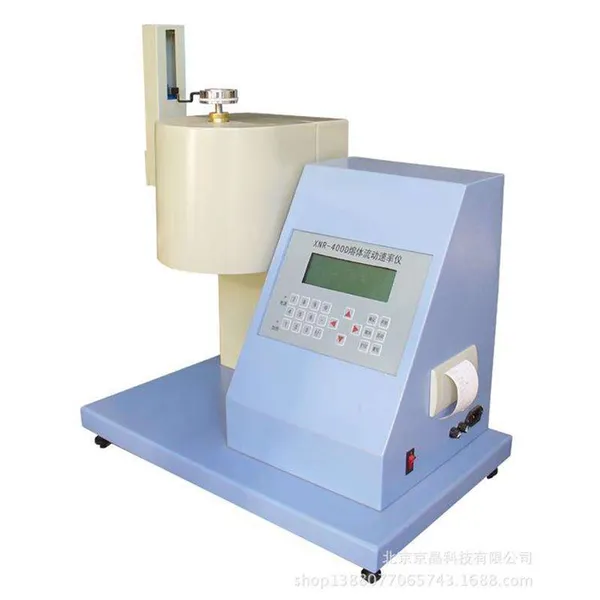

 XNR-400D digital melt flow index mfi testing machine photos:

/XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine



/



 XNR-400A XNR-400B Melt Flow Index Tester MFR Testing Machine

/
