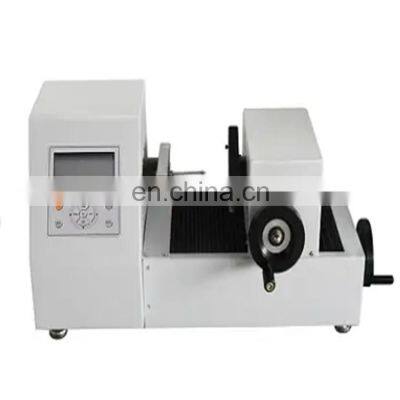

NDS-100 NDS-500 10N.m-500N.m Digital Display Auto Torsion Spring Testing Machine photo-3

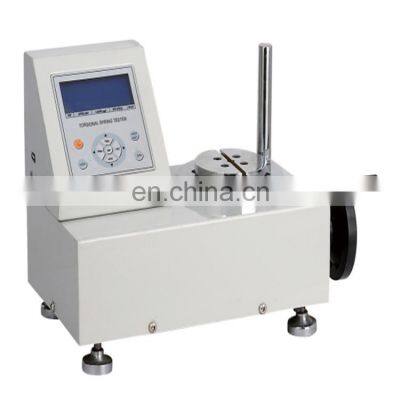

NDS-100 NDS-500 10N.m-500N.m Digital Display Auto Torsion Spring Testing Machine photo-4
NDS-100 NDS-500 10N.m-500N.m Digital Display Auto Torsion Spring Testing Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1995
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

 NDS-100 NDS-500 10N.m-500N.m Digital Display Auto Torsion Spring Testing Machine NDS-100 NDS-500 10N.m-500N.m Digital Display Auto Torsion Spring Testing MachineNDS-100 NDS-500 10N.m-500N.m Digital Display Auto Torsion Spring Testing Machine





Product Description


Application

This machine is mainly used for torsion test of various torsion springs, scroll springs,Flat Spiral Spring and other elastic torsion parts. Measure the torque of the spring at a certain rotation angle, or measure the rotation angle of the spring at a certain torque.

Standards

GB/T, ASTM, DIN, JIS and other international standards

Main Technical Parameters





Model

NDS-100

NDW-100

NDS-200

NDW-200

NDS-300

NDW-300

NDS-500

NDW-500

Type

Horizontal

Max test torque

200Nm

Test range

1%-100%FS

Min torque reading

0.1Nm

Resolution of torsion angle

0.1°

Test rotation angle

0~±360°

Accuracy of testing force

±1%

Relative error of torque zero

±0.1%

Maximum height of the sample

120mm

Distance between the force plate and the torque plate

0~200mm

Diameter of torsional plate

120mm

Power supply

AC 220V±10% 50Hz

Size

About 1500*400*980mm

Weight

About 300kg

Grade of testing machine

Grade 1
