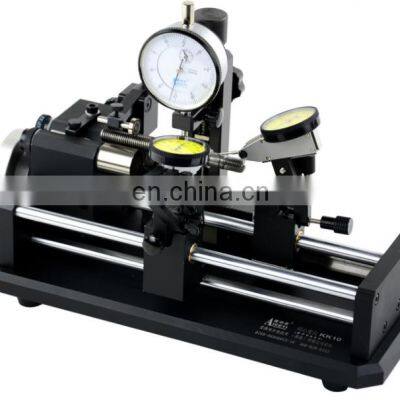

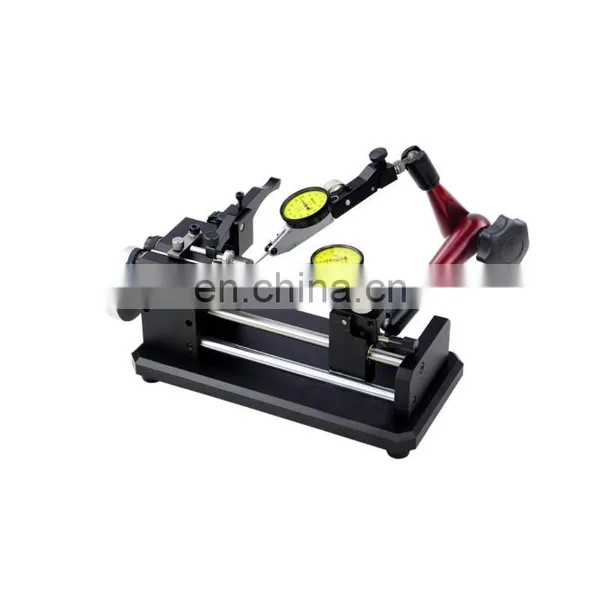

Coaxiality Concentricity Measuring Concentrycity Gauge Tester
The main purpose:
1, shaft parts roundness, concentricity, circumference, precision cross-sectional measurement
2, shaft parts cylindrical and internal parameters of the precision measurement at the same time,
3, shaft parts of multi-point parameters at the same time precision measurement;
4, fast measurement, cut off the surface, the inner and outer circle can be measured simultaneously.
Features:
1, high-precision 0.002mm;
2, rapid measurement to save time;
3, easy to operate, versatility;
4, light and easy to move, easy maintenance;
5, the operating environment requirements are not high;
6, can be customized according to specific parts special.
Parameters Table:
| Product name | Model | Applicable Diameter(mm) | Applicable Length(mm) | Host Head Accuracy(mm) | Roller | Configuration |
| Concentricity tester | H10 | 3-35 | 0-102 | 0.002 | cylinder | Bracket + double rail + table frame |
| Concentricity tester | H20 | 10-50 | 305 | 0.002 | cylinder | Bracket + double rail + table frame |
| Concentricity tester | H40 | 20-102 | 305 | 0.002 | cylinder | Bracket + double rail + table frame |
With two Dial indicator
Range: 0-0.8mm
Accuracy: 0.01mm
Standard packing (aluminos box)
43X24X20 cm
A box only incluing one piece
Shipped in 5 days after payment
