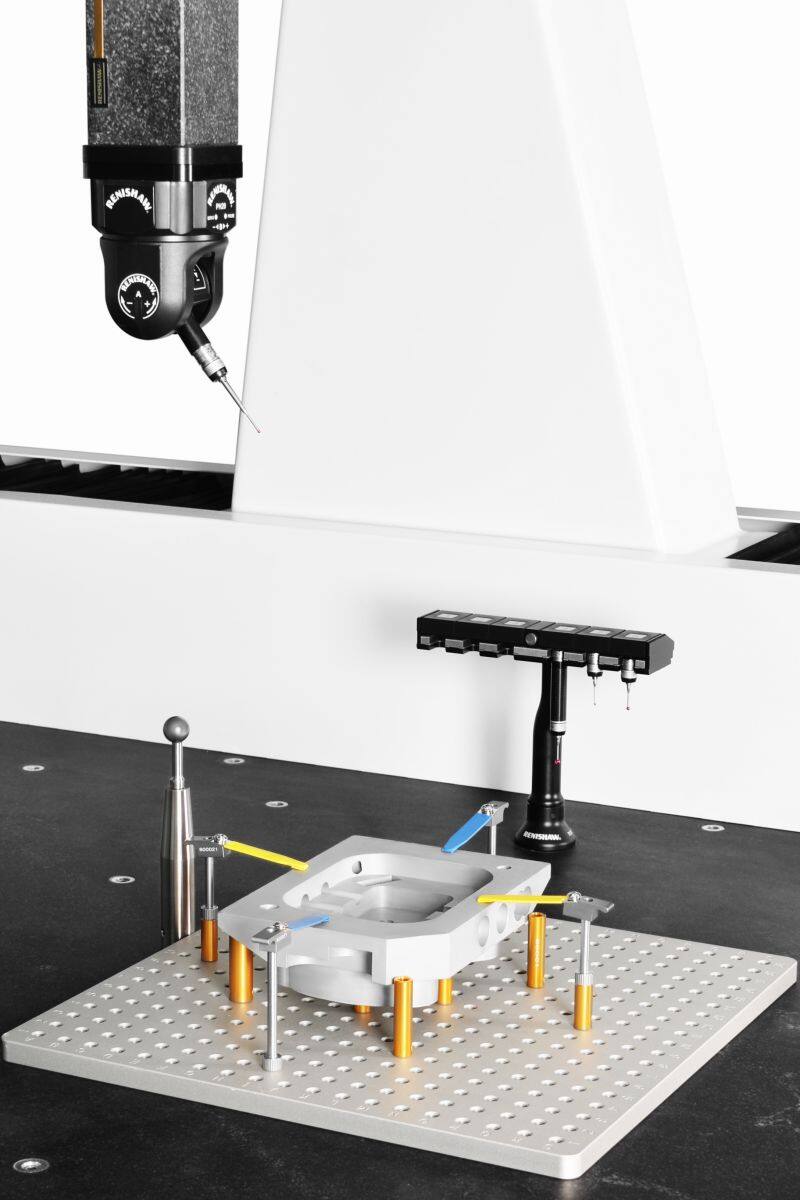

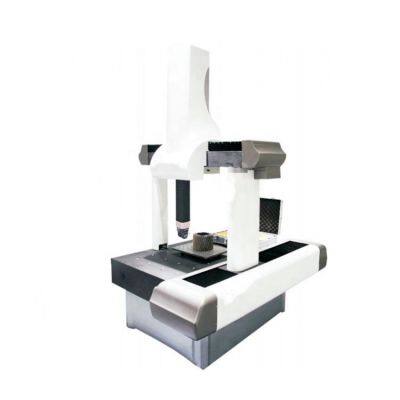

Hot Sale Bridge type gantry large stroke CMM Coordinate Measuring Machine
Machine
HST series coordinate measuring machine combines single-point probing and analog scanning in a single high performance measuring machine, can also be equipped with contact and non-contact probe system. Based on the new generation of controller, combines and optimizes temperature and accuracy compensation systems and advanced algorithms to support high-speed, high-accuracy analog open and closed loop measurement.
Design Characteristic
- Granite fixed worktable, all three axes are made of high performance granite, good temperature characteristic, has the same coefficient of thermal expansion.
- Granite worktable with integral “dovetail” guide in X axis, eliminate the pitch and yaw, also provides superior motion stability.
- Z axis air-balance with self-protection, improve motion capability.
- High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped
- RENISHAW steel scale
- Famous parts from all over the world are used in every important sub systems
- High performance granite fixed worktable and all three axes are made in TAIWAN.
- RENISHAW scale and readhead,Resloution:0.5um
- Pneumatic system made
- Pricision filter
- Full screen and high soft cable towline
Specification:
|
CODE |
20031501 |
|
Model |
YIHUI 575S |
|
Resloution(um) |
0.5 |
|
Indication Error(um)* |
3.5+4L/1000 |
|
Measurement Error(um) * |
3.5 |
|
Measuring Range(Dx*Dy*Dz, mm) |
500*700*500 |
|
Load Capacity(kg) |
1000 |
|
Dimension(Lx*Ly*Lz,mm) |
1217*1788*2466 |
|
Weight(kg) |
approx. 1000 kg |
* All data tested according to Standard DIN EN ISO 10360-2.
