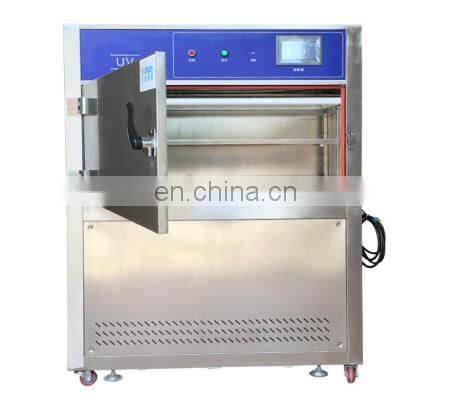

HST Accelerated Aging Test Chamber With CE Certificate

(1) Main technical parameters

Item

Uv Simulation Environment Test Chamber

Model

HST-U113

Interior size

W1150 X H500 x D500mm

Exterior size

W1350 X H1560 x D600mm

Weight

160kgs appr.

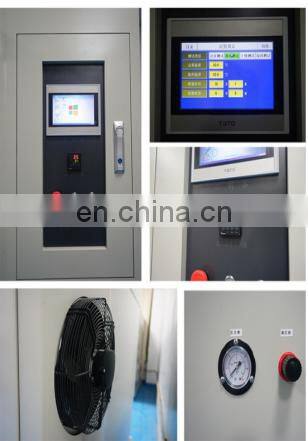

Controller

-   LCD 7-inch touch screen controller, with programmable temp., humid., UV(sun), and time and Fix mode of 2 running modes.

-   USB interface

-   Operation button

-   Alarm indicator

-   Irradiation timer

Temp. control mode

PID self-adjustment SSR control

Temp. range

RT+10℃ ~ 70℃ (adjustable)

Temp. deviation

±2.0℃

Temp. fluctuation

±0.5℃

Humidity range

≥93%R.H (not adjustable)

Temp. uniformity

±1℃

Temp. fluctuation

±0.5℃

Distance between lamps

70mm

Distance between samples and lamps

50mm±3mm adjustable

Irradiation level

≤1.0W/m2 adjustable

Irradiation lamp

UVA-340 Lamp, L=1200/40W, 8pcs (average service life: 1200hrs)

UVA-340: 315 ~ 400nm; (UVB-313 lamps is optional)

Temp. control method

PID self-adjustable SSR control

Depth of water channel

25mm under auto-control

Test time

0~999 H 99 min (adjustable)

Function

Temperature, light irradiation, condensation, spray test cycle is adjustable

Black board Temp.

50℃ ~ 70℃ (temperature inside the chamber plus 20℃ ~ 25℃)

Irradiance probe

(Optional to purchase)

Monitoring the real-time irradiance

(2) Structure & Material

a)  Structure:

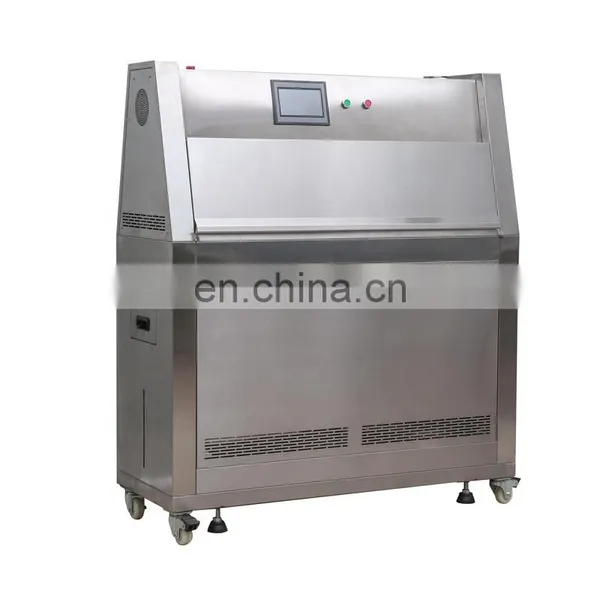

The middle of the machine is the working chamber, the water system located at the bottom of machine, its top is the control cabinet and control panel. Open the door from front direction. The bottom of the chamber with high-quality PU activity wheel that can be fixed, users can move it according to their requirements positioning.

-   Single cycling system for air flue in the box, there's one inlet axis weeding machine which improves the flow amount of air, the heating ability and the whole temperature uniformity in the test machine.

-   Water source and consumption: Tap water or distilled water for 8liters per day.

-   Heating method is to heat liner water tank with fast heating speed and high temperature uniformity.

b)  Material:

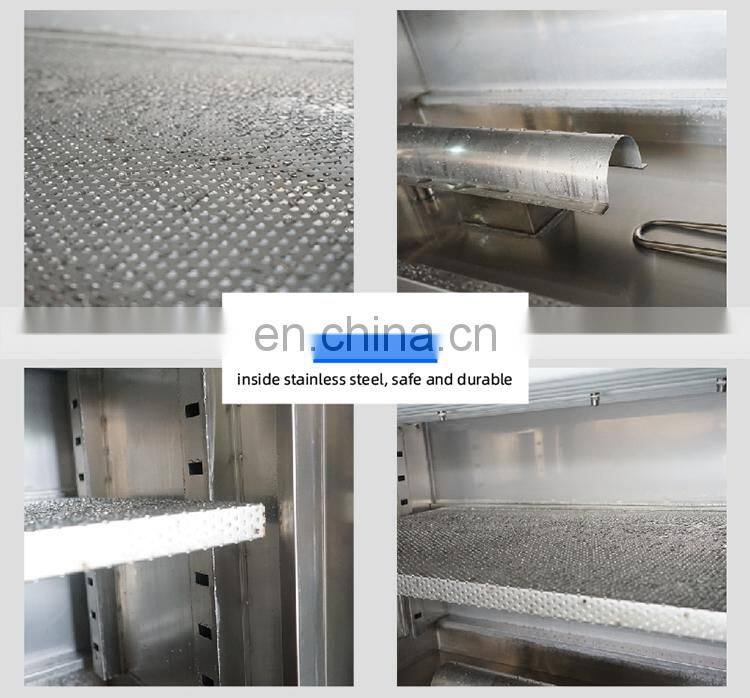

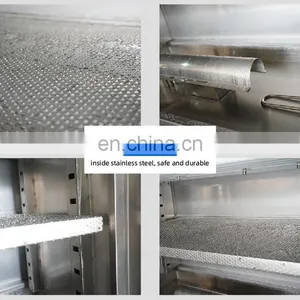

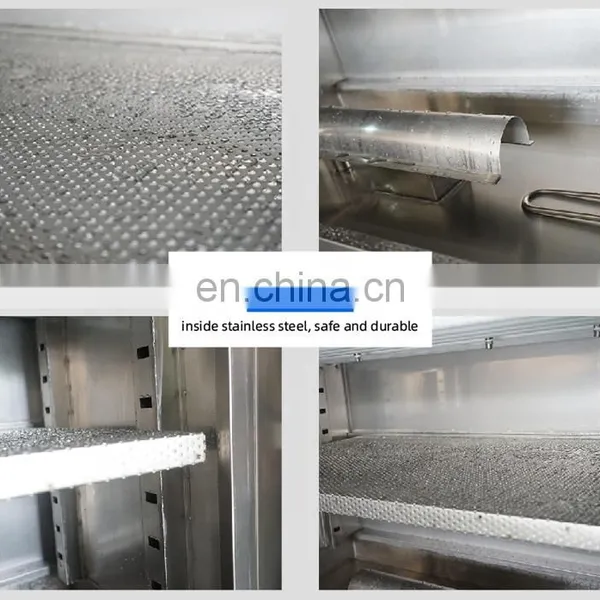

-   Inner box: high grade stainless steel plate

-   Outer box: stainless steel plate SUS304 or stoving varnish for option.
