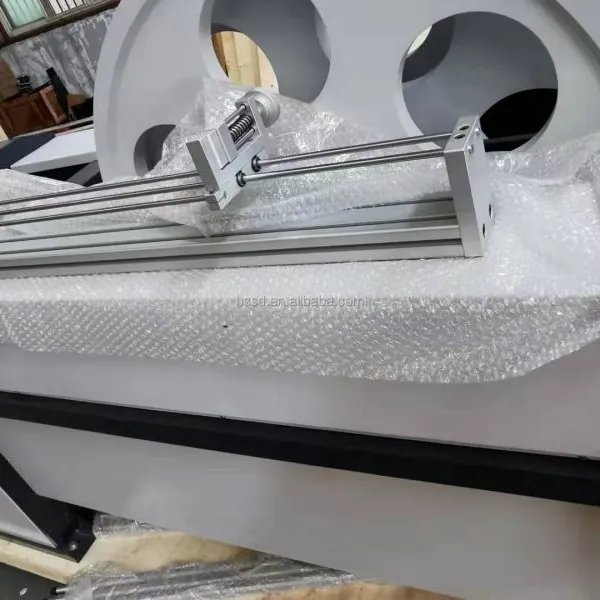

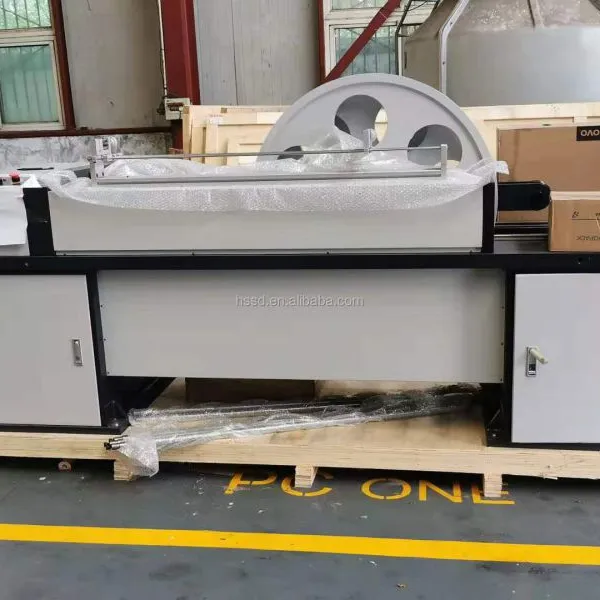

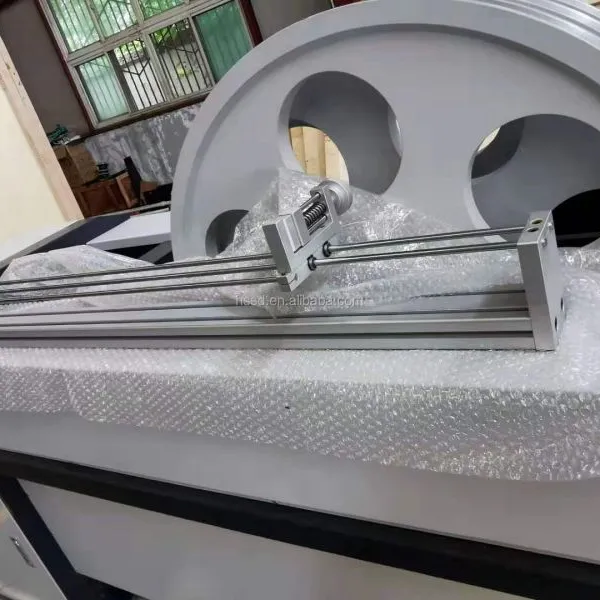

IEC-60794-1-2-E1 GLY-1000 Both Normal and Bow-type optical fiber cable tensile compression crush tester cable testing mchine
Method E1: Tensile performance
This measuring method applies to optical fiber cables which are tested at a particular tensile strength to examine the behavior of the attenuation and/or the fiber elongation strain as a function of the load on a cable which may occur during installation. This method is intended to be nondestructive (the tension applied shall be within the operational values).
Method E3: Crush
The purpose of this test is to determine the ability of an optical fiber cable to withstand crushing
Technical specifications
|
Load capacity |
kN |
100 |
|
Tensile capacity of Bow-type |
kN |
5 |
|
Crush capacity |
kN |
10 |
|
Accuracy class |
% |
±0.5% |
|
Measuring range |
% |
0.4%-100% |
|
Compression head |
|
100mm×100mm,hardness:HB240~280 |
|
Loading speed |
mm/min |
0.2~500 |
|
Deformation measuring accuracy |
% |
±0.5% |
|
Displacement measuring accuracy |
% |
±0.3% |
|
Elongation measurement |
|
1. gauge length: 1000mm 2. Measuring resolution is better than 10μm 3. Accuracy is better than ±0.5%. |
|
Crosshead travel |
mm |
800~1100mm |
|
Optical Fiber Cable Tensile Tester (both Normal and Bow-type Cable) |
|
Optical Fiber Cable Tensile Tester (Bow-type Cable) |
|
Optical Fiber Cable Crush Cut Tester |
|
Optical Fiber Cable Torsion Tester |
|
Optical Fiber Cable Impact Tester |
|
Optical Fiber Cable Repeated Bending Tester |
|
Optical Fiber Cable Winding Bending Tester |
|
Optical Fiber Cable Kink Tester |
|
Optical Fiber Cable Water Penetration Tester |
|
Optical Fiber Cable Temperature Cycling Chamber |
|
Optical Fiber Cable Abrasion Tester |
|
Optical Fiber Cable Flexing Tester |
|
GVT-1000 Optical Fiber Cable Sheave Testing Machine
|
|
GVA1000 Cable Aeolian Vibration Testing Machine |
|
GLA1000 Optical Fiber Cable Galloping Testing Machine
|
