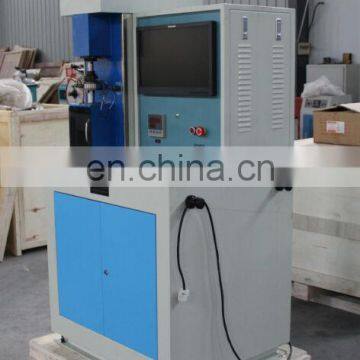

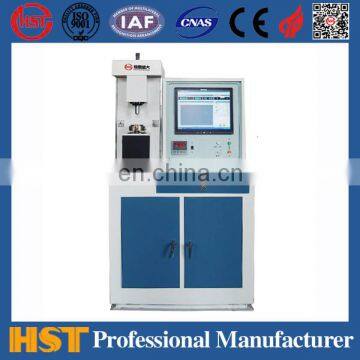

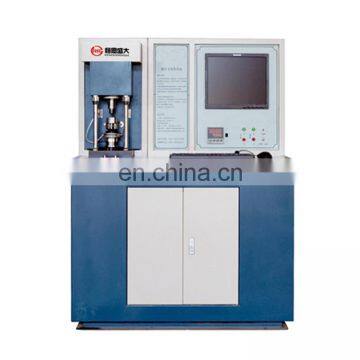

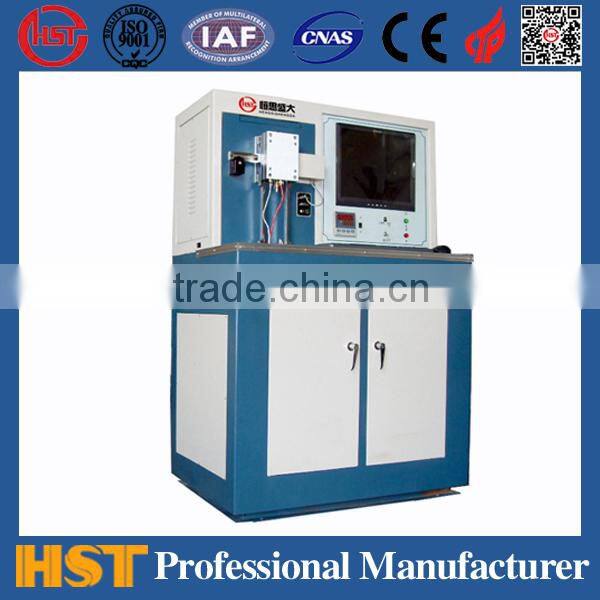

MRH-3 friction testing machine for lab report test
Application:
This machine is mainly applied for simulating evaluation for kinds of lubricant, grease’s extreme compression capacity and anti-confusion capacity. It can also be used for performance study of anti-friction capacity of aviation kerosene and capacities of all sorts of paint coating, metal and non-metal materials.
Standards:
This machine conforms to ASTM D 2782 Standard Test Method for Measurement of Extreme-Pressure Properties of Lubricating Fluids (Timken Method) and ASTM G77 Standard Test Method for Ranking Resistance of Materials to Sliding Wear Using Block-on Ring Wear Test
Technical specifications:
Specification | MRH-3 | |
Max. test force | 3000 N | |
Friction accuracy | ±2% | |
Spindle speed range | 100-2000r/min(5000r/min)r/min | |
Speed Control Accuracy | ±10r/min | |
Test time control range | 10~9999s(min) | |
Staff gauge scale | 1.5n/100mm | |
Temperature range of test oil | Room temperature~100°C | |
Test force speed | 8.92~13.33 | |
Standard testing ring’s dimension(mm) | Φ49.22x13.06 | |
Standard testing block’s dimension(mm) | 12.32x19.05 | |
Overall dimension (L*W*H) | Mainframe | 1300mm×700mm×1340mm |
Inflicting force installation | 460x460x900mm | |
Net weight of load frame | 800kg | |
Test force control mode | Stepping motor closed-loop control applied test force | |
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
Dear cutomer , if you are intrested in our testing machine. Please contact us without any hesitate. We will always provide our best services and prices to you.
