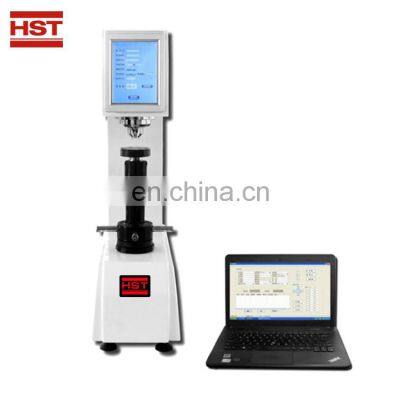

HRS-150A Rockwell Hardness Tester,Rockwell Hardness Test Equipment

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

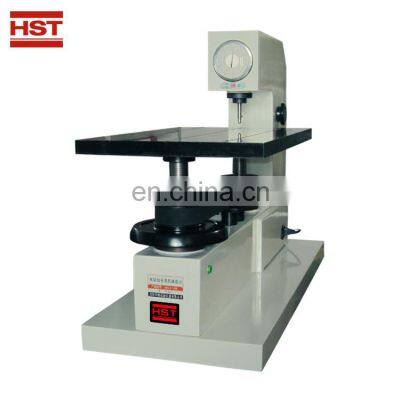

HRS-150A Rockwell Hardness Tester,Rockwell hardness test equipment

Product Description

Production Description

1.Application:

HRS- 150 Digital Display Rockwell Hardness Tester adopts novel-designed large LCD screen to

display, as well as menu structure.

It mainly functions are as follows:

1. 1. Lever Loading, durable and reliable, the test process automation, no human operator error.

1.2. LCD automatically display the hardness value, and can be converted hardness.

1.3. Built-in printer, automatic printing hardness results.

1.4. Precision hydraulic buffers, steady load.

1.5. No friction spindle, high precision test force.

1.6. Accuracy according to GB / T230.2, ISO 6508-2 and American ASTM E18 standard.

2.Usage Range:

Rockwell hardness measurement of ferrous metals, non-ferrous metals and non-metallic materials.

Wide range of applications, suitable for rockwell hardness testing of hardening, quenching and

other heat-treated material

3.Main Specifications:

Model	HRS-150
Measuring Range	20-88HRA, 20- 100HRB, 20-70HRC
All Testing Force	60 kgf (588.4N), 100 kgf (980.7N), 150 kgf (1471N)
Max. Height OfSpeciment	210 mm
Max. Depth OfSpeciments	165 mm
Min. Scale Value	0. 1HR
Indication OfHardness Value	Digital Display With Large LCD Screen
Net Weight	98 KG
Overall Dimension	522 x 220 x 729mm (L×W×H)
Power Supply	AC220V, 50Hz
