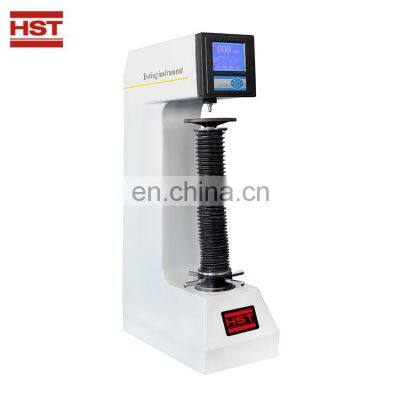

HRS-45TDX-ZXY Automatic Rockwell Portable Hardness Tester Machine
HRS-45TDX-ZXY Automatic Rockwell Portable
Hardness Tester Machine
Automatic testing process, put the sample, press the "Start" button to obtain the hardness value of each sample
Samples automatically rise (no height restrictions)
Automatic initial test force is applied, the main test force is automatically applied
Automatic measurement of hardness, hardness values of automatic digital display
Touch screen interface, easy operation, multi-language versions
Available for using after staring up, unnecessary for installing weights and Debugging Electric loading, closed-loop control
Automatically apply the initial load and main load
Automatic correction of high, medium and low hardness numbers
Specifications
|
Model |
HRS-150TDX-ZXY |
HRS-45TDX-ZXY |
HRS-150/45TDX-ZXY |
|
Exchanging scales |
Rockwell, Brinell, Vickers |
||
|
Configuration |
Z axis rising, X and Y axis sample table moves automatic |
||
|
Samples rise |
Automatic |
||
|
Automatic sample rate rise |
3mm/s |
||
|
Hardness testing range |
HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120 HRM:85-115, HRR:114-125 |
||
|
Testing rage of Superficial Rockwell |
HR15N:70-94 HR30N:42-86 HR45N:20-77 HR15T:67-93 HR30T:29-82 HR45T:1-72 |
||
|
Rockwell initial test force |
10kgf(98.07N) |
3.0kgf(29.4N) |
10kgf(98.07N),3.0kgf(29.4N) |
|
Rockwell total test force |
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
15kgf(147.1N) 30kgf(249.2N) 45kgf(441.3N) |
60kgf(588N),100kgf(980N) 150kgf(1471N),15kgf(147.1N),30kgf(249.2N),45kgf(441.3N) |
|
Dwell time |
0-99s |
||
|
Hardness resolution |
0.1HR |
||
|
Test force error |
<0.5% |
||
|
Carried standard |
BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
||
|
Max. Height of sample |
50mm |
||
|
The distance of indenter to the wall |
200mm |
||
Hardness tester spare parts :Hardness Test Blocks with certificate
Detail Show :
Hardness Tester
Factory Show


Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
