Home > Products > Hardness Tester > Pen Type Leeb Hardness Tester Time 5102
Pen Type Leeb Hardness Tester Time 5102
- 1000 per Month
- T/T Credit Card
You May Like
-
HLN120 Portable Leeb Hardness Tester
-
HLN160 Portable Leeb Hardness Tester
-
HV-5 Manual transfer Small-loading Vicker hardness tester
-
High-precision HVS-1000A Digital Micro Vickers Hardness Tester
-
HV-1000A Automatic transfer Microvickers Hardness Tester machine
-
HV-1000 Manual transfer Microvickers Hardness Tester machine
Product Description

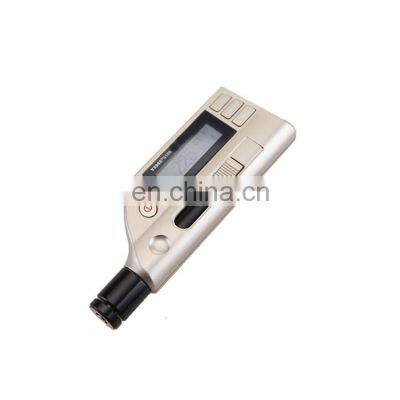

Pen Type Leeb Hardness Tester Time 5102
Application:
Pen Type Hardness Tester TIME5100/5102/5104 is economically priced and suitable for quick hardness testing on metal materials, especially on-site hard testing of large, non-transportable components.
Specifications
|
Model |
TIME 5100 |
TIME 5102 |
|
|
Impact device |
D integrated |
C integrated |
DL integrated |
|
Hardness scales |
HLD, HB, HRC, HRB,HV, HS |
HLC, HB, HRC, HRB, HV, HS |
HLDL, HB, HRC, HRB,HV, HS |
|
Accuracy |
±6HLD(760 ±30HLD) |
±12HLC |
±12HLD |
|
Memory |
270 average readings in 9 group files |
||
|
Output |
|||
|
Min. surface roughness of work piece |
1.6μm ( Ra) |
0.4μm ( Ra) |
1.6μm ( Ra) |
|
Max. work piece hardness |
960HLD |
960HLC |
950HLDL |
|
Min. radius of work piece (convex/concave) |
Rmin = 50mm (with support ring Rmin=10mm) |
Rmin=11mm (with support ring ) |
Rmin = 10mm (with support ring Rmin=10mm) |
|
Min. work piece weight |
2~5kg on stable support 0.05~2kg with compact coupling |
0.5~1.5kg on stable support 0.02~0.5kg with compact coupling |
2~5kg on stable support 0.05~2kg with compact coupling |
|
5mm |
1mm |
5mm |
|
|
Min. thickness of hardened layers |
0.8mm |
0.2mm |
0.8mm |
|
Indentation depth |
Impact devices data |
||
|
Continuous working time |
8h (without backlight) |
||
|
Power |
AAA 1.5V batteries |
||
|
Operating temperature |
0~40ºC |
||
|
Dimensions (mm) |
155×55×25 |
160×60×25 |
215×60×25 |

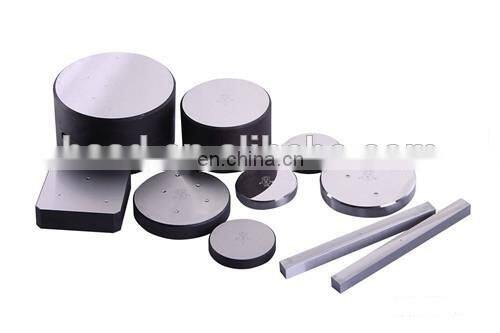

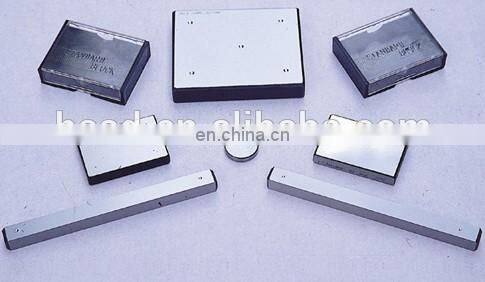

Hardness tester spare parts :Hardness Test Blocks with certificate

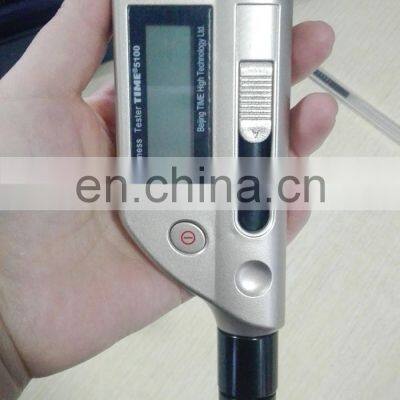

Detail Show :

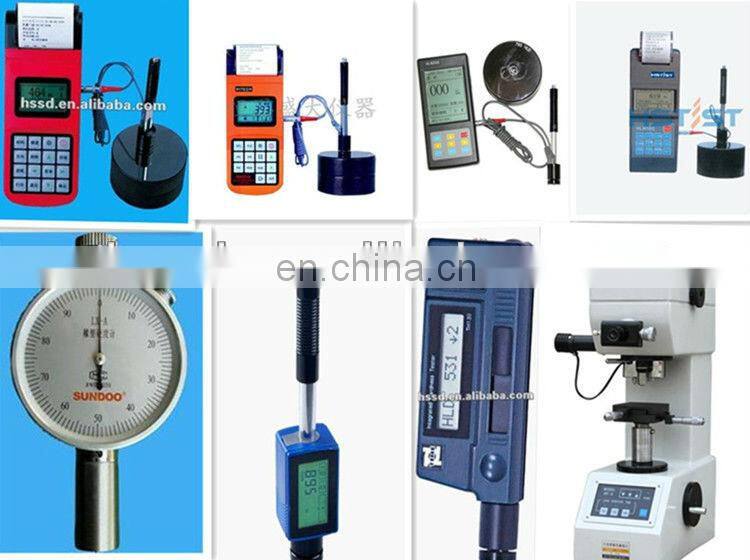

Hardness Tester

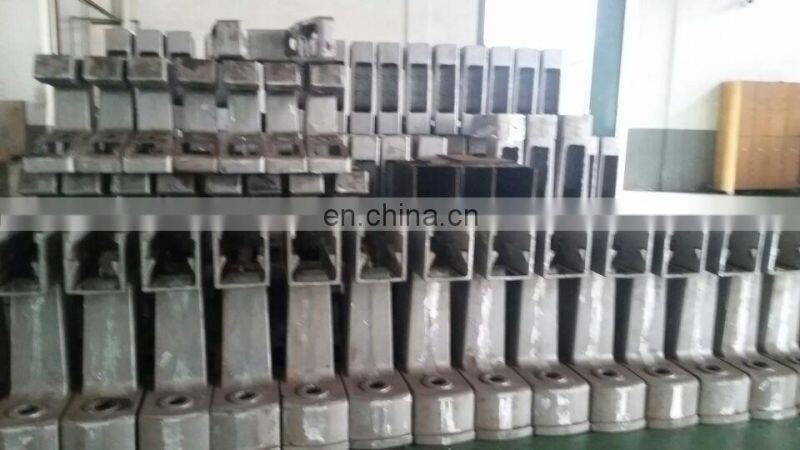

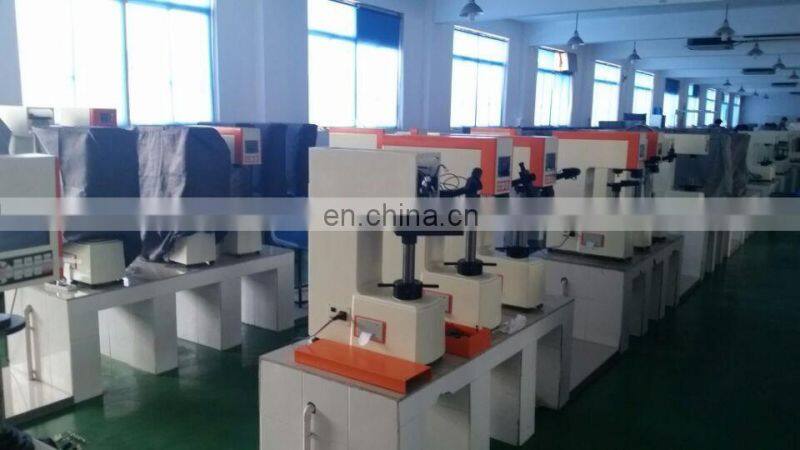

Factory Show
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
