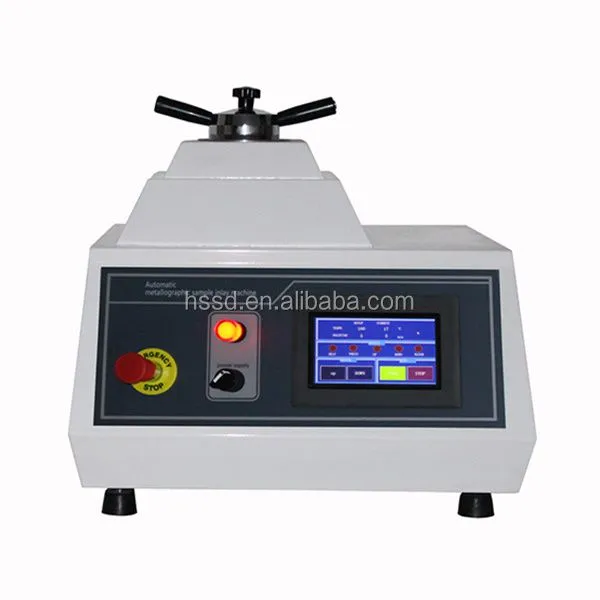

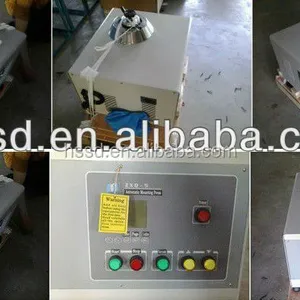

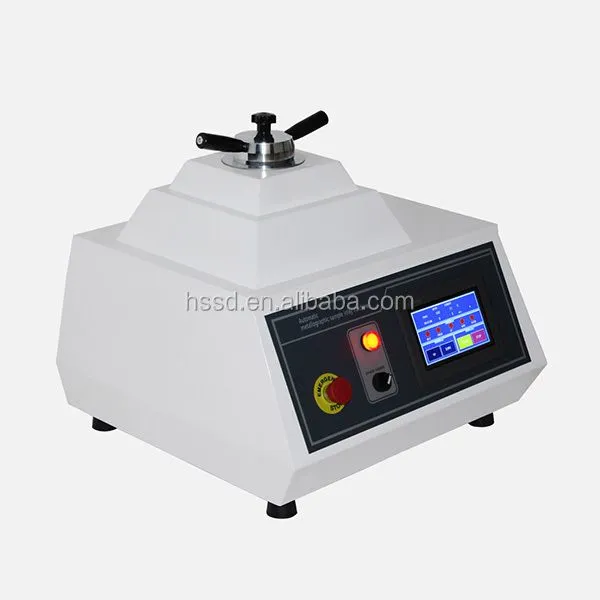

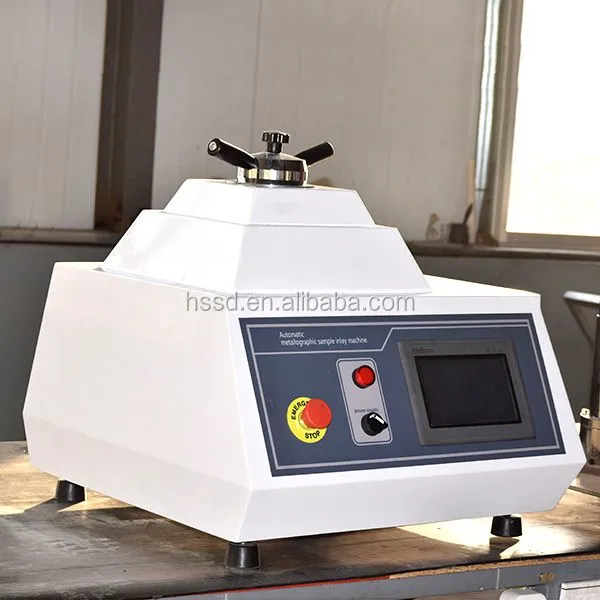

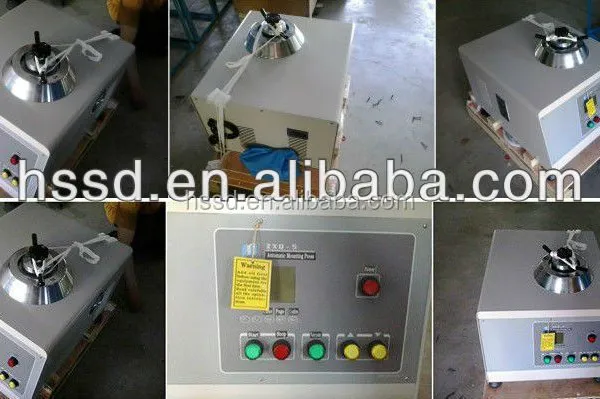

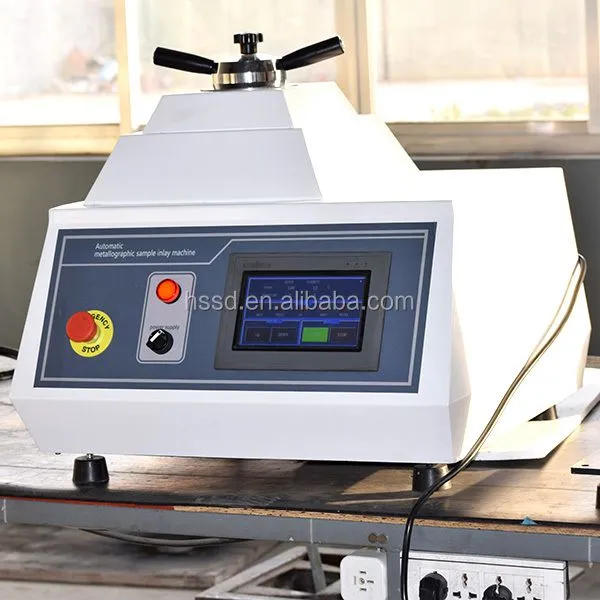

ZXQ-5 Metallographic Sample mounting press machine
Application:
Model ZXQ-5 automatic metallographic specimen mounting presses a kind of full automatic mounting press, equipped with in-out water cooling system. It is suitable for the heat mounting (thermohardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time and applied force etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of moulds that can be chosen to meet the demands at will. Also it is available to prepare two pieces of specimens at the same time, the capacity is doubled.
Technical specifications
Diameter of specimen: Ø25mm, Ø30mm, Ø40mm, Ø50mm
Cooling method: water cooling
Power supply: single phase, 220V, 50Hz
Max. power consumption: 1800W
Setting range of system pressure intensity: 0-2MPa (corresponding preparing pressure intensity: 0-72MPa)
Temperature setting range: 0-300 ºC
Heat preserving time: 0-99m99s
Dimensions: 615 × 510 × 500 cm
Net weight: 110Kg
Metallographic mounting press machine
