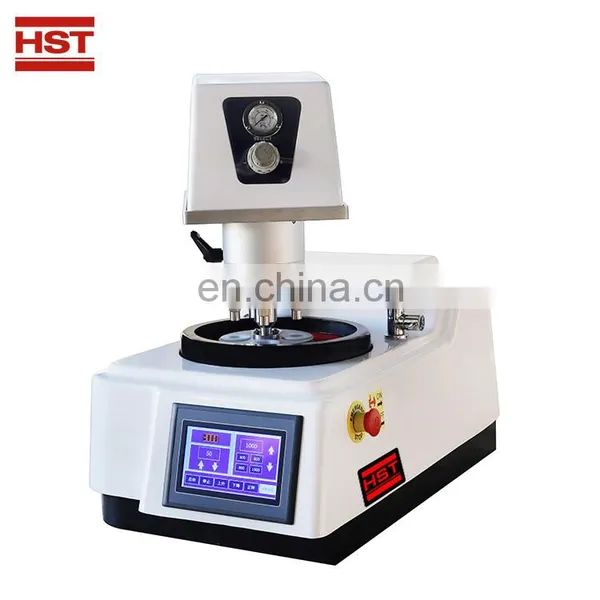

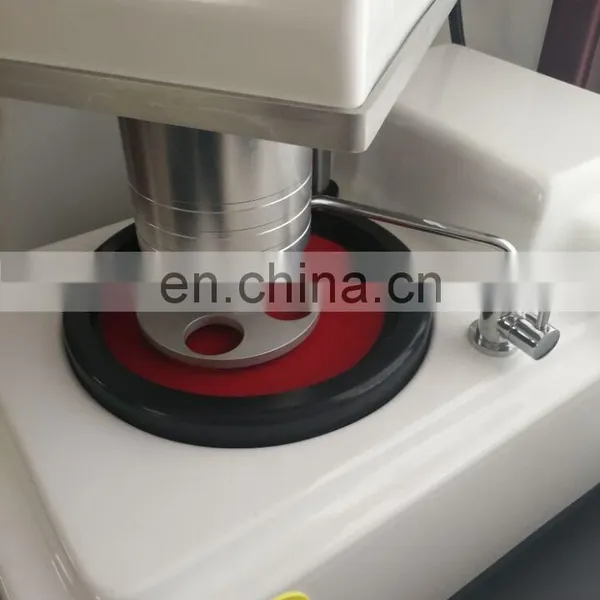

MOPAO3 Single Disc Sample Automatic Polisher Grinder
1. Application
MoPao 3 Automatic Metallographic Specimen Grinding Polishing Machine is Touch Screen ,Digital Display, Single Disc, Desktop Type.
It is a multi-purpose machine, one machine to achieve the metallographic specimen roughing grinding, precision grinding and polishing the entire process.
It is the enterprises and research institutes ideal device.
2.Technical Parameters:
|
Model |
MoPao 3 |
|
Disc Diameter |
φ250 mm (can customized φ203mm, φ300mm) |
|
Disc Rotating Speed for φ203 or φ250mm disc ) |
50~1000 r/min (Stepless Speed) And 150 r/min, 300 r/min (Two-step Constant Speed) |
|
Disc Rotating Speed forφ300mm |
200 r/min , 600 r/min, 800 r/min , 1000 r/min Four- step constant speed, Stepless Speed need to be customized |
|
Grinding Polishing Head Rotating Speed |
5 ~ 150 r/min (Stepless Speed) |
|
QTY Of Specimen Preparation |
4 PCS |
|
Specimen Force |
5 ~ 60N |
|
Time Of Specimen Preparation |
0 ~ 9999 s |
|
Specimen Diameter |
Φ30 mm (Or Customized Φ22 mm or Φ45 mm) |
|
Supply Power |
Single Phase, AC 220V, 50Hz, 1.1kW |
|
Overall Dimensions |
632*750*700 mm |
|
N.W. / G.W. |
50KG / 60 KG |
Send Inquiry to This Supplier
