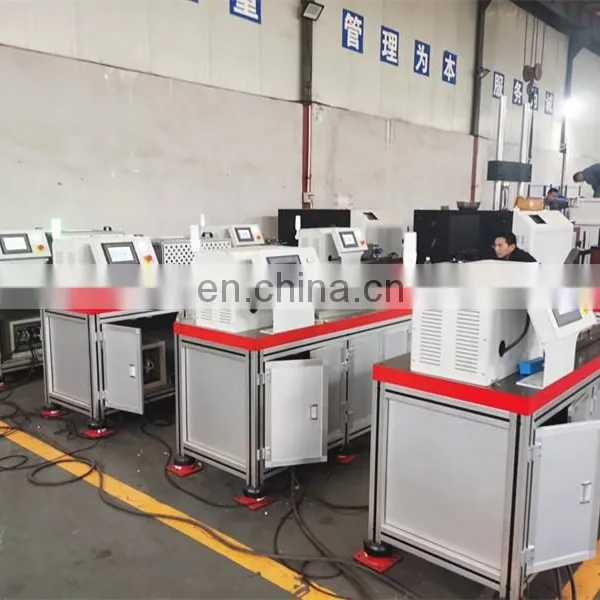

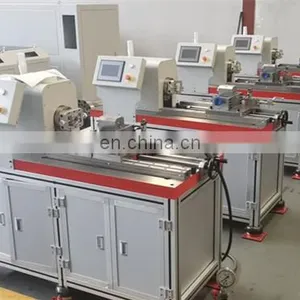

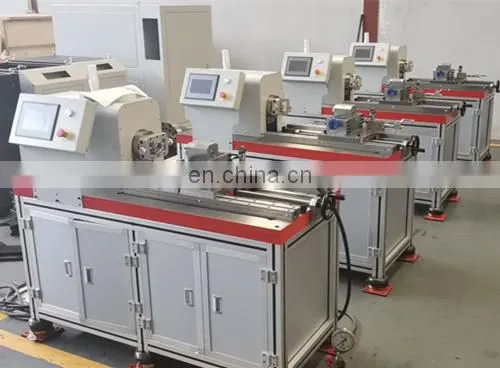

Computer Controlled Electro-hydraulic Servo Torsion Fatigue Testing Machine
Computer Controlled Electro-hydraulic Servo Torsion Fatigue Testing Machine adopts electro-hydraulic servo control technology, which is suitable for static torsion test and dynamic torsion fatigue test of various kinds of synchronizer and various shaft parts. And Computer Controlled Electro-hydraulic Servo Torsion Fatigue Testing Machine can detect the fatigue properties of materials and components and parts by reciprocating torsion, and can also conduct the fracture surface of the crack in the material inside when the material is fatigued.
Specifications
|
Model |
HSNPL-5000 |
HSNPL-10000 |
HSNPL-20000 |
HSNPL-30000 |
HSNPL-50000 |
|
Working type |
Computer control |
||||
|
Maximum torque |
±50000Nm |
±10000Nm |
±20000Nm |
±30000Nm |
±50000Nm |
|
Indicating accuracy |
±1% |
||||
|
Accuracy range |
2-100% FS |
||||
|
Test frequency range |
0.1-30Hz |
||||
|
The maximum Angle |
±45° |
||||
|
Angle resolution |
1 ' |
||||
|
Specimen length |
10-1700mm |
||||
|
Axial spatial adjustment |
Electric adjustment |
||||
|
Control system |
WinTest10 full digital hydraulic servo controller |
||||
|
Servo pump station |
|||||
|
Flow |
140L/min |
||||
|
Pressure |
20Mpa |
||||
|
Power |
55KW |
||||
|
Filtering accuracy |
3μ |
||||
|
Display type |
|||||
|
The computer screen displays the torque, angle and frequency measurement values, automatically describes the test curve, and automatically performs data processing |
|||||
