2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine

2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine thumbnail-1
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine thumbnail-2
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine thumbnail-3
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine thumbnail-4
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine thumbnail-5
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine thumbnail-6
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine photo-1
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine photo-2
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine photo-3
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine photo-4
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine photo-5
2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine photo-6
US$ 2000 1 - 4 Set
US$ 1000 ≥5 Set
Key Specifications
Get Latest Price
Model Number:
YES-2000D
Brand Name:
HST
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Hst Group Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number YES-2000D
Brand Name HST
Place of Origin Shandong, China
Product name 1000kn digital display calibration of compression testing machine
Application for conrete, cement and red brick compression resist testing
Max. Load 1000KN
Range of test force 4% ~100%FS
Load display accuracy ±1%
Range between the working tables 320mm
Piston route 50mm
compression test space 320mm
Power supply 2.1Kw/AC380V
Certificate CE
Customized support OEM, ODM, OBM
Power Hydraulic

1000kn digital display calibration of compression testing machine

2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine2000kn Digital Display Pressure Gauge Calibration of Compression Testing Machine

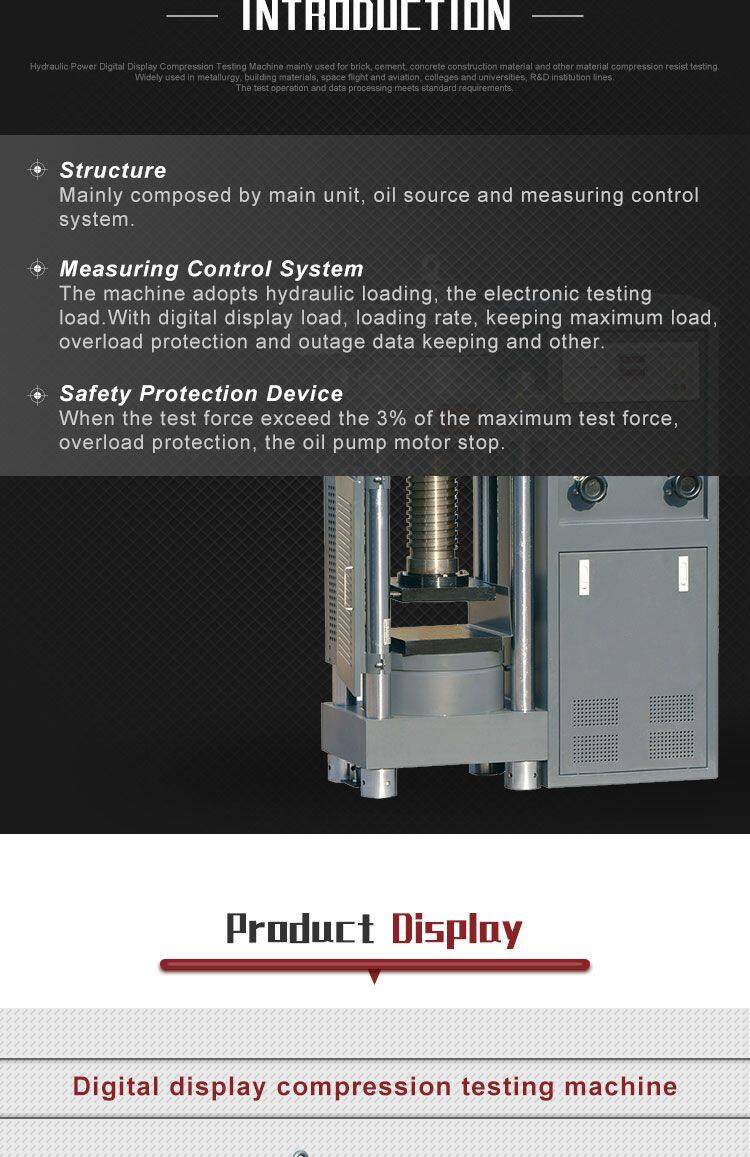

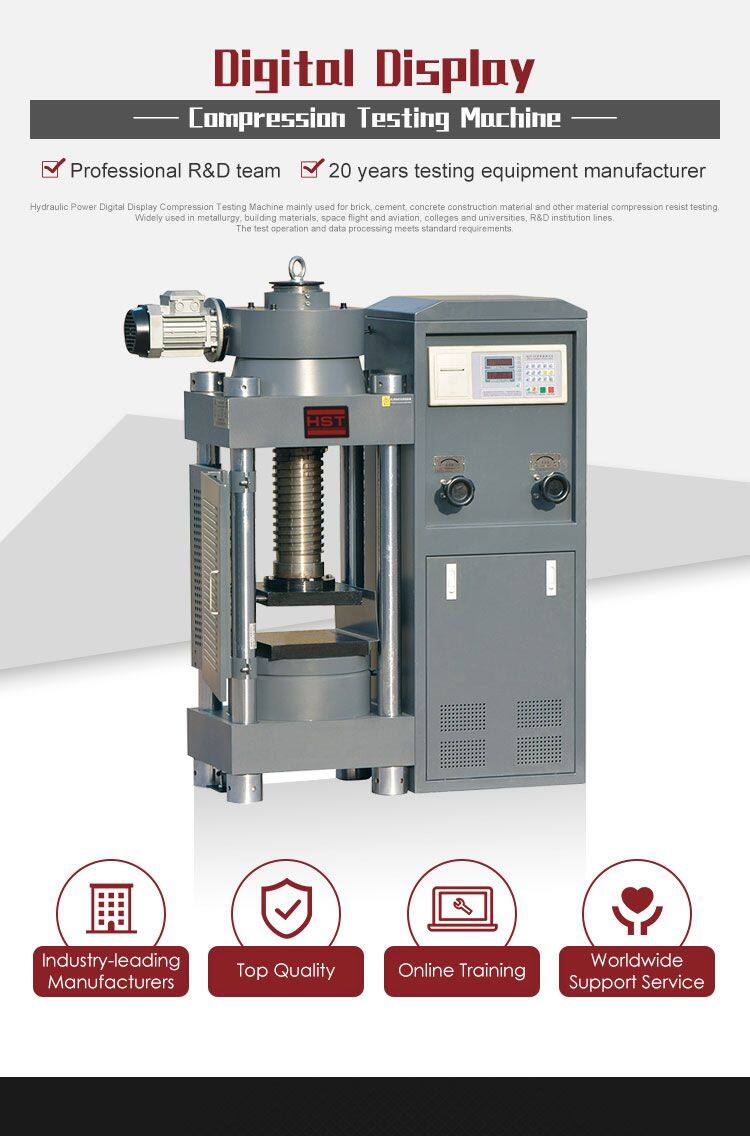

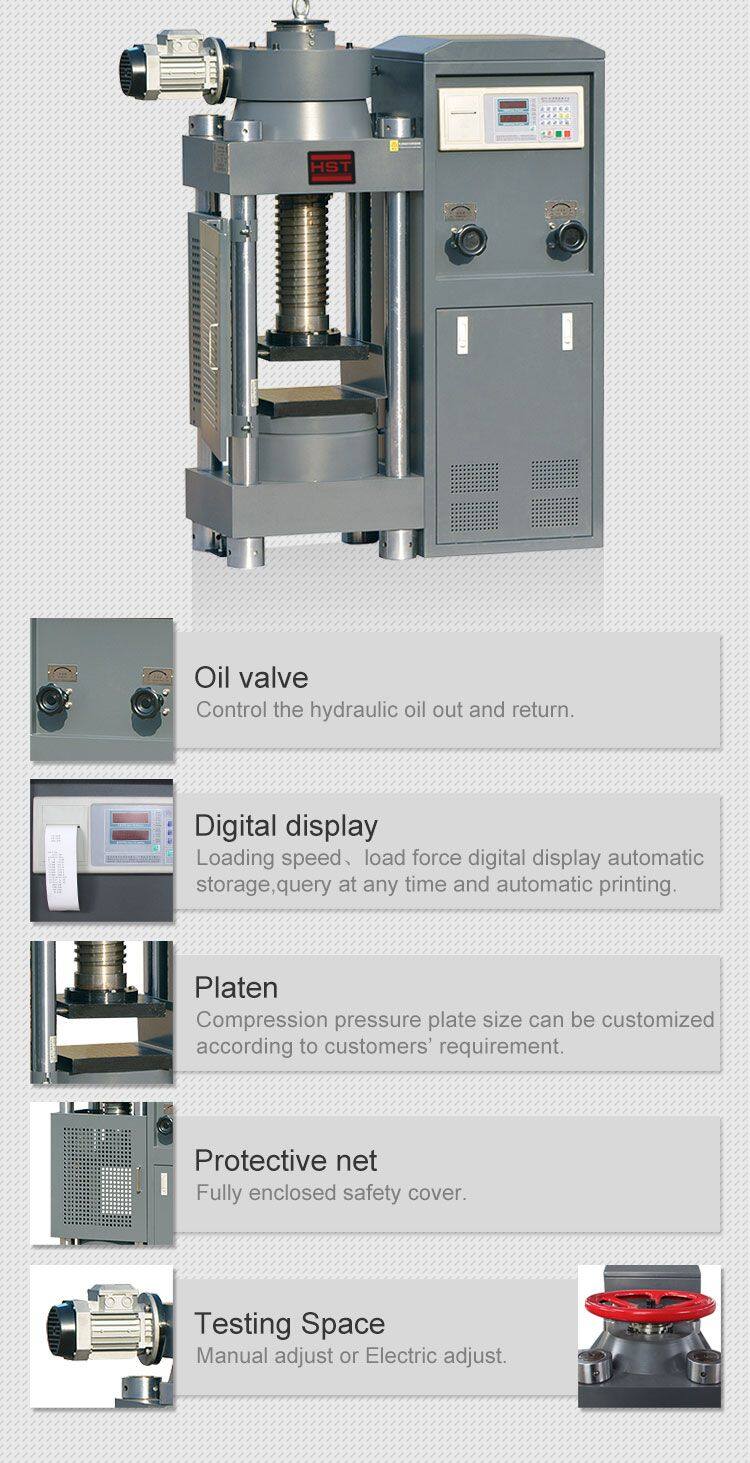

Product Application

 Compression testing machine application:

 Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.





Specification Data

 Main Specifications:



Model

YES-2000D

YES-3000D

Max. load

2000kN

3000kN

Class

1 class

1 class

Testing space regulating way

Electric ball screw adjust

Control way

Manual control load way

Oil source control cabinet structure form

One-piece bench oil source control cabinet

Range of test force

4% ~100%FS

Indicating value accuracy

±1%

Piston route

50mm

50mm

Max piston speed

20mm/min

20mm/min

Test width

330mm

340mm

Compression space

320mm

340mm

Upper Pressure plate size

240*240mm(Can be customized)

Lower pressure plate size

250*300mm(Can be customized)

Display

LCD

Power supply

2.1Kw/AC380V
