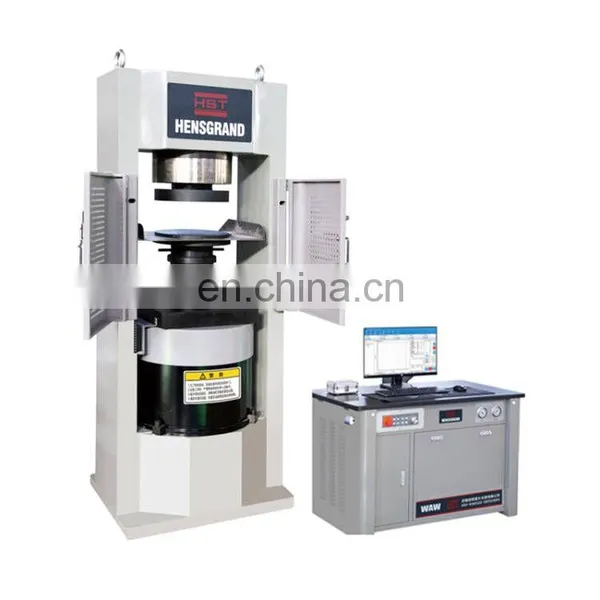

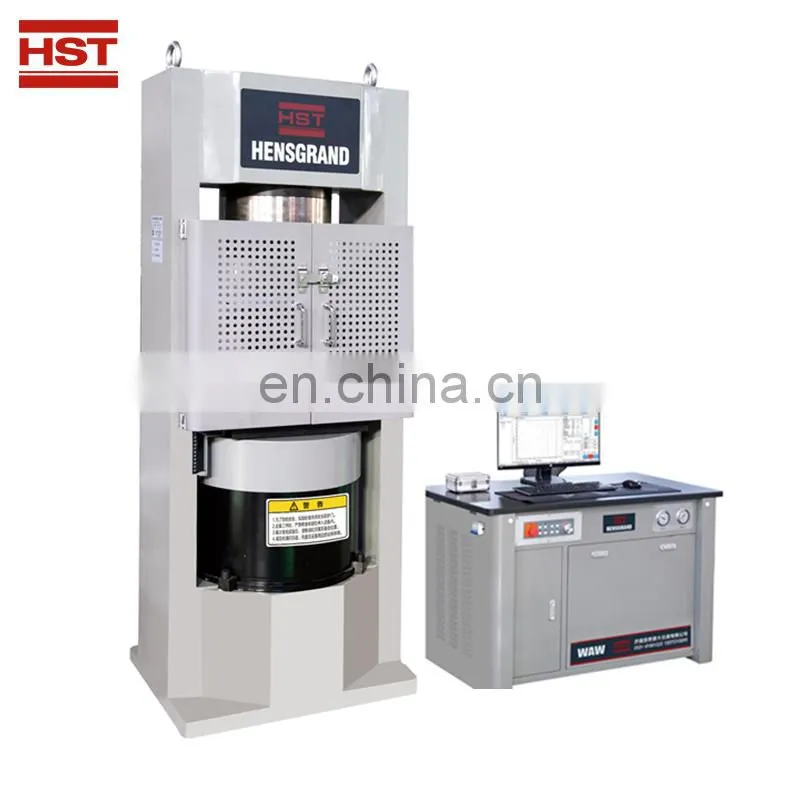

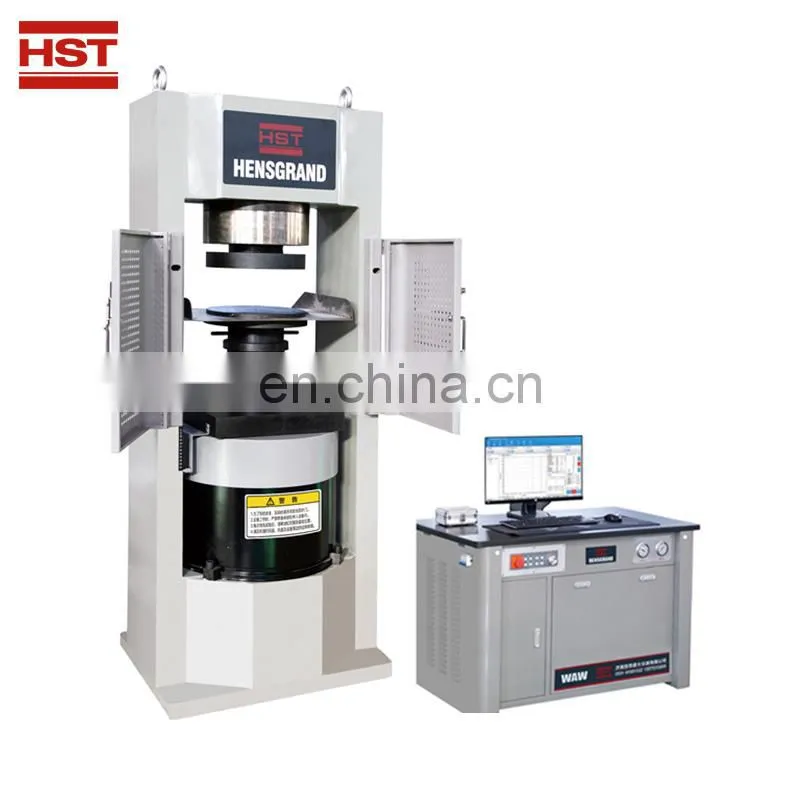

Heavy duty concrete laboratory equipment compression strength and bending test machine
Bending and compression testing machine application:
1. Application
YAW_D concrete compressio tester mainly used for concrete rupture strength testing,
cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
1). Computer control up, down, test, stop and loading progress.
2). Electric screw ball adjust test space.
3). Unibody desktop oil source control cabinet.
4). This machine consist of the host machine, oil source and control system.
5). Can realize the load rate, such as load or stress rate loading.
6). Can auto printing.
Main Specification
|
Model |
YAW-2000D |
YAW-3000D |
|
|
Max. Load |
2000kN |
3000kN |
|
|
Control method |
Computer auto control loading process |
||
|
Test space adjustment mode |
Electric ball screw adjust |
||
|
Oil source control cabinet structure |
One-piece oil source control cabinet |
||
|
Test class |
1 class |
||
|
Testing range |
4%-100%FS |
||
|
Load display accuracy |
Better than ±1% |
||
|
Piston stroke |
50mm |
80mm |
|
|
Distance between upper and lower plate |
320mm |
340mm |
|
|
Max space between two columns |
270mm |
280mm |
|
|
Size of upper and lower platen |
250×250mm |
260×260mm |
|
|
Power supply |
2.1Kw/AC380V |
2.3Kw/AC380V |
|
Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.
