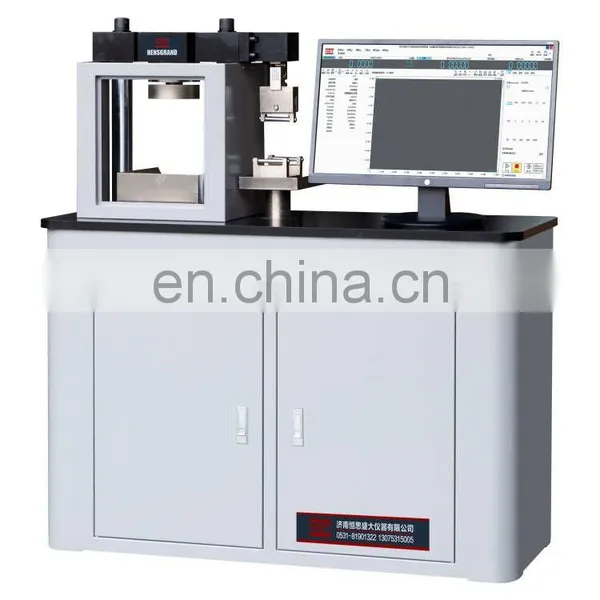

Help CenterYAW-2000D 2000KN Cement Concrete Block Construction Material Compressive Testing Machine Good Price
Related Products
-
YAW-1000D 100Ton Mortar Cement Brick Concrete Compression Testing MachineNegotiableMOQ: 1 -
YAW-100D Electronic MotoR Cement Compressive Flexural Strength Testing MachineNegotiableMOQ: 1
-
Concrete Compressive Strength Testing Machine Compressive Strength Testing MachineNegotiableMOQ: 1
-
Construction Material Testing Equipment Manufacturers/Concrete Testing Laboratory Equipment PriceNegotiableMOQ: 1
-
Compression Testing Machine For Concrete Lab Manual,Bricks/Compressive Strength Of Concrete Machine PriceNegotiableMOQ: 1
cement block construction material compressive testing machine good price
Bending and compression testing machine application:
1. Application
YAW_D concrete compressio tester mainly used for concrete rupture strength testing,
cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
1). Computer control up, down, test, stop and loading progress.
2). Electric screw ball adjust test space.
3). Unibody desktop oil source control cabinet.
4). This machine consist of the host machine, oil source and control system.
5). Can realize the load rate, such as load or stress rate loading.
6). Can auto printing.
Main Specification
|
Model |
YAW-2000D |
YAW-3000D |
|
|
Max. Load |
2000kN |
3000kN |
|
|
Control method |
Computer auto control loading process |
||
|
Test space adjustment mode |
Electric ball screw adjust |
||
|
Oil source control cabinet structure |
One-piece oil source control cabinet |
||
|
Test class |
1 class |
||
|
Testing range |
4%-100%FS |
||
|
Load display accuracy |
Better than ±1% |
||
|
Piston stroke |
50mm |
80mm |
|
|
Distance between upper and lower plate |
320mm |
340mm |
|
|
Max space between two columns |
270mm |
280mm |
|
|
Size of upper and lower platen |
250×250mm |
260×260mm |
|
|
Power supply |
2.1Kw/AC380V |
2.3Kw/AC380V |
|
Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.
