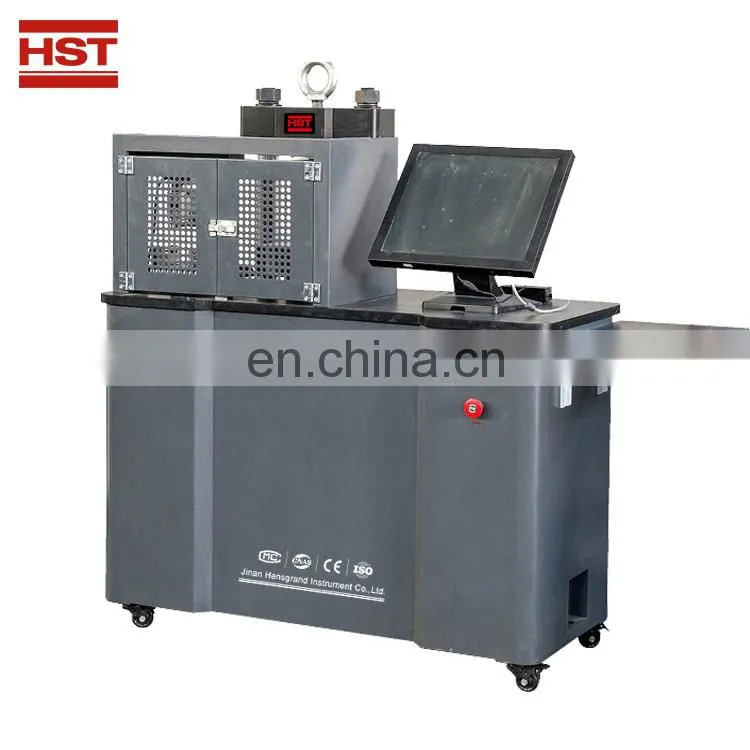

YAW-300G 300kn Electronic servo compression bending testing machine
1. Application
This machine adopt computer auto control, with constant test speed, constant stress, test force keeping and other control mode. The computer realize test data and test curve'display, save,manage function, can print test report. With special fixtures, can test other material compression and flexual testing.
2. Features:
2.1 This testing machine adopt AC servo system drive the AC servo motor,by precision reduction gears drives the ball screw,with high test accuracy,low noise.
2.2 Without pressure oil leakage and proportional valve blocking, low noise, more reliable.
2.3 Window control and dealing software, design more reasonable.
2.4 Can arbitrarily set pressure value, pressure time, auto calculate test result.
2.5 Advanced auto control function, can do single or batch test.
2.6 Auto stop,after sample broken.
2.7 With over load protection.
3. Main Specifications
Model |
YAW-300D |
YAW-300G |
Max compression test force(kN) |
300kN |
300
|
Max bending test force(kN) |
/ |
10 |
Test Accuracy |
±1% |
|
Test measurement range |
2%-100%FS |
|
Control way |
Computer control auto loading progress |
|
Constant loading speed |
0.1KN/S~10KN/S |
|
Test space adjustment method |
Block adjustment test space |
|
Speed |
0.01-50mm/min |
|
Max compression space |
200mm |
|
Upper and lower compression plates size |
Φ280 |
|
Size |
570*410*1340mm |
|
Power supply |
220V, 50HZ, 1.5 KW |
|
