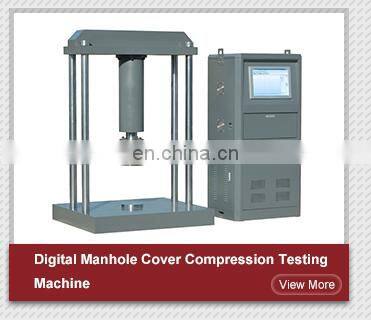

HYJ-600S 600kn 60Ton Digital Display Manhole Cover Pressure Compression Testing MachineNegotiableMOQ: 1

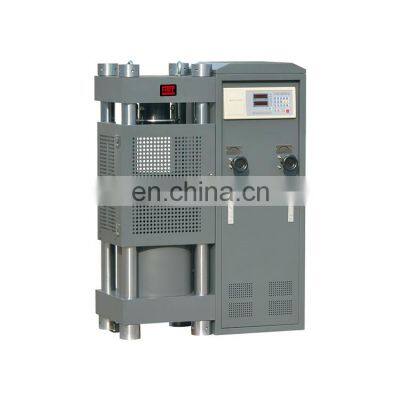

New design micro servo concrete machine microcomputer compression testing equipment with CE certificate
1.Application:

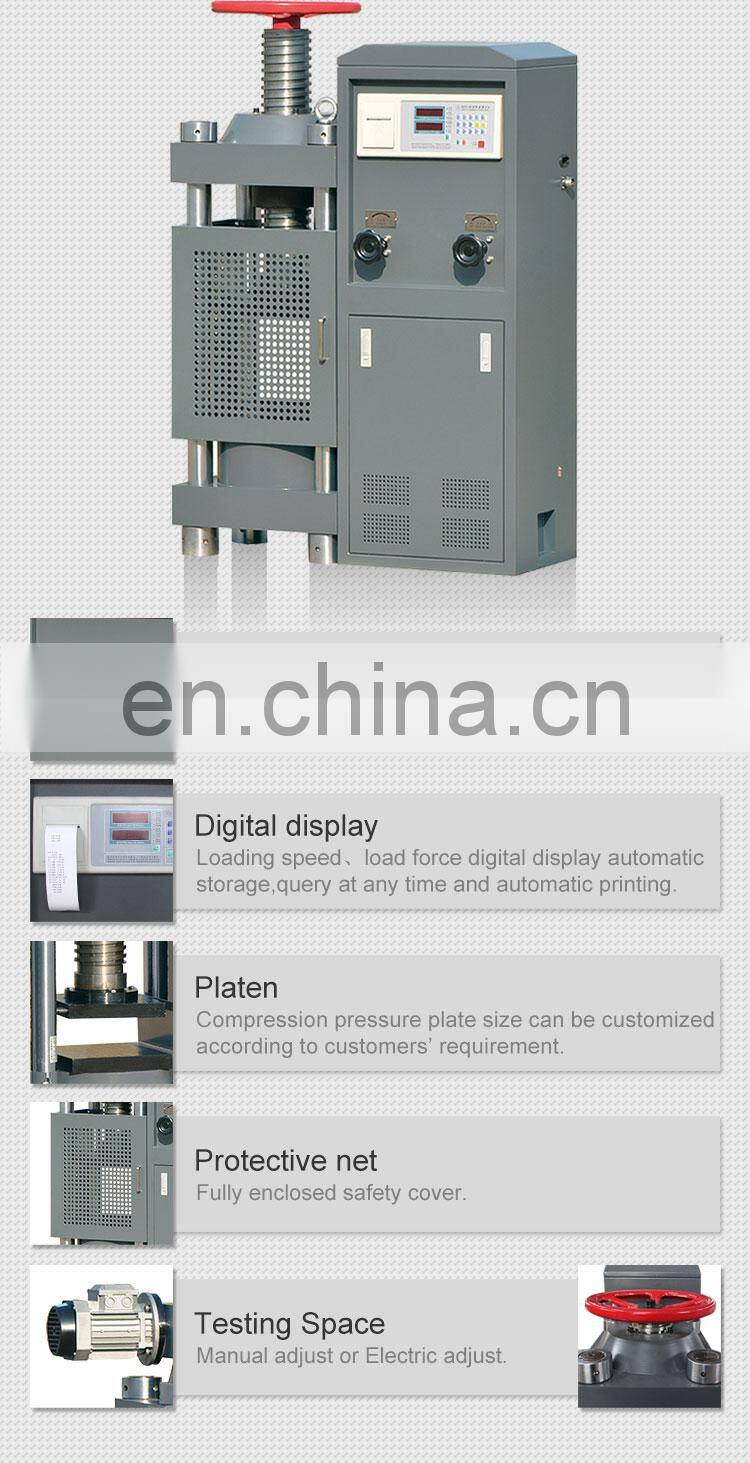

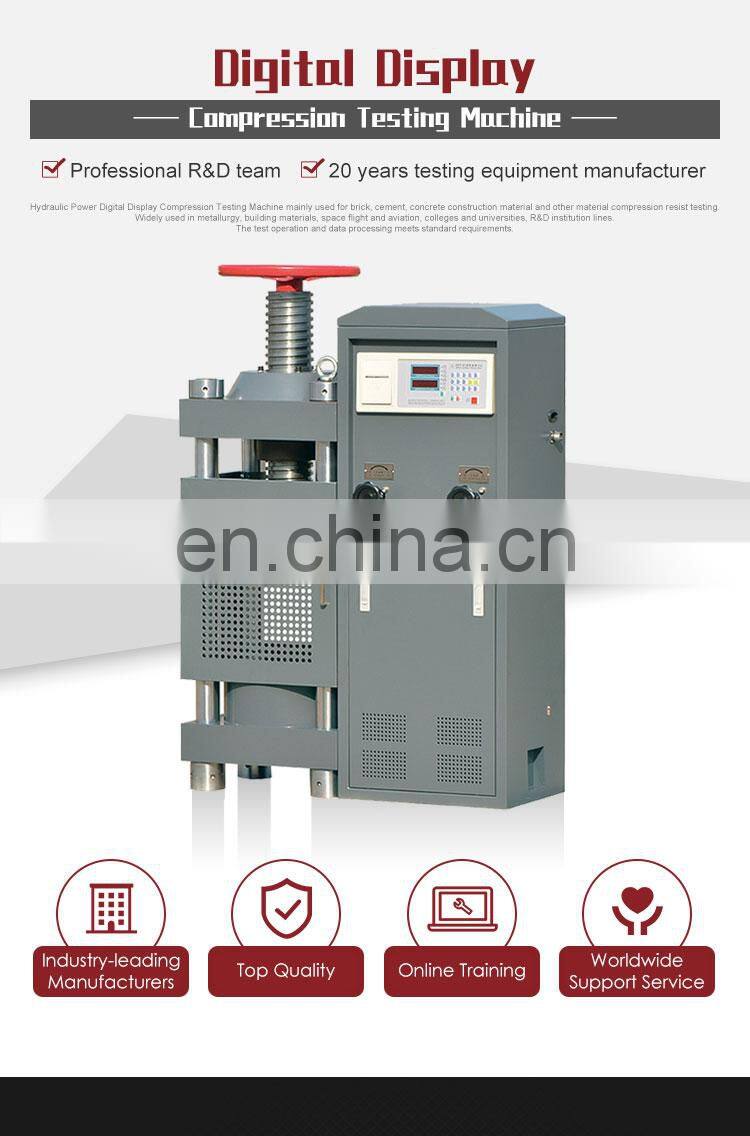

YES-2000 Digital Display Compression Testing Machine mainly used for Concrete Cube and other
material compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,
R&D institution lines. The test operation and data processing meets standard requirements.
2.Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.
3.Main Specifications:
Model | YES-2000/1000 |
Max. Load | 1000/2000 kN |
Class | 1 Class |
Testing Space Regulating Way | Manual Ball Screw Adjust |
Control Way | Manual Control Load Way |
Oil Source Control Cabinet Structure Form | One-piece Bench Oil Source Control Cabinet |
Range Of Test Force | 4% ~100% FS |
Indicating Value Accuracy | ±1% |
Piston Stroke | 50mm |
The Largest Spacing Of Upper And Lower Pressure Plate | 320mm |
The Largest Spacing Of Two Columns | 270mm |
Pressure Plates Size | 250*250mm(L*W) |
Display | LCD Digital Display |
The Host Dimension | 900×400×1150mm |
Power Supply | 1KW/AC380V |
Weight | 750 KG |
