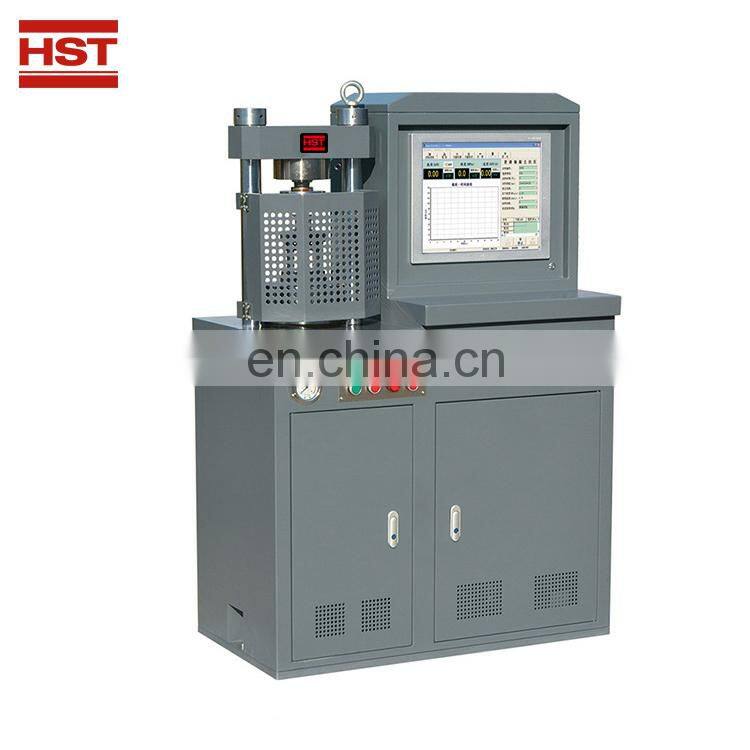

Help CenterYAW-300C 300KN Concrete Electronic Electromechanical Compression Compressive Testing Equipment
Related Products
-
HST YAW-300C 300KN Electronic Concrete Flexural Strength Compression Testing MachineNegotiableMOQ: 1 -
HST-RP Paper Edge Pressure Testing Ect Rct Fct Pat Cmt Test Machine Ring Crush Strength Tester With Great PriceNegotiableMOQ: 1
-
HST-RP Lab Carton Rct Ect Pressure Crushing TestingNegotiableMOQ: 1
-
Paper Carton CMT CCT ECT PAT Ring Crushing Testing MachineNegotiableMOQ: 1
-
HST-R40 Strength For Automatic Testing Machine Cardboard Bursting Tester Made in ChinaNegotiableMOQ: 1
Concrete Compressive and Flexural Strength Test Equipment
Bending and compression testing machine application:
This machine adopt computer auto control, with constant test speed, constant stress, test force keeping and other control mode. The computer realize test data and test curve’display, save,manage function, can print test report. With special fixtures, can test other material compression and flexual testing.
It can fulfill the test automatically according to the requirements, which lists in the inspection method for the strength of cement and mortar, also possess the below advantages, such as: realizing screen display of test data and test curves. It is ideal inspection equipment for factories, laboratory and education, etc.
Features and Function:
1. This testing machine adopt AC servo system drive the AC servo motor,by precision reduction gears drives the ball screw,with high test accuracy,low noise.
2. Without pressure oil leakage and proportional valve blocking, low noise, more reliable.
3. Window control and dealing software, design more reasonable.
can arbitrarily set pressure value, pressure time, auto calculate test result.
4. Advanced auto control function, can do single or batch test.
5. Auto stop,after sample broken.
6. With over load protection.
Main Specification
|
Max compression test force |
300kN |
|
Max flexual test force |
10kN |
|
Test force range |
2%~100%FS |
|
Test force accuracy |
≤±1% |
|
Load speed |
0.1~9.9KN/S |
|
Displacement indicate error |
±1% |
|
Displacement resolution |
0.01mm |
|
Displacement speed adjust |
0.01~40mm/min |
|
Control and deal mode |
Computer constant control and auto dealing |
|
Effective test width |
300mm |
|
Space between upper and lower |
280mm (optional) |
|
Effective compression space |
50mm |
|
Compression plate size |
140mm |
|
Machine size |
630*457*1410mm |
|
Power supply |
220V,50Hz,1500W |
Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.
