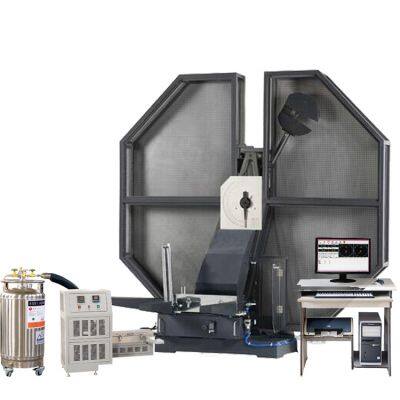

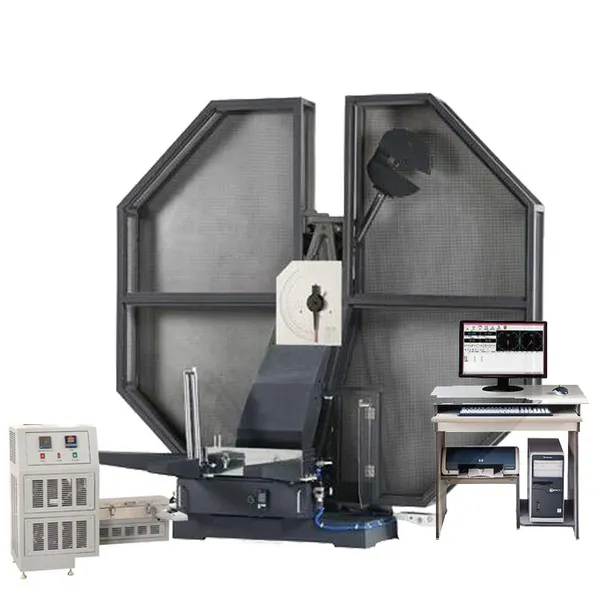

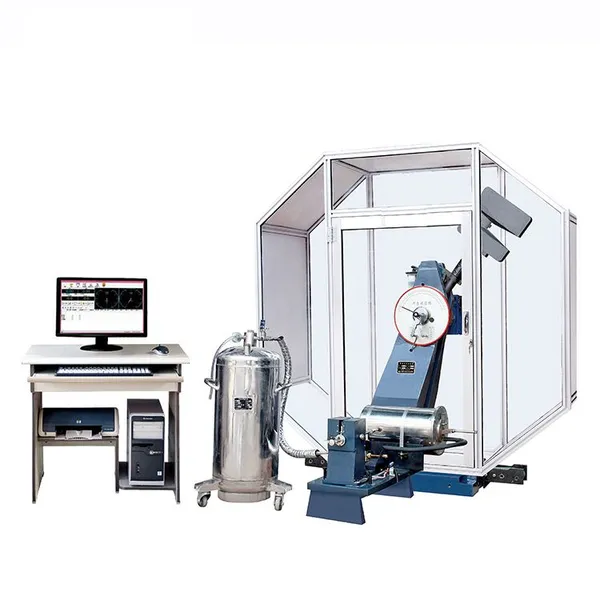

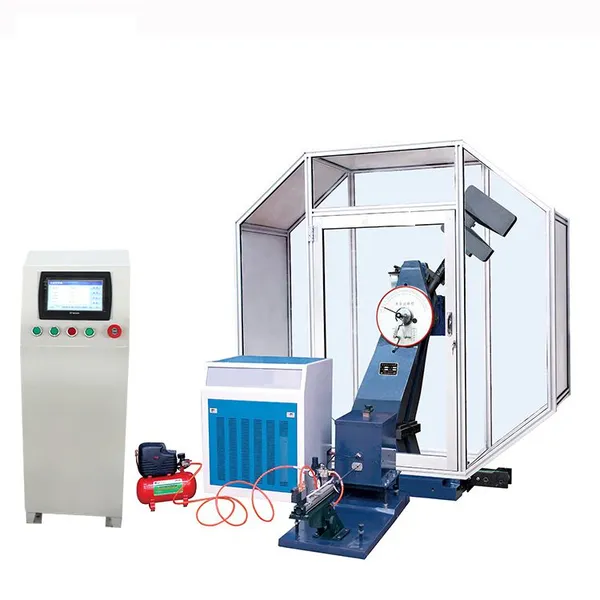

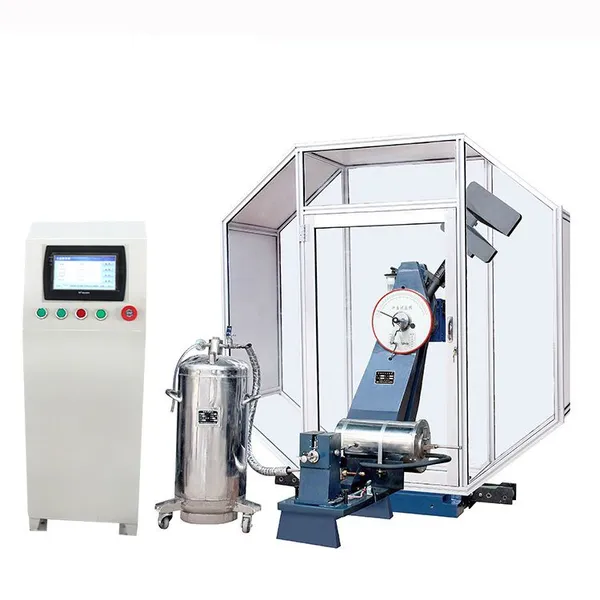

JBW-HD Computer Control Low Temperature Instrumented Oscilloscope Impact Tester/Impact testing machine
Skype: hstbetty009 Tel:86-15866781190
JBW-HD Computer Control Low Temperature Instrumented Oscilloscope Impact Tester
1. Introduction :
This machine applicable to ISO14556:2000 Steel-charpy V-notch pendnlum impact test-Instvumented test method ;GB/T19748-2005 Metal charpy v-notch pendulum impact test instrumentation test method ;GB/T3808-2002 Pendulum impact testing machine test . By testing the impact value, data collection and analysis of the impact process, energy change curve drawing, material fracture at different stages clear physics meaning and explanation, to study, analyze the material fracture behavior of the process, to provide accurate data in detail.
2. Product Description :
JBW-H series of instrumented impact testing machine testing machine for automatic control, raise pendulum, hanging pendulum, the shock and braking are all electrical control operation, and can be placed in the thrust sample automatically after raising ready for the next impact test, by varying impact pendulum, can provide the biggest impact energy: 150J.300J.450J.750J.
The impact tester adopts data acquisition system, 0321 the voltage signal into digital signal, increased the data storage and computer, the collected signal as impact time and impact - displacement, displacement of time and energy - time curve, the stress of the given image to be thrust sample and the deformation process, the impact test are making a big push, comprehensive, thoroughly improve to the level equal to the current electronic tensile test, impact test is from the primitive state of leap into the advanced ranks of digital test instrument.
Test data acquisition, automatic recording and output by the measurement and control system. Dial the adjustment is convenient testing machine Settings, use pointer calibration data compared with the data from the detection system, in order to verify the reading of the dial and energy testing system accuracy deviation of reading.
3. Technique Feature :
1.The main frame pillar and base of integration design, the overall casting processing, good rigidity, improve the stability of the test;
2.The pendulum adopts simply supported beam, bearing radial load distribution reasonable, the host stiffness good ;
3.Adopts double standard gearmotors raise the pendulum , hanging pendulum device adopts hydraulic buffer, hanging smoothly .
4.Round pendulum design to ensure accurate strike center, the pendulum torque accurately.
5.Shock knife with screw mounting, easy to replace;
4. Standard :
1. GB/T19748-2005 Steel charpy v-notch pendulum impact test (instruments) method
2. ISO 14556 : 2000(E) Bend steel - charpy v-notch impact test - instrumented test method
3. ASTM E23 Steel charpy v-notch pendulum impact test instrument method
4. GB/T3808-2002 pendulum impact tester,
5. JJG145 Pendulum impact testing machine verification procedures
5. Technical Parameters
|
Model |
JBW-150H |
JBW-300H |
JBW-450H |
JBW-600H |
JBW-750H |
|
Control Way |
Computer Control |
||||
|
Max. Impact Energy |
150J |
300J |
450J |
600J |
750J |
|
Impact Speed |
5.24m/s |
||||
|
Pendulum pre-raising Angle |
150 |
||||
|
Angle Accuracy |
±0.1° |
||||
|
Specimen Bearer Span |
40mm |
||||
|
Round angle of the jaw |
R1.0~1.5mm |
||||
|
Round angle of impact edge |
R2.0~2.5mm(R8mm) |
||||
|
Impact blade Angle |
30° |
||||
|
Impact blade thickness |
16mm |
||||
|
Distance between the Pendulum center and impact point |
750mm |
||||
|
Standard Specimen Size |
10×10(7.5 or 5)×55mm |
||||
|
Load Sensor Accuracy |
≤±1 FS |
||||
