Product Description

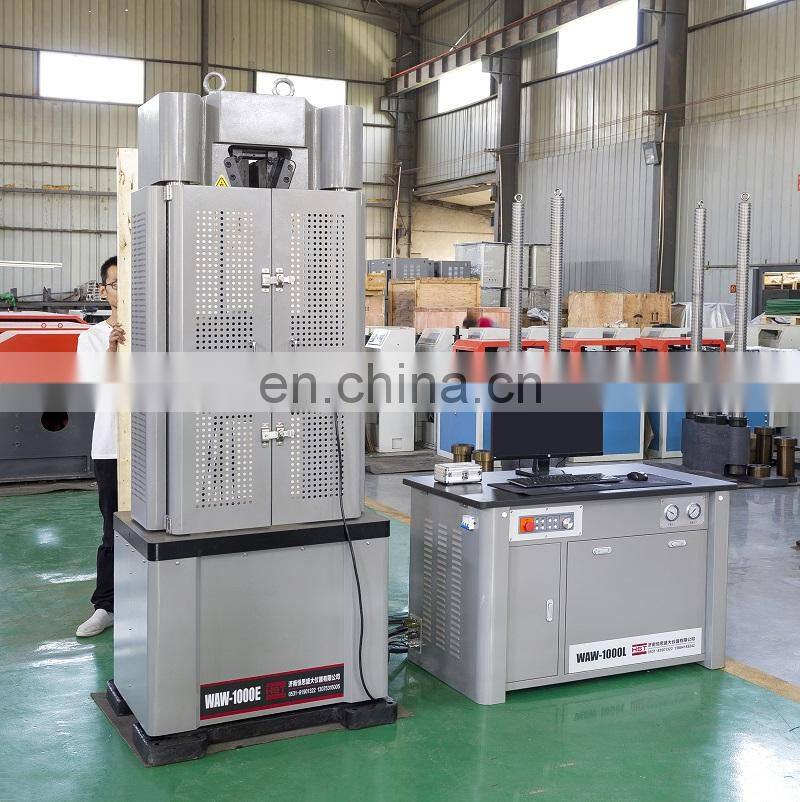

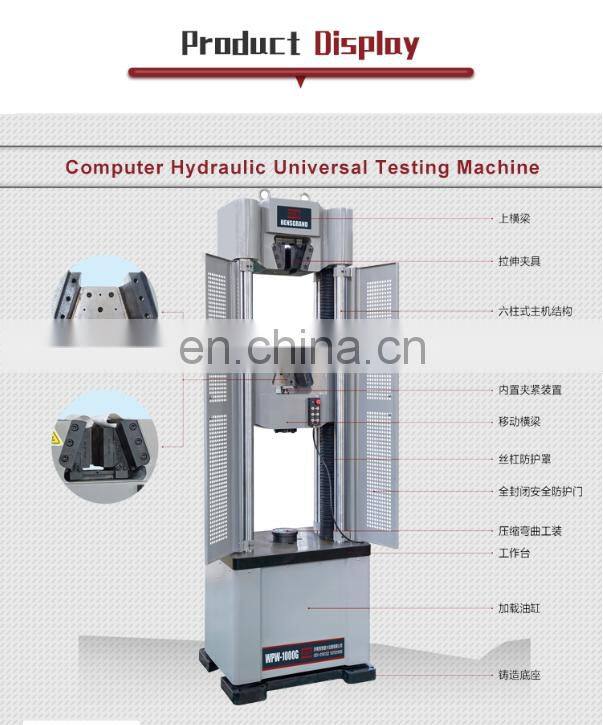

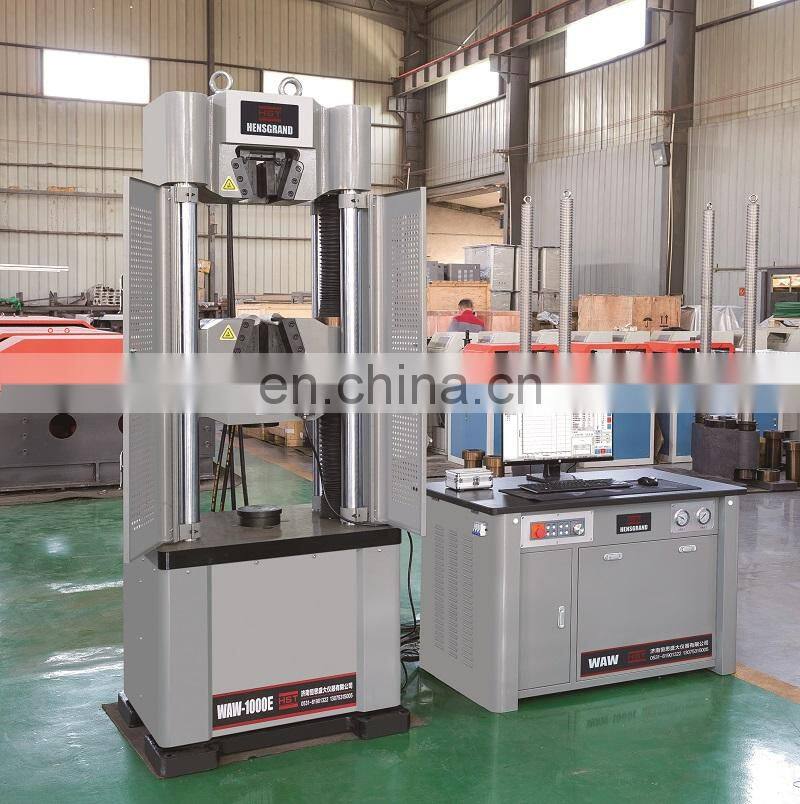

WEW-300KN 30 ton 10 ton hydraulic universal tensile testing machine price
1. Application

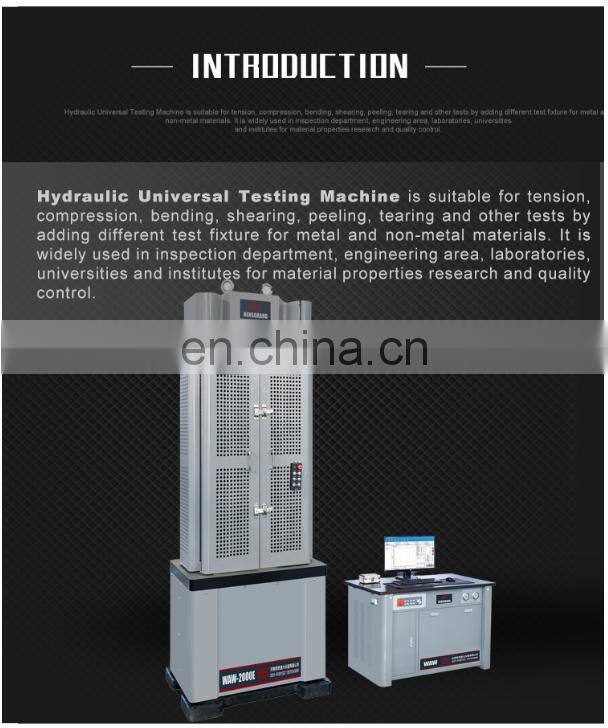

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2. Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3. Main specifications
Model | WEW-300D |
Structure | 6 column |
Control way | loading process manual control,computer automatic data dealing |
Max.load | 300kN |
Load accuracy | ≤±1% /≤± 0.5% |
Load range | 2%-100%FS /0.4%-100%FS |
Load resolution | 1/300000 |
Deformation Measurement Range | 2%~100%FS |
Deformation accuracy | ≤±1%/± 0.5% |
Displacement resolution | 0.01mm |
Displacement error | ≤±0.5% |
Max.piston stroke | 250mm |
Max piston moving speed | 0-140mm/min Manual adjustment |
Crosshead lifting speed | 200 mm/min |
Max. tension test space | 650mm (can customize) |
Max.Compression Test Space | 500mm (can customize) |
Column clearance | 430mm |
Clamping method | Hydraulic clamp |
Round specimen clamping range | Φ10-20 , Φ20-Φ32 (Φ4-Φ10 Optional) |
Flat specimen clamping range | 0-15 (15-30 Optional) |
Flat specimen clamping width | 75mm |
