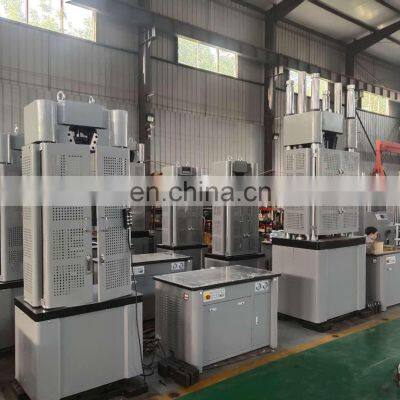

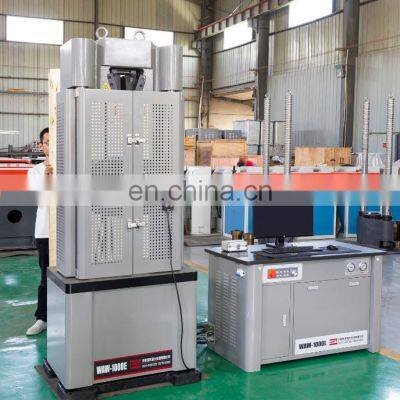

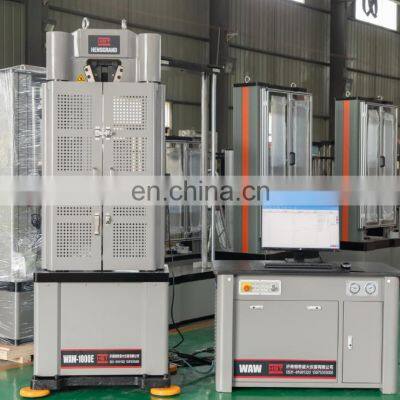

WAW-500 D/E 500 kn Steel Computer Servo hydraulic utm 500t tensile testing machine
Contact: Alice Skype: hssdtest whatsapp /wechat/mobile:17853101076
1. Application
Universal Tensile Strength Testing Machine price is suitable for tension, compression,
bending, shearing,peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards of universal testing machine price
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications universal testing machine price
|
Model |
WAW-100D |
WAW-200D WAW-300D |
WAW-600D |
WAW-1000D/E |
WAW-1200E |
||||
|
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
||||||||
|
Number of Screw drivers |
4 |
||||||||
|
Max. Load(KN) |
100 |
200 /300 |
600 |
1000 |
1200 |
||||
|
Load Accuracy |
≤± 1%/ ≤± 0.5% |
||||||||
|
Load Range |
2%~100%FS |
||||||||
|
Load Resolution |
1/300000 |
||||||||
|
Deformation Measurement Range |
2%~100%FS |
||||||||
|
Deformation Accuracy |
≤± 1% |
||||||||
|
Displacement Resolution |
0.01mm |
||||||||
|
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
||||
|
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
||||
|
Displacement Error |
≤±0.5% |
||||||||
|
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
||||
|
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
||||
|
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
||||
|
Column Effective Spacing(mm) |
485 |
485 |
500 |
560/580 |
610 |
||||
|
Clamping Method |
Hydraulic Automatic Clamp |
||||||||
|
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
||||
|
Compression Plate Size |
Φ 160mm |
||||||||
|
Bending Roller Distance |
450mm |
||||||||
|
Width Of Bending Rollers |
120mm |
||||||||
|
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
||||||||
