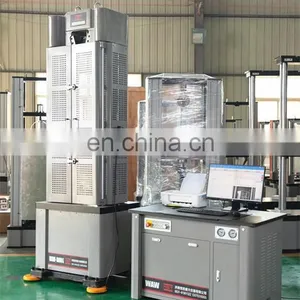

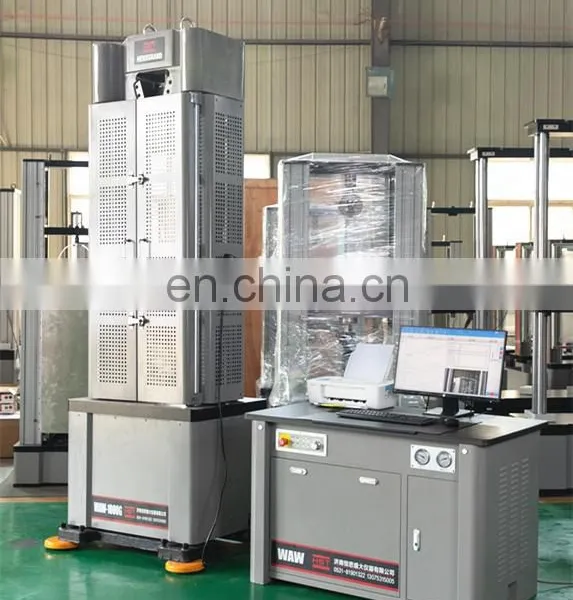

HSTAutomatic Force Tester 60ton Electro Hydraulic Servo Universal Testing Machine With Great Price

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2009

Factory Size:

1,000-3,000 square meters

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

HSTAutomatic Force Tester 60ton Electro Hydraulic Servo Universal Testing Machine with great price

Product Description

Specifications

NO.	Items	Model	WDW-10E	WDW-20E	WDW-30E	WDW-50E	WDW-100E
1	Host	Structure	column and 2 Ball Screw
		Max. Load(kN)	10	20	30	50	100
		Tensile space(mm)	670			770	650
		Compression space(mm)	900			1000	1000
		Effective test width	450			450	550
		size(mm)	850 x 590 x 1750			840 x 570 x 1850	950x660x2000
		Host Weight (kG)	370			420	680
		Power Supply	220V/50-60Hz
2	Control System	Controller	24 bit AD, external controller
		communication mode	USB 2.0
		Test software	HKTest
		Hand control box	320x240 Display Sscreen,8 key control
3	Process Specifications	Servo motor	TAIWAN "TECO"
		Speed(mm/min)	0.01-1000				0.01-500
		Displacement resolution	0.4 pm				0.2 pm
4	Test Specifications	Load cell	USA(max load): one can add more load cell
		Load accuracy	Class 0.5, EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5
		Measuring range	0.2%~100%
5	Safety Protection	strong electric drive system	24V voltage control, with over current overloading protection function
		Position limit switch	Upper and lower lights
		Power	Power light,leak current protection device
		Automatic protection	Overload 10%, automatic protection
		Position limit protection	Hall switch
6	Other Configuration	Equipment level adjusting device	φ80mm vibration-absorptive cushioning iron
		Hand control box fixing device	Standard
Note:Extra wide and/or extra height frames are available.Power supply system is completely customizable.Tensile space, test width, and speed is completely customizable.
