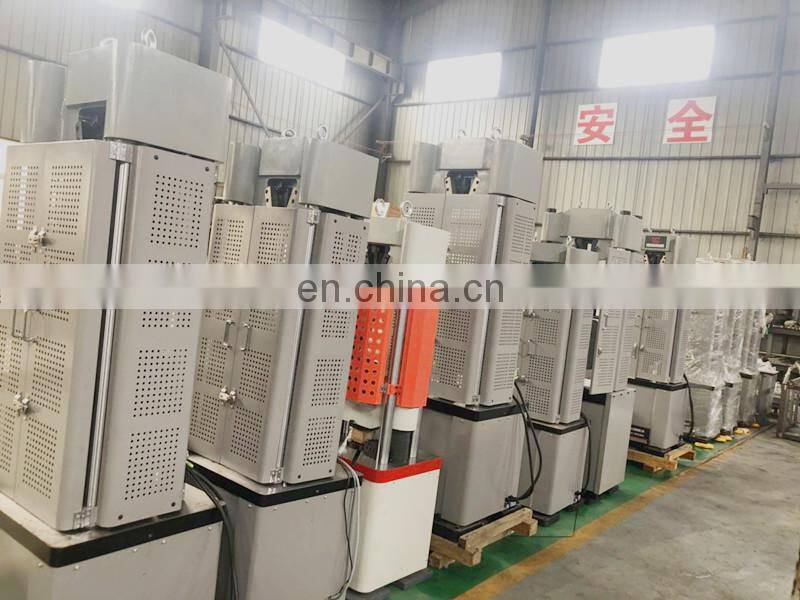

WAW-2000E 200ton Hydraulic tensile testing machine utm
- T/T Credit Card
You May Like
-
WAW 20ton 30ton 60ton 100ton 200ton Hydraulic tensile testing machine utm
-
WAW 2000E 6 Columns 200ton Steel Rebar Bolt tensile machine
-
WAW 1000D 6 Columns Computer Servo 1000KN 100 ton utm machine price
-
HST WAW series 300kN 500kN 600kN 1000kN 2000kN load cell servo hydraulic utm universal testing machine tester price
-
HST WAW-1000 universal machine,universal price,tensile trength testing machine
-
HST WAW-1000 Computer display hydraulic universal Testing machine
Product Description
WAW 20ton 30ton 60ton 100ton 200ton Hydraulic tensile testing machine utm
1. Application
Hydraulic Universal hydraulic Metal Tensile Strength Testing Machineis suitable for tension,
compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications
|
Model |
WAW-100D |
WAW-200D WAW-300D |
WAW-600D |
WAW-1000D/E |
WAW-1200D |
WAW-2000D |
|
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
|||||
|
Number of Screw drivers |
4 |
|||||
|
Max. Load(KN) |
100 |
200 /300 |
600 |
1000 |
1200 |
2000 |
|
Load Accuracy |
≤± 1%/ ≤± 0.5% |
|||||
|
Load Range |
2%~100%FS |
|||||
|
Load Resolution |
1/300000 |
|||||
|
Deformation Measurement Range |
2%~100%FS |
|||||
|
Deformation Accuracy |
≤± 1% |
|||||
|
Displacement Resolution |
0.01mm |
|||||
|
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
0.1~70 |
|
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
320 |
|
Displacement Error |
≤±0.5% |
|||||
|
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
250 |
|
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
1250 |
|
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
850 |
|
Column Effective Spacing(mm) |
485 |
485 |
500 |
560/580 |
610 |
800 |
|
Clamping Method |
Hydraulic Automatic Clamp |
|||||
|
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
150*120 |
|
Compression Plate Size |
Φ 160mm |
|||||
|
Bending Roller Distance |
450mm |
|||||
|
Width Of Bending Rollers |
120mm |
|||||
|
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
|||||
4. Our machine feaures: metal material laboratory equipment
1. It has three parts: Host & oil source &measurement control system
2. Automatic rise, down, test and stop
3. Deepen jaw seat can prevent trumpet-shaped deformation as non-uniform stress in the test, can improve the soundness and life, make holding more firm and smooth
4. Between the jaw seat and jaw plate added wear-resisting backing board, protect the jaw seat and card plate, making the jaw seat more flexible
5. Between the host base and screw using the cone bearing which make screw rotation more stable and reliable, while solved the gap influence in the test progress
6. The middle cross bar adopt the adjustable gap nut mechanism, eliminated the gap and improve the measuring performance
7. All inclusive type host designed to ensure that its super stiffness to resist loads trace deformation
