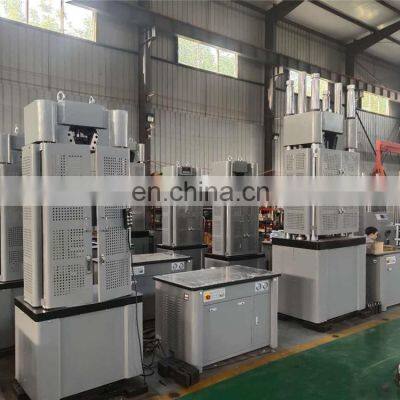

300kn hydraulic 100kn universal testing machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

300kn hydraulic 100kn universal testing machine

Product Application

The machine adopts hydraulic loading, digital display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, shearing etc. Mainly test for metal materials.

Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber and so on. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.

Specification Data

Good price for computer display hydraulic universal Testing machine specification :

Model	WAW-100D	WAW-300D	WAW-600D	WAW-1000D/E	WAW-1200D	WAW-2000D
Control Way	Constant stress uniform deformation constant displacement three closed loop control and program control dealing
Number of Screw drivers	4
Max. Load(KN)	100	300	600	1000	1200	2000
Load Accuracy	≤± 1%/ ≤± 0.5%
Load Range	2%~100%FS
Load Resolution	1/300000
Deformation Measurement Range	2%~100%FS
Deformation Accuracy	≤± 1%
Displacement Resolution	0.01mm
Testing speeds (mm/min)	0.1~118	0.1~123	0.1~123	0.1~70	0.1~70	0.1~70
Adjustable crosshead speed(mm/min)	450	450	350	350	320	320
Displacement Error	≤±0.5%
Max. Piston Stroke(mm)	200	200	200	200/250	250	250
Max. Tension Test Space (mm)	780	780	900	950/980	930	1250
Max. Compression Test Space	550	550	650	700	640	850
Column Effective Spacing(mm)	485	485	500	560/580	610	800
Clamping Method	Hydraulic Automatic Clamp
Flat Specimen Clamping Width(mm)	80*80	80*80	90*90	100*100	120*110	150*120
Compression Plate Size	Φ 160mm
Bending Roller Distance	450mm
Width Of Bending Rollers	120mm
Power Supply	3-phase, AC380V, 50Hz (Can Be Customized)
