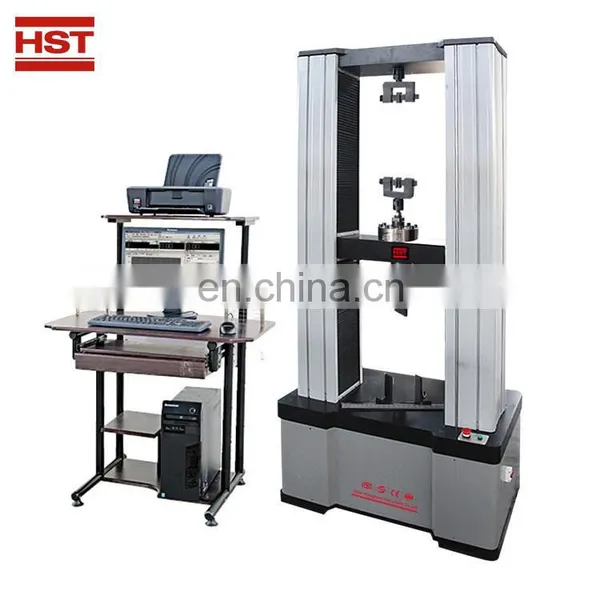

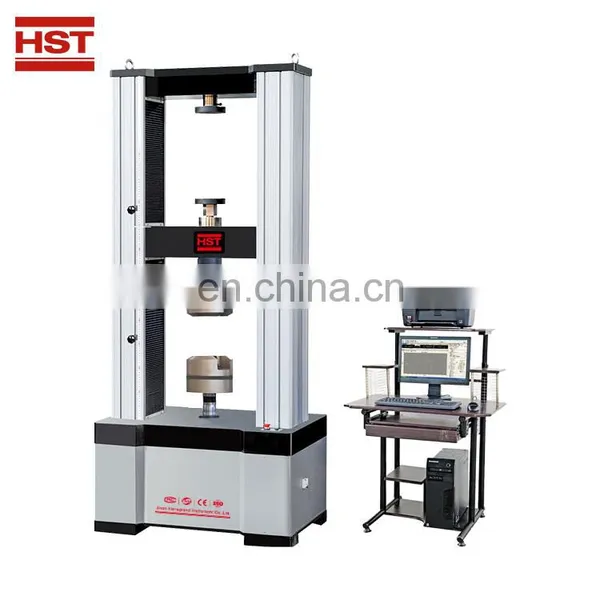

New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price

New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price thumbnail-1
New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price thumbnail-2
New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price thumbnail-3
New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price thumbnail-4
New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price thumbnail-5
New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price photo-1
New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price photo-2
New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price photo-3
New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price photo-4
New Design 10kn 20kn 100kn Computer Electronic Universal Testing Machine Four Point Bending Testing Machine With Low Price photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2009
Factory Size:
1,000-3,000 square meters
Contact Supplier Request Quote Chat Now
Hst Group Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

New design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low price

Product Description

 New design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low priceNew design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low priceNew design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low priceNew design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low priceNew design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low price

Main configuration



1. Application:

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.



2.Standard:

ASTM, ISO, DIN, GB and other international standards.



3.Main Technical Parameters:



Model

WDW-10kN

WDW-20kN

WDW-50kN

WDW-100kN

WDW-200kN

WDW-300kN

Max. Load(kN)

10

20

50

100

300

Crosshead-Table distance

1140









Tensile space(mm)

800

800

700

700

550

Compression space(mm)

800

800

700

700

550

Effective test width(mm)

400

400

500

550

600

Ambient temperature

+10 ... +35 °C

Conformity

ISO 9000 and CE

Force transducer

Load accuracy

Standard

Class 1, Conforms to EN 10002-2 Grade1, ISO75001-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1

High-Precision

Class 0.5, Conforms to EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5

Load range

2%~100%F·S/ 0.2%~100%F·S

Load resolution

1/500000

Displacement transducer

Resolution of deformation

0.04um

Accuracy of displacement

Within±0.5%of indicating load

Resolution of displacement

0.01mm


New design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low price

New design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low priceNew design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low price

More Information

We have digital model and computer control models for choice:



New design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low priceNew design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low priceNew design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low price New design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low price New design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low price New design 10kn 20kn 100kn Computer Electronic Universal Testing Machine four point bending testing machine with low price
