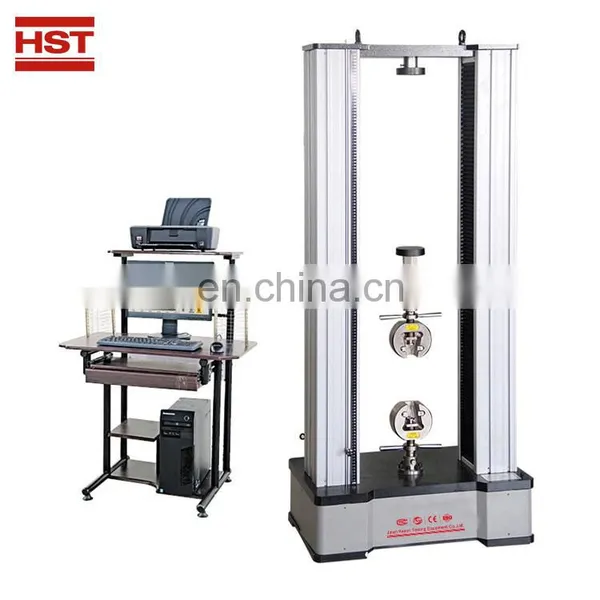

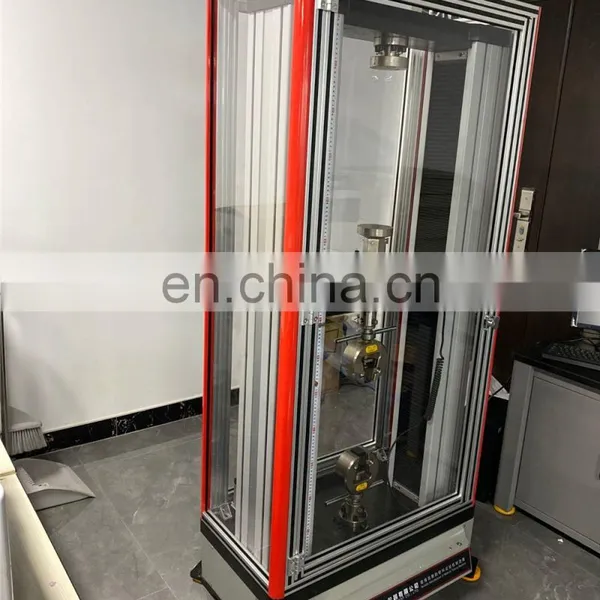

Hot selling 30kn computerized 30t compressive compression strength 200kn electronic universal testing machine
1. Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
Model |
WDW-10kN |
WDW-20kN |
WDW-50kN |
WDW-100kN |
WDW-200kN WDW-300kN |
|||||
Max. Load(kN) |
10 |
20 |
50 |
100 |
300 |
|||||
Crosshead-Table distance |
1140 |
|
|
|
|
|||||
Tensile space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
Compression space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
Effective test width(mm) |
400 |
400 |
500 |
550 |
600 |
|||||
Ambient temperature |
+10 ... +35 °C |
|||||||||
Conformity |
ISO 9000 and CE |
|||||||||
Force transducer | ||||||||||
Load accuracy |
Standard |
Class 1, Conforms to EN 10002-2 Grade1, ISO75001-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1 |
||||||||
High-Precision |
Class 0.5, Conforms to EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5 |
|||||||||
Load range |
2%~100%F·S/ 0.2%~100%F·S |
|||||||||
Load resolution |
1/500000 |
|||||||||
Displacement transducer | ||||||||||
Resolution of deformation |
0.04um |
|||||||||
Accuracy of displacement |
Within±0.5%of indicating load |
|||||||||
Resolution of displacement |
0.01mm |
|||||||||
We have digital model and computer control models for choice:
