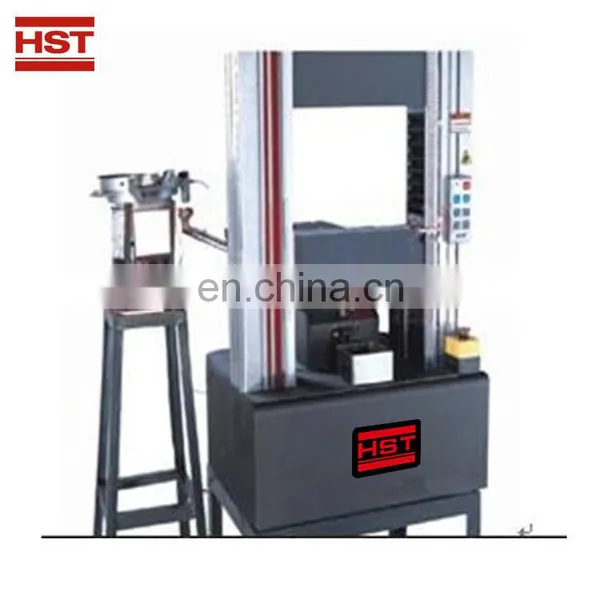

WDW-1000 1000KN Computer Control Electronic Universal Testing Machine
Main Unit Feature:
1.Adopt single column structure, lower for tensile, upper for compression, double space. The beam is stepless lifting, light but rigid.
2.Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
3.The photoelectric encoder is the displacement sensor, with high resolution, strong anti-interference ability.
4.The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
|
Model |
WDW-500 |
WDW-500E |
WDW-600 |
WDW-600E |
|
|
Max. Load(kN) |
500 |
500 |
600 |
600 |
|
|
Structure |
Four-column floor (upper is compression and lower is tensile) |
||||
|
Cover |
All aluminum alloy |
||||
|
Control method |
Computer control |
||||
|
Load accuracy |
Class 1 |
Class 0.5 |
Class 1 |
Class 0.5 |
|
|
Load range |
2%~100%F·S |
0.2%~100%F·S |
2%~100%F·S |
0.2%~100%F·S |
|
|
Load resolution |
1/300000 |
||||
|
Rang of deformation |
4%-100%FS |
||||
|
Resolution of deformation |
0.04um |
||||
|
Accuracy of displacement |
Within±0.5%of indicating load |
||||
|
Resolution of displacement |
0.01mm |
||||
|
Test speed(mm/min) |
0.05-200 stepless arbitrary setting |
||||
|
Tensile space(mm) |
700(can be customized) |
||||
|
Compression space(mm) |
700(can be customized) |
||||
|
Test width(mm) |
760(can be customized) |
||||
|
Workbench thickness(mm) |
200 |
||||
|
Base height(mm) |
490 |
||||
|
Working environment |
Room temperature 10℃~30℃,relative humidity≤80% |
||||
|
Power supply |
AC220V±10%,50Hz/60Hz(can be customized) |
||||
|
Grips |
Wedge type, plate type and other grips as consumer's demand |
||||
|
Dimension(mm) |
1440*970*2740 |
||||
