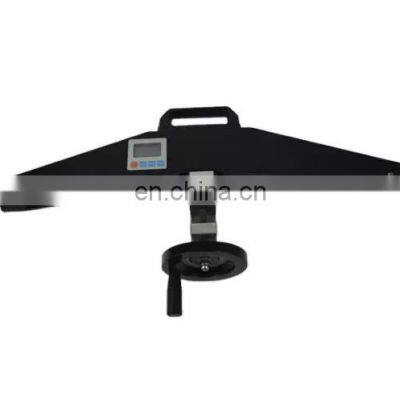

Industry Use Steel Wire Flexible Rope Tension Tester
1.Application:
KAS Series Digital Wire Rope Tension Meter can be applied to various occasions, such as power industry,
telecommunications industry, transportation industry, glass curtain wall decoration, ropeway industry,
construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching
institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes.
2.Functional Features:
2.1. It has the rope structure with tension force, and can be measured directly without the need of being
taken apart.
2.2. It has the light weight, simple structure, convenient operation, and applies to any situations.
2.3. It has the stable performance, high measurement accuracy, with automatic system compensation
function. When the specification of the tested rope is the same as the rope tension testing instrument
rope number, the measurement accuracy can reach 2% error or less within the rated measurement
range.
2.4. It has broader range of measurement, with 15 kinds of rope-diameter measuring functions.
2.5. Applied range: applied to flexible, stretched ropes, such as various steel wire ropes, high-strength
ropes, etc.
2.6. Accuracy grade: 2~6% of maximum function (depending on the rope form and features).
2.7. Rope Diameter: Φ6~Φ40mm.
|
Model |
KAS-20 |
KAS-50 |
KAS-100 |
KAS-200 |
|
Maximum Load Value |
20 kN |
50 kN |
100 kN |
200 kN |
|
Divided Load Value |
0.01 kN |
0.01 kN |
0.1 kN |
0.1 kN |
|
Measuring Range |
Φ6~Φ20mm |
Φ12~Φ30mm |
Φ16~Φ36mm |
Φ20~Φ40mm |
|
Output Connector |
RS232 9-hole Socket |
|||
|
Charging Time |
7.2V 1.2V x 6 |
|||
|
Power |
Rechargeable Battery Charger (Charging Voltage 100V~240V) |
|||
|
Operating Temperature |
5℃ ~ 35℃ |
|||
|
Transport Temperature |
-10℃ ~ 60℃ |
|||
|
Relative Humidity |
15% ~ 80% RH |
|||
|
Operation |
No vibration focus and corrosive media around |
|||
|
Gross Weight |
About 16 KG |
|||
|
Dimensions |
650mm x 375mm x 100mm |
|||
