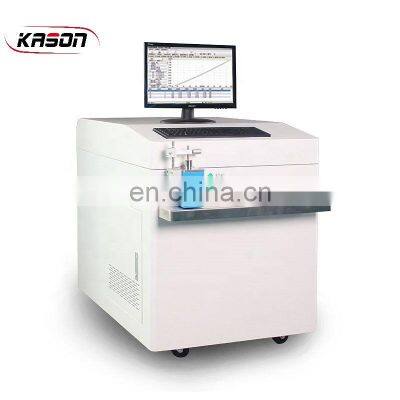

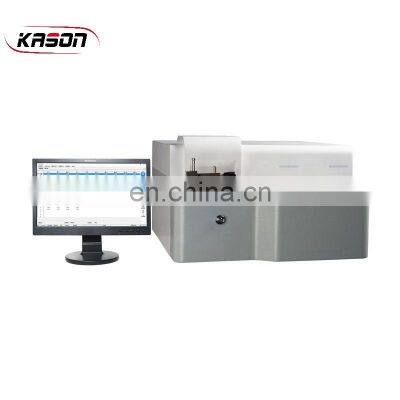

KASON T7 CCD Technology Spectrometer for Metal Analysis

Introduction:

spectrometer adopts international standard design and manufacturing technology. It uses the most advanced CMOS signal acquisition components from Japan Hamamatsu Corp. The design of vacuum chamber and full digital excitation light source which is synchronized with the international spectrometer technology. The spectrometer is not only contain the full spectrum characteristics of CCD spectrometer but also the extremely low detection limit for non-metallic elements such as C, S, P, B, As etc. The design of whole machine is reasonable. The operation is simple and easy to learn. The test result is stable and accuracy.

Applications:

It is widely used in the metallurgy, casting, machinery, scientific research, commodity inspection, automotive, petrochemical, shipbuilding, power, aviation, nuclear power, metal and non-ferrous smelting, processing and recycling industries.

Optical System of Spectrometer

l Paschen-Runge Mount Structure, Rowland circle optical system.

l Diameter of Rowland circle:350mm

l Wavelength Range:160 – 800 nm

l Detector:Multi high resolution CCD detector

l Optical chamber temperature:Temperature autocontrol:34℃±0.5℃

l Pixel Resolution:10pm

l Optical grating groove:3600 l/mm

l Level One spectral dispersive power:1.2 nm/mm

l External Incident window, convenient cleaning and replacement

l Excellent drift correction, thanks to automatic peak-finding(accuracy of 0.1 pixels)

l Excellent UV sensitivity, thanks to the new improved vacuum technology

Digital plasma Generator

l All-digital plasma spark source technology

l High efficiency thanks to compact design and semiconductor control technology

l High-energy pre-combustion technology (HEPS)

l Excitation parameters can be user-defined by the user according to the actual needs

l Frequency 100 - 1000Hz

l Current 1-80A

l Parameters adjustment may need to adjust the components

Please contact KASON directly for best quotation
