JB-4C Computer Control High Precision Surface Smoothness Meter Surface Roughness Tester PC
1.Application:

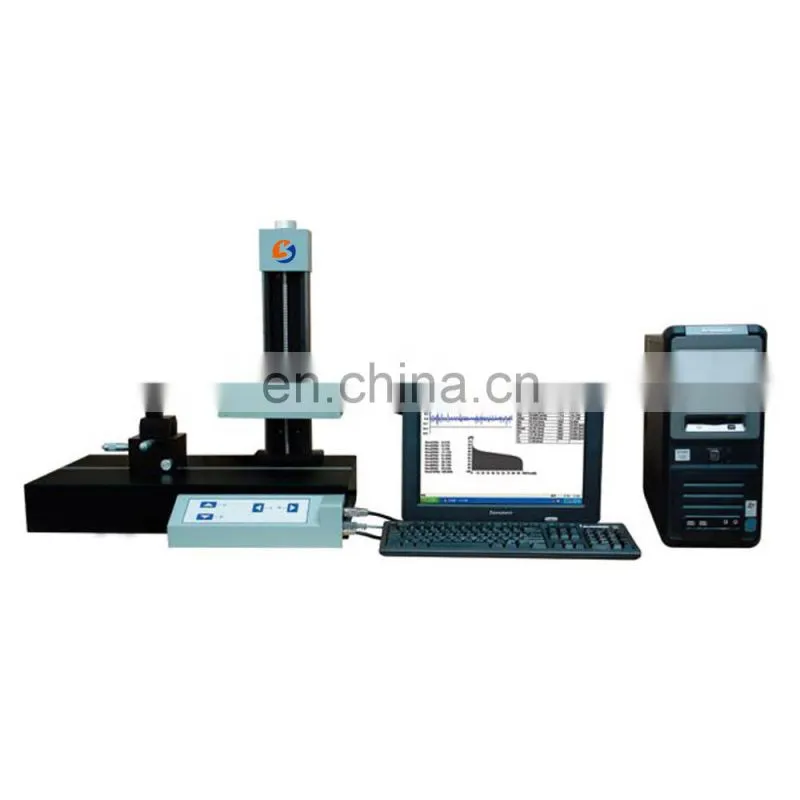

JB-4C Computer Control High Precision Surface Smoothness Meter is a probe style profile measuring
instrument. It is applicable to measure surface of various types of parts,such as planar, incline, cylinder,
circular and spherical parts, grooves and bores.
2.Standard:
It is compliance with China Standard GB/T3505-2000, GB/T6062-2001, GB/T10610-1998 and International
Standard ISO5436, ISO11562.
3.Technical Parameters:
|
Model |
JB-4C |
|
Evaluation Parameters |
Ra,,Rz,Rt,RS,RSm,Rp,Rv,Rmax,Rq,D,Pt. Lr,Ln,RSk,RΔq,Δa,λq,λa,R3t,Rt1,Rt2,Rt3,RT4,Rt5 etc.,Rmr(Tp)Curve. |
|
Roughness Range |
Ra 0.01~50 µm |
|
Sampling Length |
L: 0.08 ,0.25, 0.8, 2.5 mm |
|
Evaluation Length |
Ln: 1L, 2L, 3L, 4L, 5L, Can Selectable |
|
Sampling Points |
4000 Points |
|
Max. Specimen Height |
300 mm |
|
Application |
Planar,Incline,Cylinder,Circular and Spherical Parts,Grooves and Bores. |
|
Probe |
Standard Type, Height < 8 mm. Special Probe For Small Bore, Radium: 2 um, Pressure: 4 mN |
|
For Measurement Of Bearing |
Max. Outer Dia. Of Inner Ring 280mm Min. Inner Dia. Of Outer Ring 12mm; Thickness: ≤160 mm |
4.Software Interface:
