KASON Portable Metal Leeb Hardness Tester price
Measuring materials:
hardness measurement of steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel and other materials.

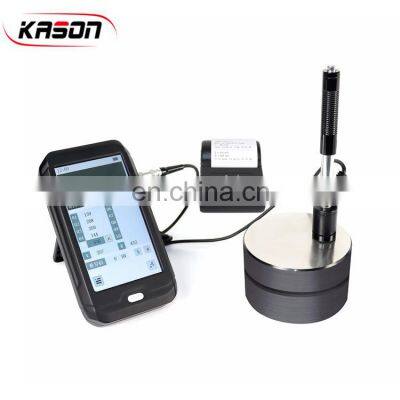

Equipped with high-precision D-type sensor, with support frame, high-brightness large screen, no viewing angle.
Usage:
- Machining industry, especially suitable for on-site hardness testing of large parts and non-detachable parts
- The hardness of the installed mechanical or permanent assembly parts.
- Mold cavity hardness.
- Hardness of heavy workpiece
- Failure analysis of pressure vessel, steam turbine generator set and its equipment
- The hardness of the workpiece with very narrow experiment space
- Hardness of bearings and other parts
- Material classification of metal material warehouse
- Rapid detection of multiple measurement locations in a large range of large workpieces
Measuring range |
(170-960)HLD,(19-651)HB,(13.5-101.7)HRB,(17.9-69.5)HRC,(59.1-88)HRA,(80-1042)HV,(30.6~102.6)HS |
Measuring direction |
Any (360°) |
Application material |
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel |
Indication error and repeatability |
D-type impact device, ±6HLD (indicating value error), ±6HLD (indicating value repeatability) |
Hardness system |
7 kinds of Shore (HS), Richter (HL), Brinell (HB), Rockwell (HRC/HRB/HRA), Vickers (HV), etc. |
Upper and lower limit setting range |
(170-960)HLD |
Indicating value calibration |
With software calibration function of indicating value |
Data storage |
373~2688 groups (number of impacts 32~1) |
Continuous working time |
About 360 hours (when the backlight is not turned on) |
|
|
|
|
|
Please contact KASON directly for best quotation
