KASON Vickers Micro Hardness Testing

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

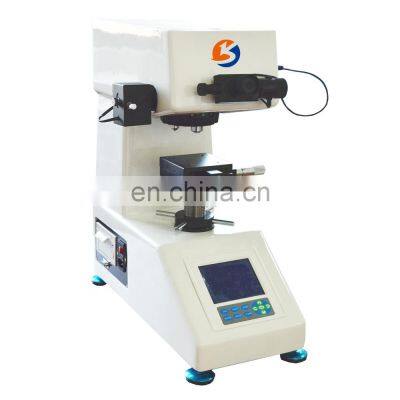

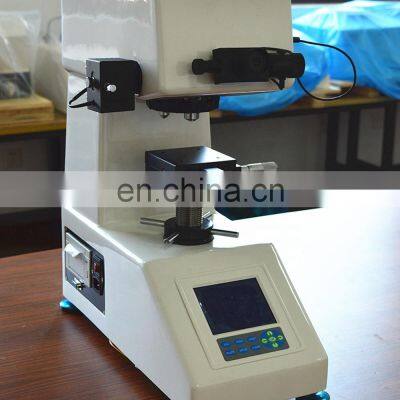

KASON Vickers Micro Hardness Testing

Product Description

Application:

Can be used to determine un-quenched steel.,Cast iron.,Non-ferrous metal and the soft texture of bearing
metal materials ' brinell hardness value.

Specification

Model	HV-1000Z	HVS-1000Z	HVS-1000ZT
Display model	Small LCD digital display	Big LCD digital display	touch screen Digita Display
Hardness values	Input D1,D2	Direct display	Direct Display
Exchange Scales	HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Test force	10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
Turret Type	Automatic
Loading and unloading mode	Automatic
Dwell Time	Adjustable 0 to 60 seconds
Micrometer eyepiece multiple	10X(optional 15X)
Objective magnification	10X 40X
Total magnification	100X（objective）400X(measurement)
measurement range	150µm
Hardness conversation	Brinell, rockwell, surface rockwell
Max. Height of Specimen	80mm
XY test table size	100X100mm Max. movement：25*25mm
Min. Measuring Unit	0.01μm
RS232,Built-in print,data statistics	No	Yes	Yes

Please contact KASON directly for best quotation
