Product Description
GW-40B Steel Bar Bending Testing Machine/
Bending Rebar Used/Bend Testing Machine

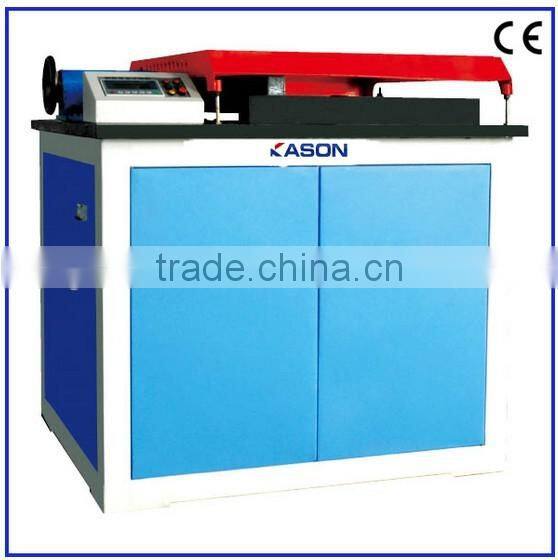

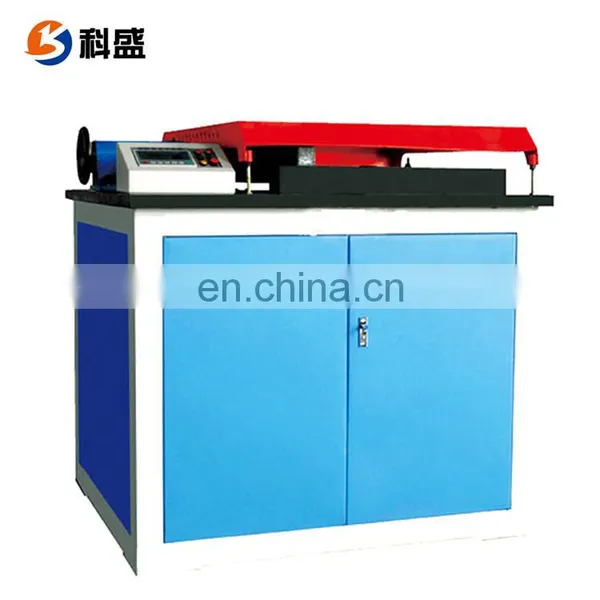

GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine
GW-40B Steel Bar Bending Testing Machine/Bending Rebar Used/Bend Testing Machine
Application
GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine can be used to do cold bend and rebend test on plane. The main technical parameters
accord with GB1499.2-2007 < The second part of Steel tube for the reinforcement of
concrete: hot rolled ribbed steel bars > , YB/T5126-2003 < Program of steel bars plane
rebend tests> .
GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine is suitable for bend test of the metallic material-rods and bars, the plate, spiral steel,and
widely applies in the building materials, the metallurgy, the Scientific research Unit, the
universities, colleges and institutes, the quality detection center and the commodity ins-
pection department. It is indispensable ideal testing machines to test the recurvature cha-
racter and cold bending property of screw thread steel bar .
2. Standard:
GB1499.2-2007 <The second part of Steel tube for the reinforcement of concrete:
hot rolled ribbed steel bars>,
YB/T5126-2003 <Program of steel bars plane rebend tests>
3. Main specifications:
Product name | GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine |
Mode | GW-40B |
Max of bending diam of Steel Bar | 40mm |
Forward bending angle | 0° to 180° |
Reverse bending angle | 0° to 180° |
Rotating speed of working table | ≤2.0r/min |
Distance between the center of two rolls | 165mm |
Diameter of the working table | Φ580mm |
Motor power | 1.5kw |
Standard bending accessory | HRB-335/φ6-φ40/or other configuration option |
Weight | 1500kg |
GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine
GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine

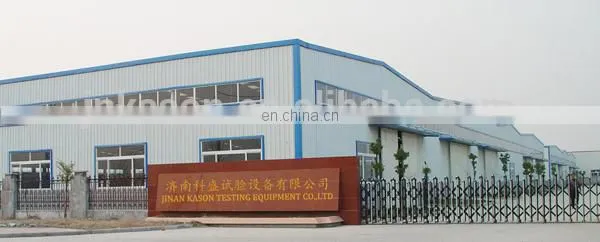

Jinan Kason Testing Equipment Co., Ltd. wasestablished in 2009,and is mainly specia-
lized in developing and manufacturing testing equipment used for metal, non - metal and
composite material mechanic performance testing.Our products are widely used in steel
metallurgy,machinery manufacturing,space flight and aviation,military,auto manufacturing,
rubber industry, plastic industry, etc.Our products sell well around the world.
"To make the high quality products" is our manufacturing philosophy!
With scrupulous manufacturing process, large - scale production, strict quality manage-
ment, normative user training and improved service system ,our company is specialized
in providing customers with humanized products which customers can rest assured to
buy and use with ease.
GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine
Our main products are hydraulic universal test machines,electronic universal test ma-
chines,compression test machines,ring stiffness test machines,spring test machines,ho-
rizontal tension test machines,impact test machines metallographic sample preparation
equipment, hardness testers and testing machine accessories.
GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine
GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Cooperative Partner
GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are
not in stock, it is according to quantity.
Q: Do you provide samples ?
A: No, because of value.
Q: What is your terms of payment ?
A: Payment 100% before shipment.
If you have another question, pls feel free to contact us as below:
GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine
Amy Fu
JINAN KASON TESTING EQUIPMENT CO., LTD.
ADD: Duandian Industrial Park, Jingshi Road, Jinan City, Shandong Province, China.
Tel:+86-531-58595086
Mob: +86 15169112790 (whatsapp)
Wechat:15169112790
GW-40B Steel bar bending testing machine/bending rebar used/bend testing machine
