1.Application:

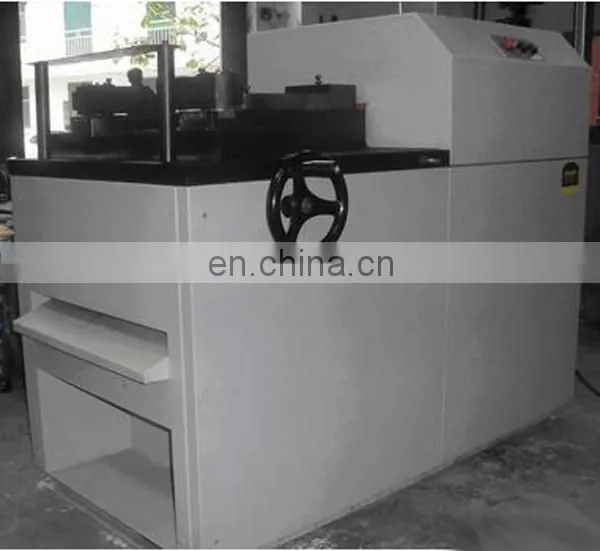

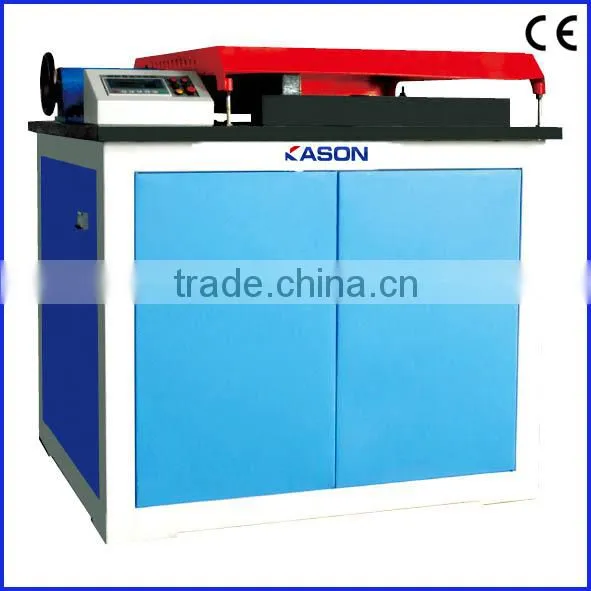

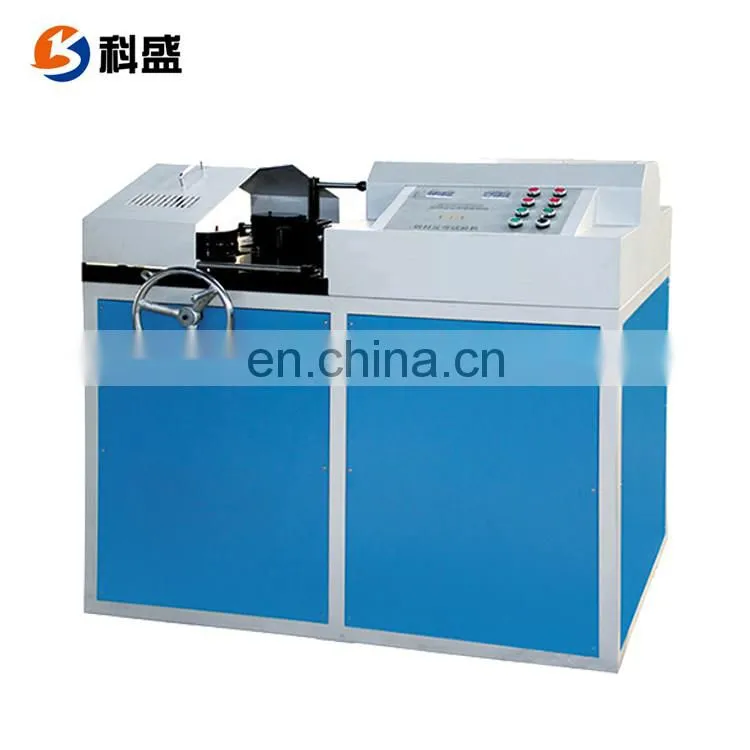

KS-200 Computer Control Wire Rotating Bending Fatigue Testing Machine is mainly used
for specimens (usually rods) do cantilever-type rotation, and applied the prescribed bending
moment, to test the specimen rotation under constant bending moment (or force), under the
alternating stress, to analyse specimen anti-cyclical bending stress mechanical properties.
Widely used in automobiles, locomotives, quality supervision, research institutes and so on, it is
the ideal equipment to detect the material or workpiece to withstand the bending fatigue stress.
2.Applicable Standards:
GB / T4337-2008 "Metallic Materials - Fatigue Test - Rotary Bending Method"
BS EN 13261: 2009 "Railway Applications-Wheelsets and Bogies-Axles-Product Requirements"
3.Main Specifications:
Model |
KS-200 |
Max.Bending Moment |
200 Kg .cm (20 N.m) |
Bending Moment Adjustable |
25-200 Kg.cm (2.5-20 N.m) |
Gripping Diameter |
12 mm |
Testing Diameter |
8 mm |
Rotating Speed |
4200 rpm |
Accuracy Of Applied Bending Moment |
±1% |
Number Of Fatigue |
2*106 |
Loading Type |
Pure Bending Moment Of Cantilever |
Loading Method |
Weight |
4.The Packing Way Of Our Export Machines:
6.Our Cooperative Partners:
You can contact me as the below information.
