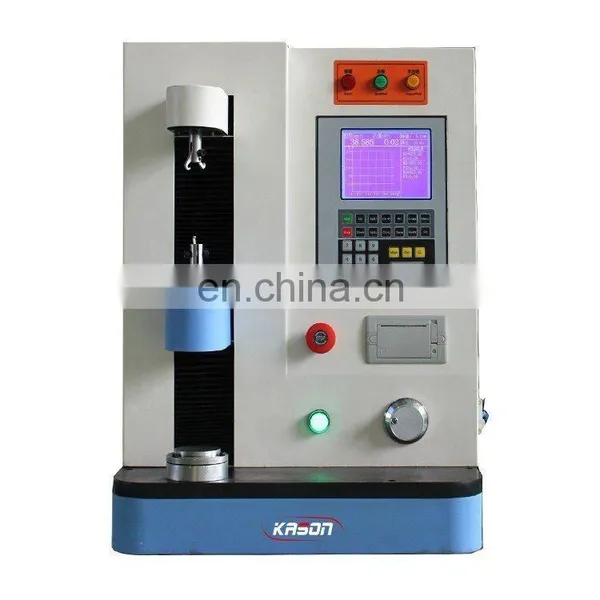

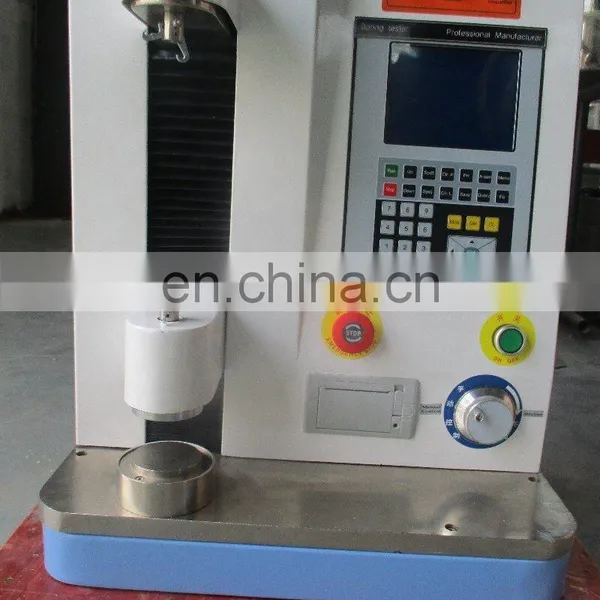

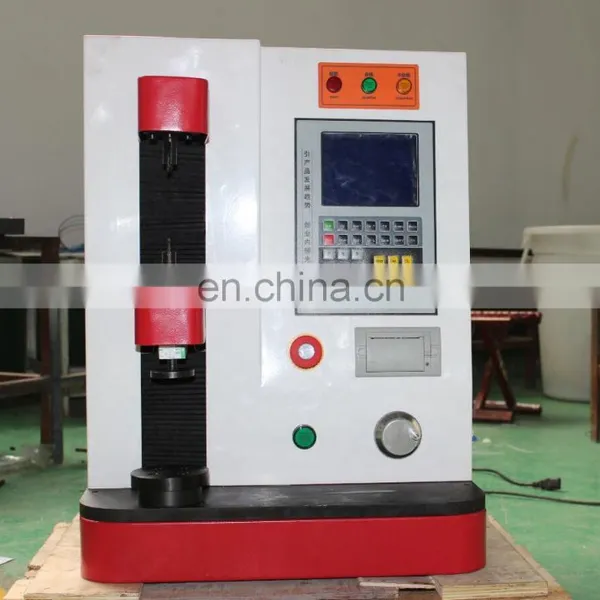

200N Touch Screen Automatic Spring Tensile Testing Test Machine
Product Description
Application:
The machine was designed adopted the advanced experience of foreign manufacturers. The structure and rigidity of the machine are designed and manufactured for the precision inspection for small springs in strict accordance with the industry standard of the Ministry of Machinery.
The machine was designed adopted the advanced experience of foreign manufacturers. The structure and rigidity of the machine are designed and manufactured for the precision inspection for small springs in strict accordance with the industry standard of the Ministry of Machinery.
Specification
Model |
TLT-10,20,50,100,200 |
Loading way |
Motor loading and electronic handwheel
(fine tuning)
|
Capacity（KN） |
10,20,50,100,200 |
Max. Testing display value（N） |
0.1 |
Testing range |
1%—100%FS |
Load display resolution |
1/1000000 |
Relative error of indication repeatability(%) |
±0.5 |
Max. Read value of displacement（mm） |
0.001 |
Electronic handwheel (fine tuning) |
0.01mm |
Testing speed（mm/min） |
0.01-500 |
Size(mm)、Weight |
470*400*620 75kg |
Power |
AC 220V±10% 50Hz |
Testing machine grade |
Class 1/ Class 0.5 |
