DPS-25B Dynamic And Static Leaf Spring Fatigue Test Bench Testing Machine for Spring
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
KASON Testing Machine Torsion Spring Torque Tester Made in China
-
KASON Electronic Torsion Testing Machine Vertical Spring Torque Tester With High Quality
-
KASON Electronic Manual Spring Load Test Compressed and Tension Testing Machine
-
KASON Automotive Automobile Spiral Spring Fatigue Test Machine Leaf Spring Fatigue Tester
-
KASON Computer Digital Display Spring Fatigue Test Testing Machine
-
KASON Spring Tension Tester Testing Machine
Product Description

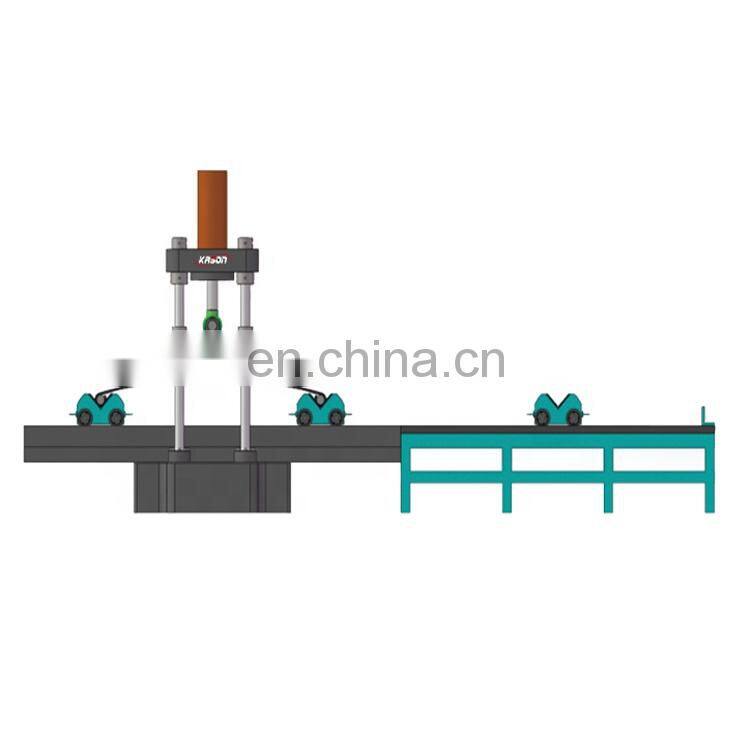

DPS-25B Dynamic And Static Leaf Spring Fatigue Test Bench Testing Machine for Spring
Product Description
Application:
The DPS series electro-hydraulic servo dynamic and static fatigue test bench is one of the series of dynamic fatigue loading test system products developed by our company.
The DPS series electro-hydraulic servo dynamic and static fatigue test bench is one of the series of dynamic fatigue loading test system products developed by our company.
This series of products have the characteristics of wide output force range, high control precision, convenient use and high reliability.
This series of test systems are designed by absorbing the international advanced electro-hydraulic servo dynamic testing machine technology in the process of research and development, combining with the actual use of domestic users.
Servo actuators, constant pressure servo oil source, loading frame and other key components are designed and manufactured by our company.
The key outsourcing parts such as servo valves, sensors, seals are all selected international mainstream models, which greatly improves the stability and reliability of the system The overall performance of the testing machine is equivalent to the international advanced product technology level.
Specification
Model | DPS-25B |
Maximum dynamic test force: | ±25kN |
Effective measurement range: | 2%—100%FS in the whole process without bins |
Static test force indication accuracy: | less than ±0.5% |
Dynamic test force indication accuracy: | less than ±1.0% |
Dynamic load fluctuation of test force | less than ±2% |
Distance between columns | 1000mm |
Max. Read value of displacement（mm） | 0.001 |
The effective stroke of the actuator | ±80mm~ ±150mm |
Maximum working pressure | 21MPa |
Test frequency: | 0.1～5Hz |
Amplitude frequency coefficient | 60 |
Leaf spring width | 70～120mm |
