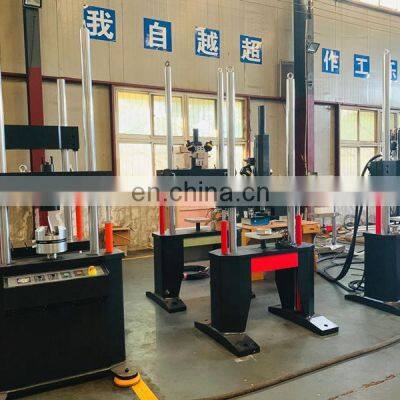

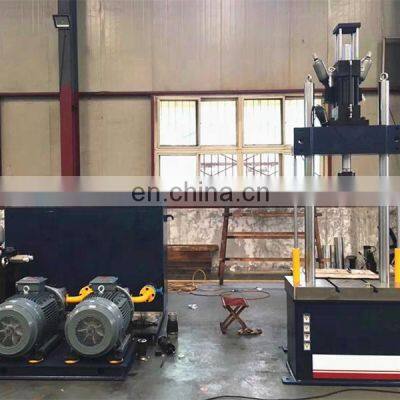

Hydraulic Dynamic Universal Testing Machine
1. Application
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
2. Standards
2.1 GB / T2611-2007
2.2 GB / T16826-2008
2.3 GB 3075
2.4 JB / T9379-2002
2.5 GB / T228-2010
3. Working conditions:
3.1 Altitude: ≤1000 m
3.2 Ambient temperature: 20 ℃ ± 5 ℃
3.3 Relative humidity: ≤80%
3.4 Power supply: three-phase five-wire system, 380v ± 10% 50Hz, well grounded
3.5 The computer controlled servo fatigue testing machine should be installed on a solid basis.
3.6 servo hydraulic testing system should be equipped with no less than 200 liters laboratory
3.7 46 # hydraulic oil and cooling water circulation without precipitation.
Model | HWS-50 | HWS-100 | HWS-200 | HWS-250 | |
Load Capacity(kN) | Static | 50 | 100 | 200 | 250 |
Dynamic | ±40 | ±80 | ±160 | ±160 | |
Range Of Frequency | 0.1~15Hz Optional; 20Hz / 30Hz /50Hz | ||||
Specification of constant voltage servo pump station | flow≥37L/min, 21Mpa, 380V three phase | ||||
Clamping method | Hydraulic wedge clamping | ||||
Main waveform | Sine wave, pulse wave, square wave, sawtooth wave, random wave (mainly supported by controller) | ||||
