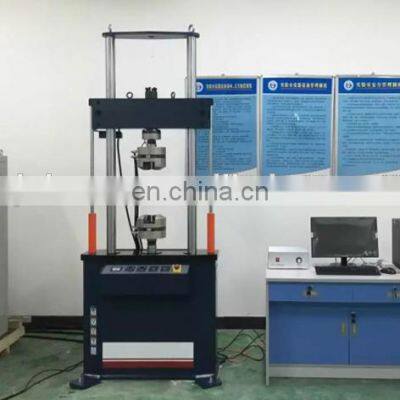

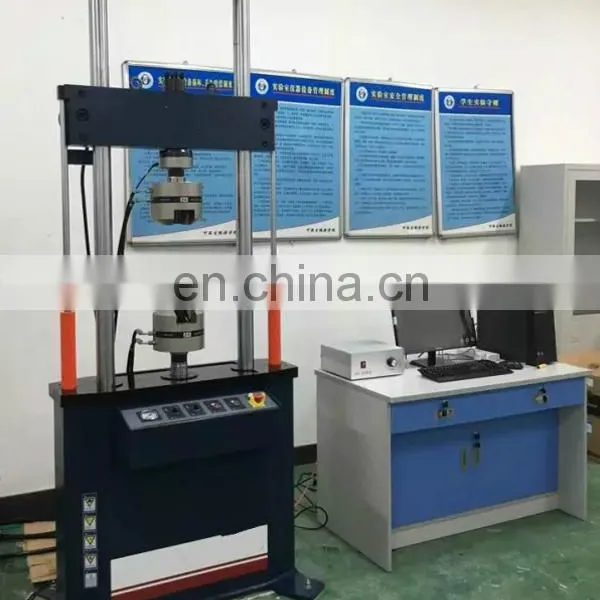

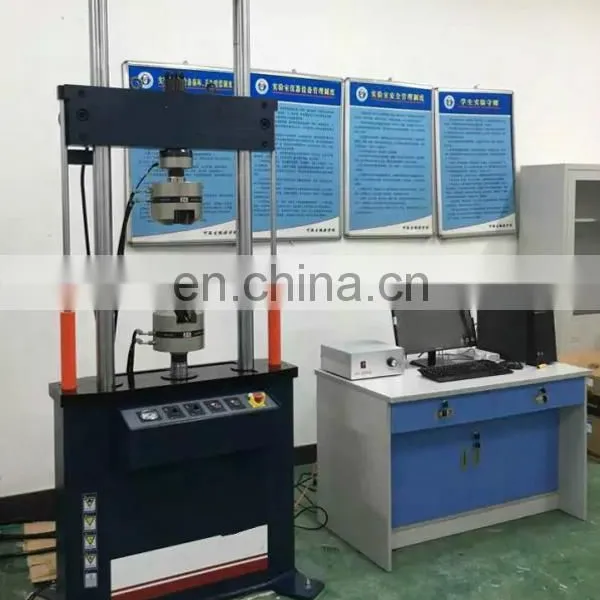

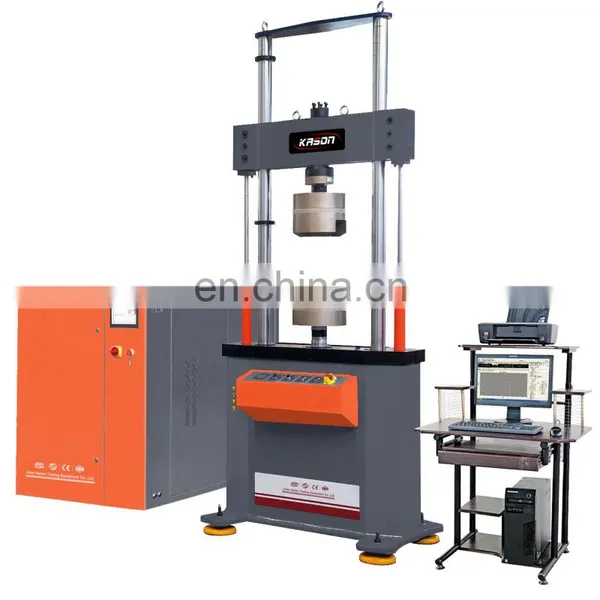

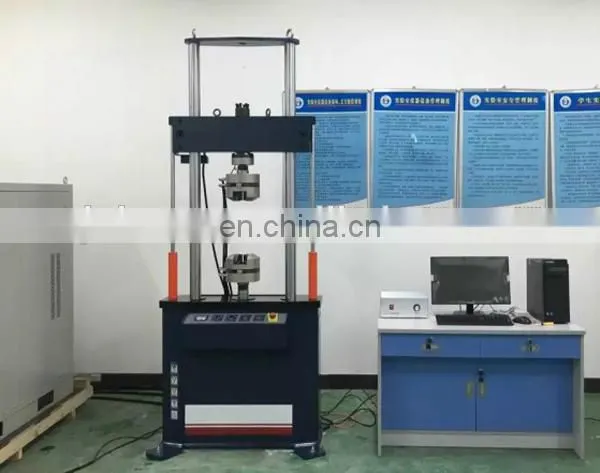

Electro-hydraulic Servo Dynamic and Static Mechanical Fatigue Testing Machine Fatigue Tester
Standards:
- GB / T2611-2007 "Tester General technical requirements"
- GB / T16826-2008 "Hydraulic servo universal testing machine"
- GB 3075 "Axial fatigue testing metal"
- JB / T9379-2002 "Tension and compression fatigue test machine technical conditions"
- GB / T228-2010 "Metallic materials at room temperature tensile test method "
Main Technical Specifications:
Model | HWS-15 | |
Load Capacity(kN) | Static | 15 |
Dynamic | ±10 | |
Test force measurement range (kN) |
| 2%~100%FS in the whole process |
Measurement Accuracy | Load | ±1.0% of Reading |
Displacement | ±2.0% FS of Each File | |
Deformation | ±0.5 of Reading | |
Range Of Frequency | 0.01~50Hz | |
Stroke of Piston(mm) | ±50 | |
Distance Between Columns(mm) | 500 | |
Max. tensile test space (mm) (including piston stroke) | 700 | |
Specification of constant voltage servo pump station | flow≥37L/min, 21Mpa, 380V three phase | |
Clamping method | Hydraulic wedge clamping | |
Main waveform | Sine wave, pulse wave, square wave, sawtooth wave, random wave (mainly supported by controller) | |
Rack Stiffness: | 3.0 x 108 N/m | |
| | | |
| Digital display electronic universal testing machine | Computer control electronic universal testing machine | Digital display electronic universal testing machine |
