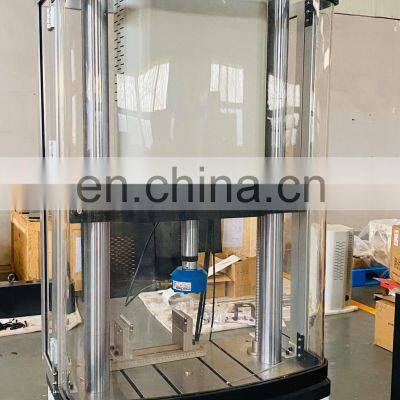

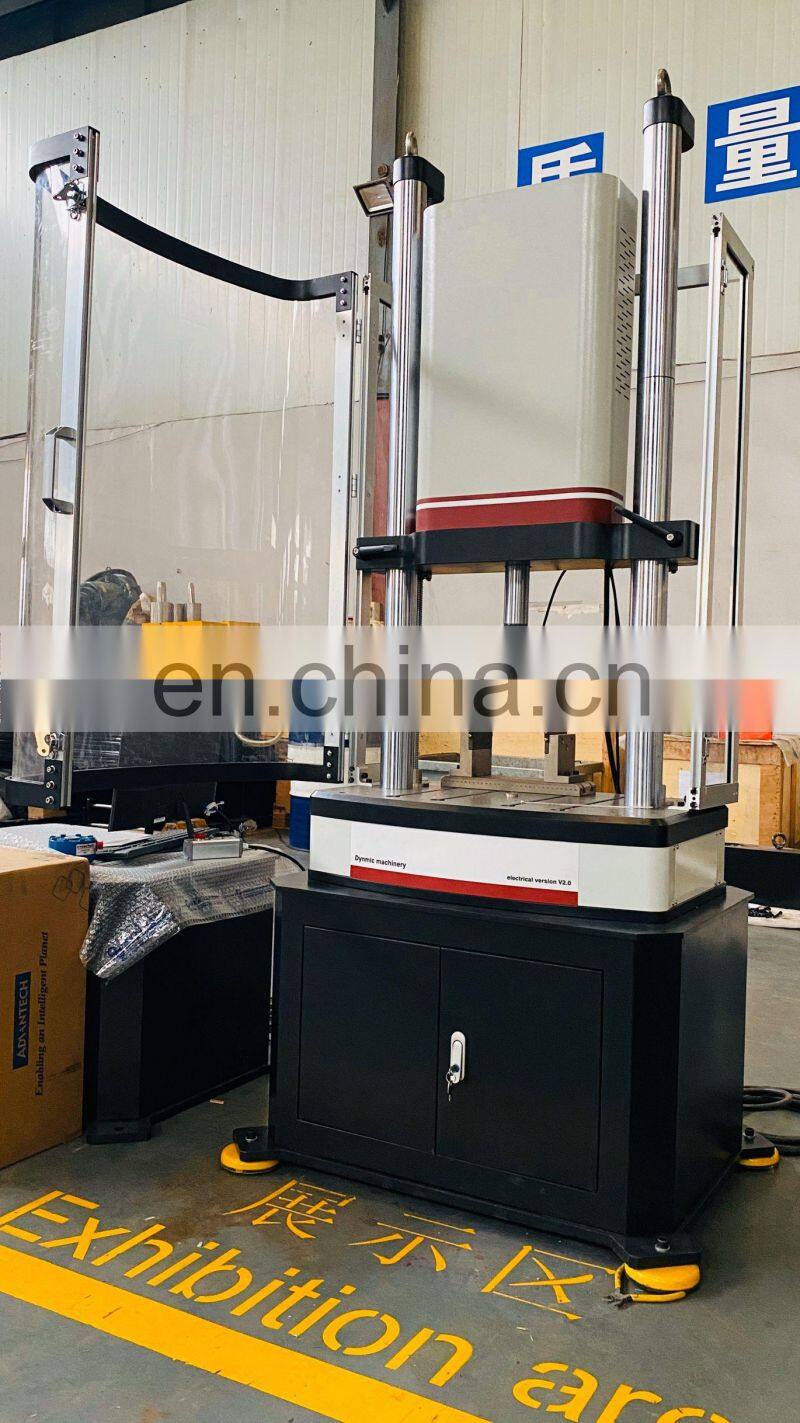

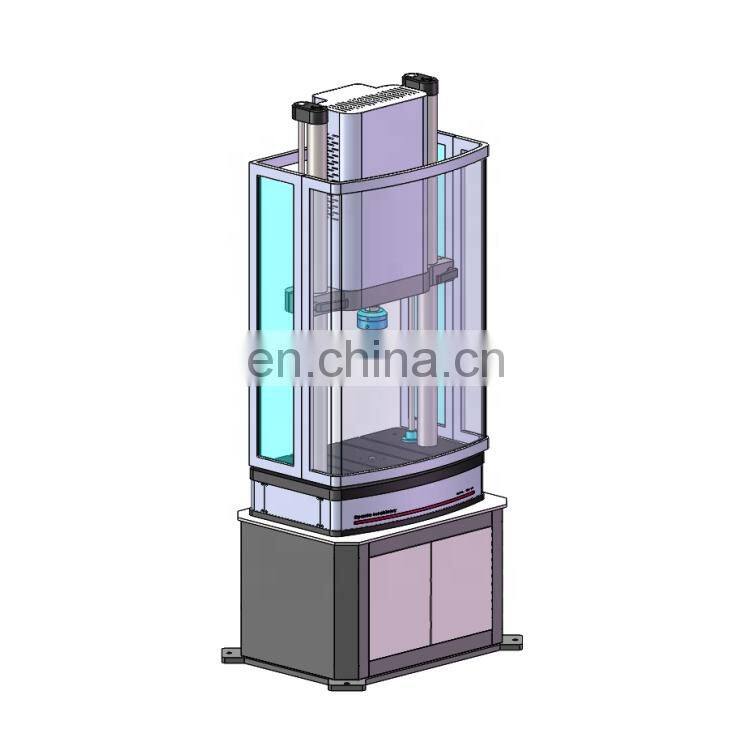

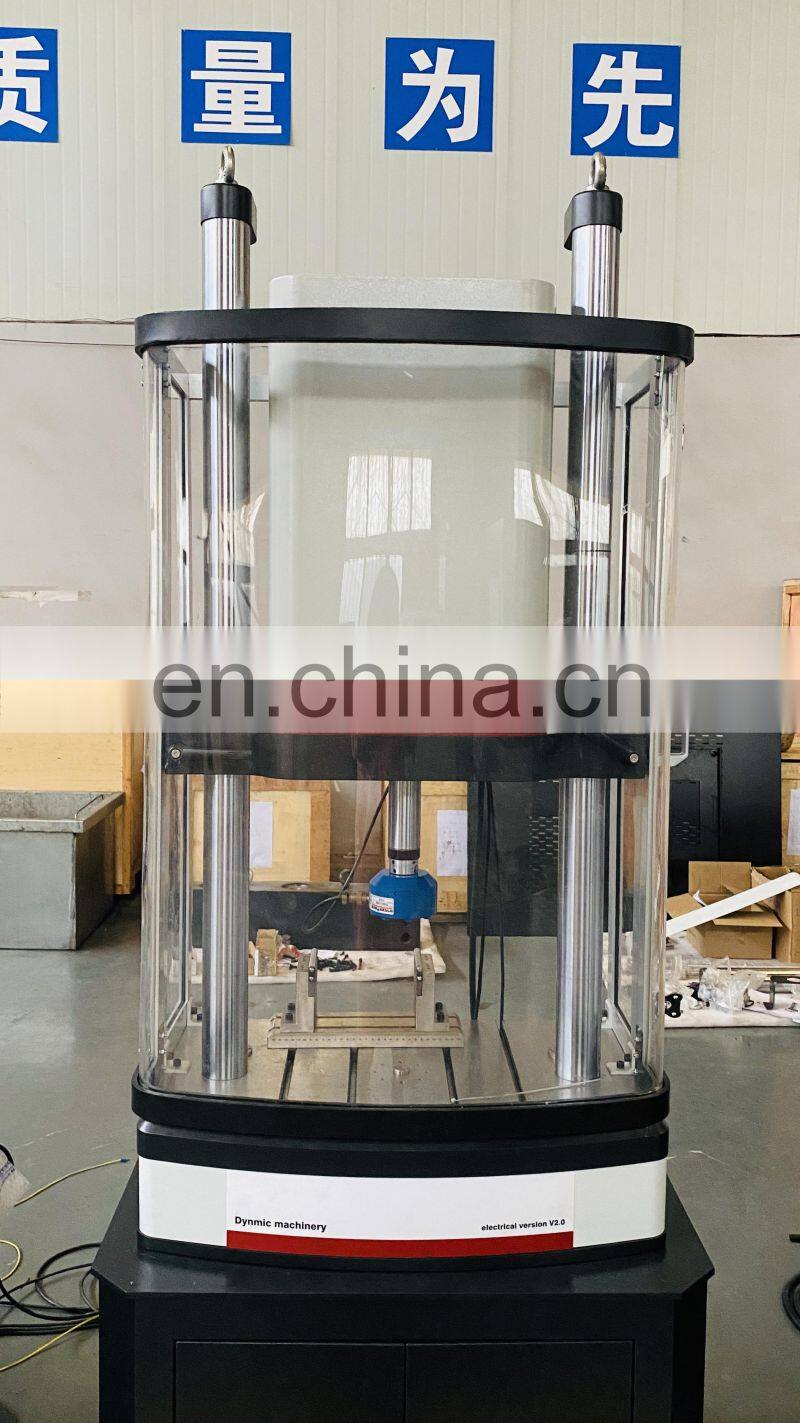

KASON DP Electronic Microcomputer Servo Dynamic and Static Mechanical Fatigue Testing Machine for Materials and Parts
1. Application:
Mainly used to do the dynamic and static mechanical fatigue test for materials and parts . The machine could also complete the fatigue test of other structural parts with different fixture. The machine also can be used for materials or structural parts, auto parts and other static mechanical performance test. It is a popular machine for the university, research institutes, enterprises and other experimental equipment to test.
2.Standards:
GB / T 2611-2007 "General Technical Requirements for Testing Machines"
GB / T16825.1-2008 "Inspection of Static Uniaxial Testing Machine Part 1: Inspection and Calibration of Tension and / or Pressure Testing Machine Force Measuring System"
JB9397-2002 "Technical Conditions for Tension and Compression Fatigue Testing Machine"
GB / T 3075-2008 "Metal Axial Fatigue Test Method"
GB / T15248-2008 "Metal material axial constant amplitude low cycle fatigue test method"
HG / T 2067-1991 "Technical Conditions of Rubber Fatigue Testing Machine"
3.Main Technical Specifications:
|
Model |
Kason-DP2 |
Kason-DP5 |
Kason-DP10 |
Kason-DP20 |
|
Max testing force |
±2000N |
±5000N |
±10000N |
±20000N |
|
Load frame |
Two-column platform type, cross beam electric adjustment |
|||
|
Effective column width |
555 |
555 |
600 |
600 |
|
Test space
|
550 |
550 |
750 |
750 |
|
Test force measuring range |
Dynamic2%~100%FS |
|||
|
Force accuracy and fluctuation |
1% better than indicated value; amplitude fluctuation is not greater than ± 1% F.S |
|||
|
Load display resolution
|
1/50000 |
|||
|
Test force indication accuracy |
Dynamic ± 1%; static 0.5% |
|||
|
Displacement measurement range |
150mm(±75mm) |
|||
|
Displacement resolution |
0.001mmm |
|||
|
Displacement indication accuracy |
Indication accuracy from 1%, within ± 0.5% FS |
|||
|
Deformation |
Indication accuracy: 2%~ ± 0.5% |
|||
|
Frequency rang
|
standard machine 0.1-10HZ,can Optional20HZ,30HZ,50HZ
|
|||
|
Accessories
|
Standard :Compression, bend, shear etc.(option) |
|||
|
Test waveform: |
sine wave, square wave, triangle wave, ramp wave, etc.
|
|||
|
|
|
| |
|
|
| Digital display electronic universal testing machine | Computer control electronic universal testing machine | Digital display electronic universal testing machine |
