Home > Products > Notch Broaching Machine > Best Price Chinese Impact Test Plastic Sample Preparation Machine

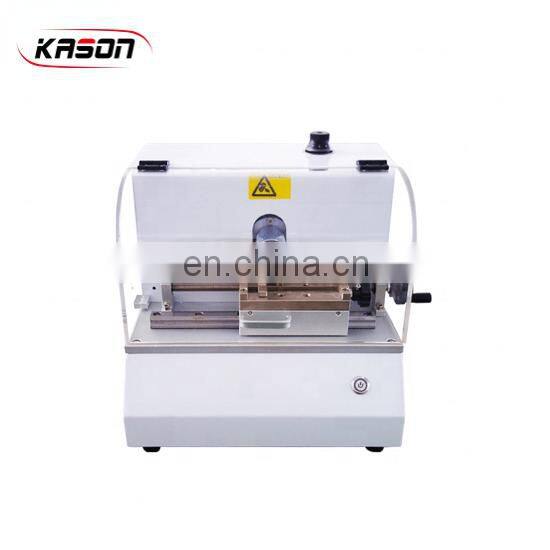

Best Price Chinese Impact Test Plastic Sample Preparation Machine
- T/T Credit Card
You May Like
-
Best Price Plastic Pendulum Specimen Notching Machine
-
Factory Price Non-metallic Material Notching Machine for Impact Test
-
Laboratory Use Plastic Material Sample Notch Machine
-
KS-5040 Laboratory Use Specimen Impact Notching Machine
-
YES-1000 Price Digital Display Concrete Cube Compression Testing Machine / Manual Concrete Compressive Strength Testing Machine
-
YES-1000 Price Digital Display Brick / Concrete Compression Testing Machine / Manual Cement Compressive Strength Testing Machine
Product Description
Best Price Chinese Impact Test Plastic Sample Preparation Machine
1. Product introduction
The plastic automatic notch sample preparation machine is a cantilever beam, simply supportedbeamtypeimpact tester for non-metallic material impact toughness test notched sample preparation equipment, impactnotch sample preparation machine equipment for scientific research institutions, colleges and universities, non-metallic materials The laboratories of materials production plants and other units make notched samplesforuse.
2. Reference standard for the gap of prototype machine props:
- ISO180-2000 "Plastic-Hard material cantilever beam impact strength determination"
- GB/T1843-2008 "Rigid Plastic Cantilever Beam Impact Test Method"
- JB/T8761-1998 "Plastic Cantilever Beam Impact Testing Machine"
- ASTM D256-2010 "Test Method for Measuring Plastic IZOD Pendulum Impact Strength"
- ISO179-2000 "Plastic-Hard Material-Determination of Impact Strength of Simply Supported Beams"
- GB/T1043-2008 "Impact test method of rigid plastic simply supported beam"
- JB/T8762-1998 "Plastic Simply Supported Beam Impact Testing Machine"
| Workbench Stroke | >160mm |
| Feeding speed | 1-30mm/min Adjustible |
| Sample type | Type 1, Type 2, Type 3 |
| Gap type | Type A, Type B (optional), Type C (Optional) |
4. Tool parameters of the automatic plastic notch prototype machine:
- A type tool: 45±1 degree r=0.25±0.025
- B type cutter: 45±1 r=1.0±0.025
- C1 type cutter: 45±1 r=0.1±0.02
- C2 type cutter: thickness 1=2±0.1 r<=0.1
- C3 type cutter: thickness 2=0.8±0.1 r=0.2±0.05
