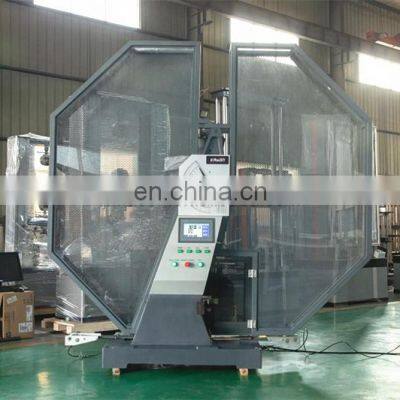

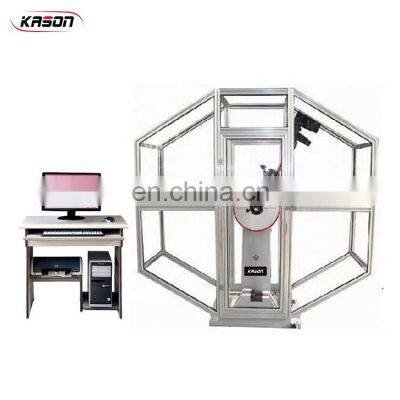

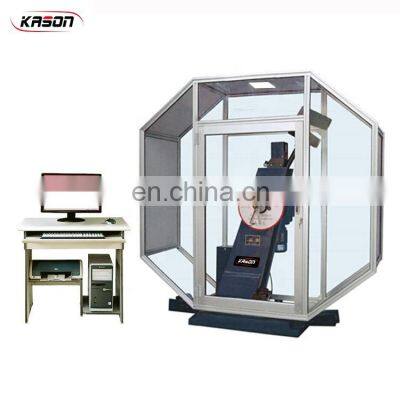

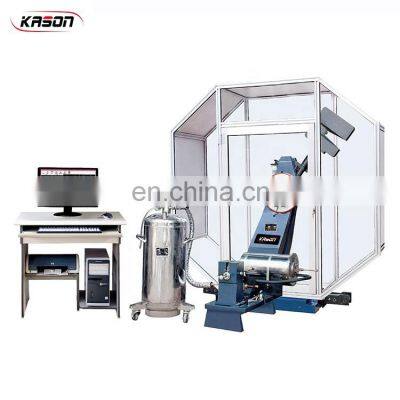

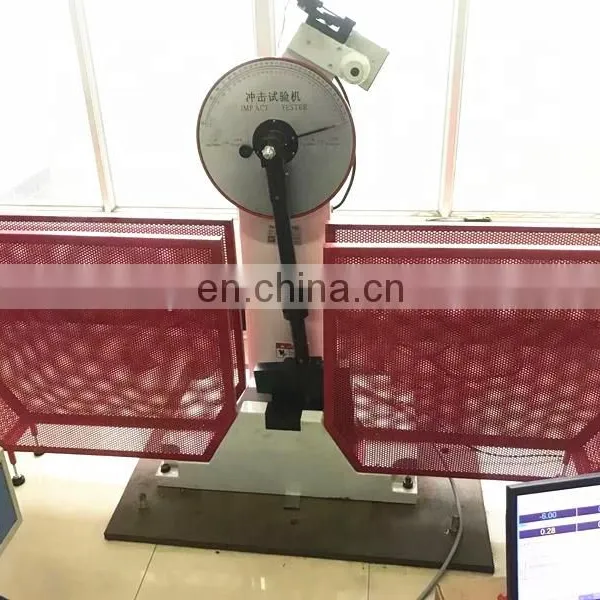

Help CenterKason Izod Resistance Test u v Notch Projector Pendulum for Impact Tester
Related Products
-
KASON V Charpy uv Notching Used Impact Testing MachinesNegotiableMOQ: 1 -
High Quality Kason DBC501 DuPont Impact Test InstrumentNegotiableMOQ: 1
-
Hot Sale Rubber Plastic Material Dupont Impact Testing MachineNegotiableMOQ: 1
-
Made in China Coating Material Dupont Ball Impact Testing MachineNegotiableMOQ: 1
-
KASON-DBC501 Laboratory Use Glass Fiber Dupont Impact Testing MachineNegotiableMOQ: 1
JB-500B Semiautomatic High Precision Charpy Pendulum Impact Tester Equipment Sale Price For Charpy
Technical Specifications:
Model |
JB-300B |
JB-500B |
JB-750B |
|
Impact Energy |
300 J , 150 J |
500 J , 250 J |
500 J / 750 J |
|
Control Methods |
Electric Control |
|||
|
The Distance Between The Pendulum Shaft And Impact Point |
750 mm |
800 mm |
||
Minimum Reading Value |
1 J |
2 J |
||
Impact Speed |
5.2 m/s |
5.4 m/s |
5.9 m/s |
|
Pre-rising Angle Of The Pendulum |
150° |
|||
Specimen Bearer Span |
40+0.2 mm |
|||
Round Angle Of The Jaw |
R 1.0~1.5 mm |
|||
Round Angle Of Impact Edge |
R 2.0~2.5 mm (Special Order: R8±0.05 mm) |
R2.0-2.5 mm, R8.0±0.05 mm |
||
Thickness Of Impact Blade |
16 mm |
|||
Angle Accuracy |
±0.1° |
|||
Pendulum Torque |
M=160.7695N.m 80.3848N.m |
|||
Impact Pendulum Configuration |
150 J, 1 PC; 300 J, 1 PC |
250 J, 1 PC; 500 J, 1 PC |
500 J, 1 PC; 750 J, 1 PC |
|
Standard Specimen Dimension |
10 mm * 10 (7.5 or 5) mm * 55 mm |
|||
Power Supply |
3phs, 380V, 50Hz |
|||
Dimensions |
2124mm * 600mm * 1340mm |
2450mm*1200mm *2455mm |
||
Net Weight |
450 KG |
580 KG |
2300 KG |
|
