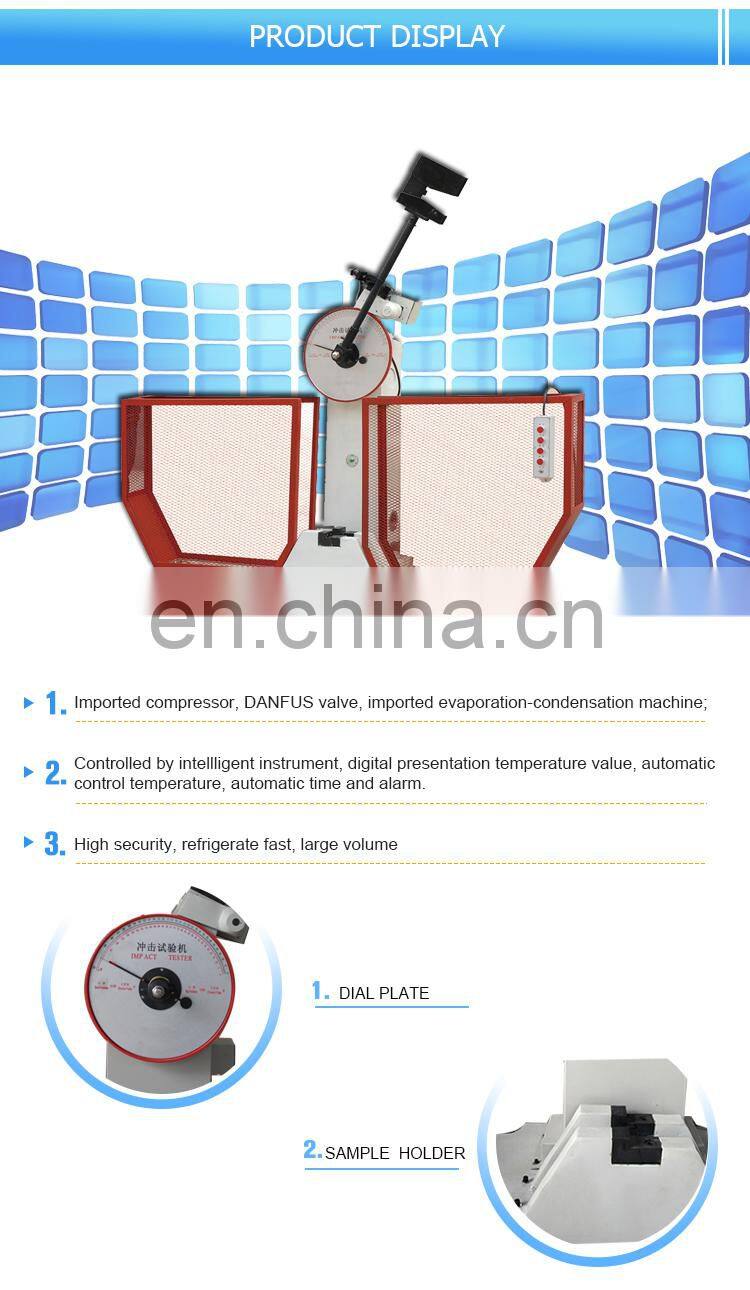

Kason Izod Automatic Testing Machinery Iso148 Charpy Impact Tester

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

JB-500B Semiautomatic High Precision Charpy Pendulum Impact Tester Equipment Sale Price For Charpy

Product Description

Technical Specifications:

Model	JB-300B	JB-500B		JB-750B
Impact Energy	300 J , 150 J	500 J , 250 J		500 J / 750 J
Control Methods	Electric Control
The Distance Between The Pendulum Shaft And Impact Point	750 mm	800 mm
Minimum Reading Value	1 J	2 J
Impact Speed	5.2 m/s	5.4 m/s		5.9 m/s
Pre-rising Angle Of The Pendulum	150°
Specimen Bearer Span	40+0.2 mm
Round Angle Of The Jaw	R 1.0~1.5 mm
Round Angle Of Impact Edge	R 2.0~2.5 mm (Special Order: R8±0.05 mm)			R2.0-2.5 mm, R8.0±0.05 mm
Thickness Of Impact Blade	16 mm
Angle Accuracy	±0.1°
Pendulum Torque	M=160.7695N.m 80.3848N.m
Impact Pendulum Configuration	150 J, 1 PC; 300 J, 1 PC	250 J, 1 PC; 500 J, 1 PC		500 J, 1 PC; 750 J, 1 PC
Standard Specimen Dimension	10 mm * 10 (7.5 or 5) mm * 55 mm
Power Supply	3phs, 380V, 50Hz
Dimensions	2124mm * 600mm * 1340mm		2450mm1200mm 2455mm
Net Weight	450 KG	580 KG		2300 KG
