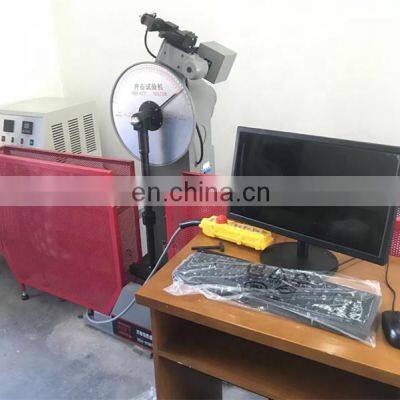

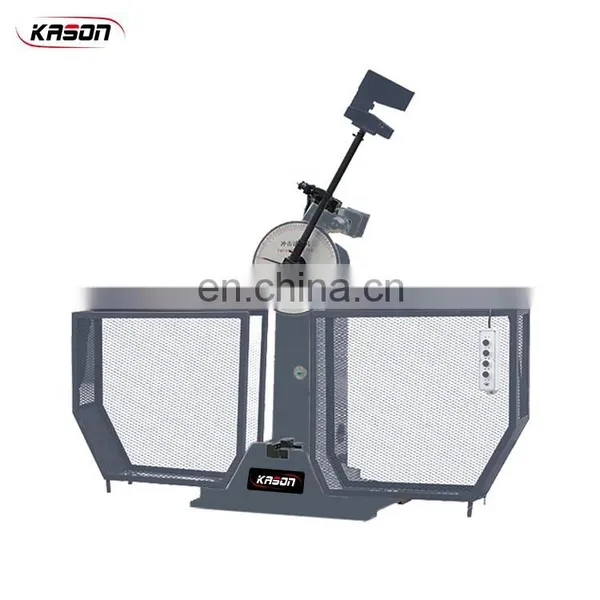

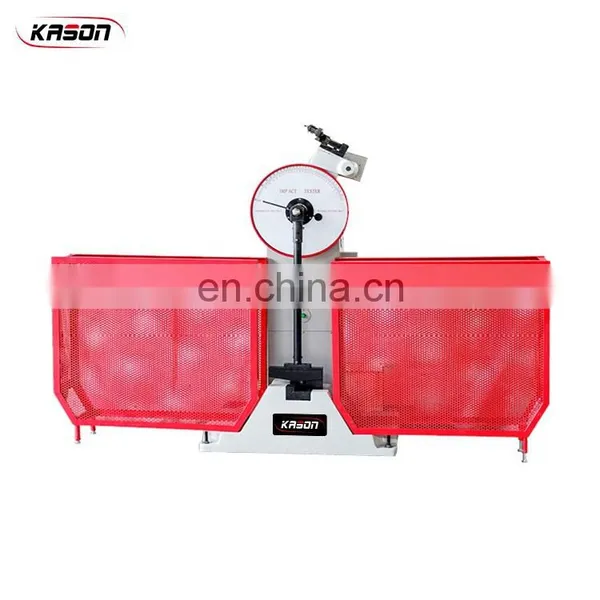

ISO 179 ISO 180 ASTM D256 Kason Customized Metal Cantilever Beam Pendulum Impact Strength Test Instrument
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2016
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Kason Automatic Testing Machinery Projector Specimen Charpy Impact Tester for SaleNegotiableMOQ: 1 -
Kason Izod Pendulum for Charpy Impact Tester ManufacturerNegotiableMOQ: 1
-
Kason Iso179 Iso 180 Astm D256 300j Pendulum Charpy Impact Tester for SaleNegotiableMOQ: 1
-
Kason Iso148 Pendulum Impact Tester Projector for Charpy SpecimenNegotiableMOQ: 1
-
Kason Izod Automatic Testing Machinery Iso148 Charpy Impact TesterNegotiableMOQ: 1
ISO 179 ISO 180 ASTM D256 Kason Customized Metal Cantilever Beam Pendulum Impact Strength Test Instrument
Product Description
Technical Specifications:
|
Model |
JB-300B |
JB-500B |
JB-750B |
|
|
Impact Energy |
300 J , 150 J |
500 J , 250 J |
500 J / 750 J |
|
|
Control Methods |
Electric Control |
|||
|
The Distance Between The Pendulum Shaft And Impact Point |
750 mm |
800 mm |
||
|
Minimum Reading Value |
1 J |
2 J |
||
|
Impact Speed |
5.2 m/s |
5.4 m/s |
5.9 m/s |
|
|
Pre-rising Angle Of The Pendulum |
150° |
|||
|
Specimen Bearer Span |
40+0.2 mm |
|||
|
Impact Pendulum Configuration |
150 J, 1 PC; 300 J, 1 PC |
250 J, 1 PC; 500 J, 1 PC |
500 J, 1 PC; 750 J, 1 PC |
|
|
Standard Specimen Dimension |
10 mm * 10 (7.5 or 5) mm * 55 mm |
|||
|
Power Supply |
3phs, 380V, 50Hz |
|||
|
Dimensions |
2124mm * 600mm * 1340mm |
2450mm*1200mm *2455mm |
||
|
Net Weight |
450 KG |
580 KG |
2300 KG |
|
