CST-50 Impact Specimen u/v Notch Profile Projector Measuring Profile Projector





Product Description







CST-50 Impact Specimen u/v Notch Profile Projector Measuring Profile Projector

1. Application

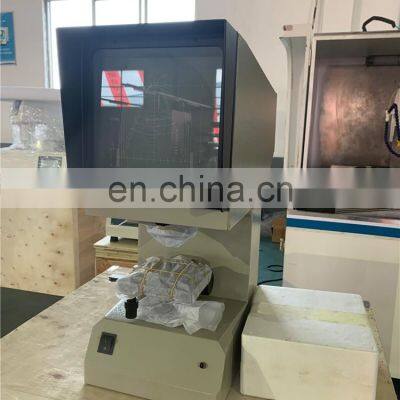

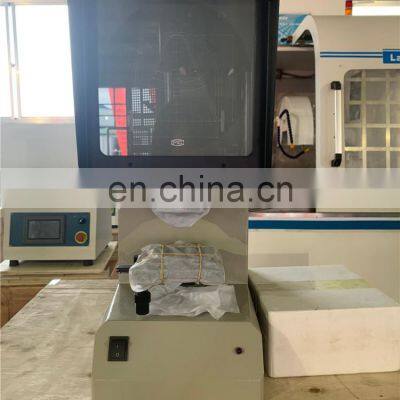

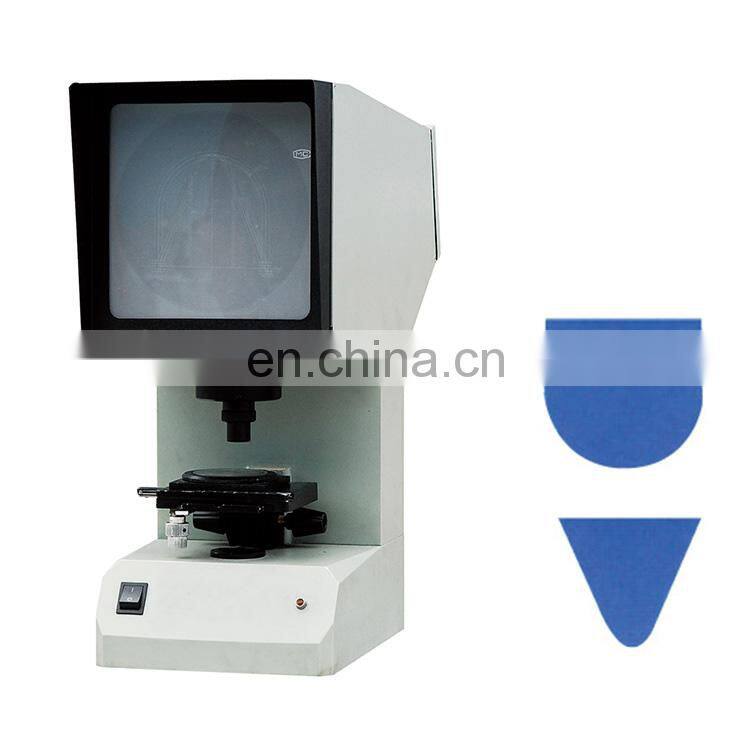

CTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.



2. Main Technical Parameters

Diameter of the Screen

200mm

Magnification of the instrument

50X

Objective magnification

2.5X

Working table square shape

110x125mm

Diameter of round worktable

90mm

Diameter of working screen

70mm

Stroke of working table

Longitude: ±10mm,Latitude: ±10mm,

Rise and fall: ±12mm

Eye-field diameter

              3.8mm

Working distance

              22.89mm

Scope of revolving of the worktable

360°

Power supply

220V,50HZ,150W

Dimension

515×224×603mm

Light source(tungsten halogen lamp)

12V,100W

Weight

18kg
